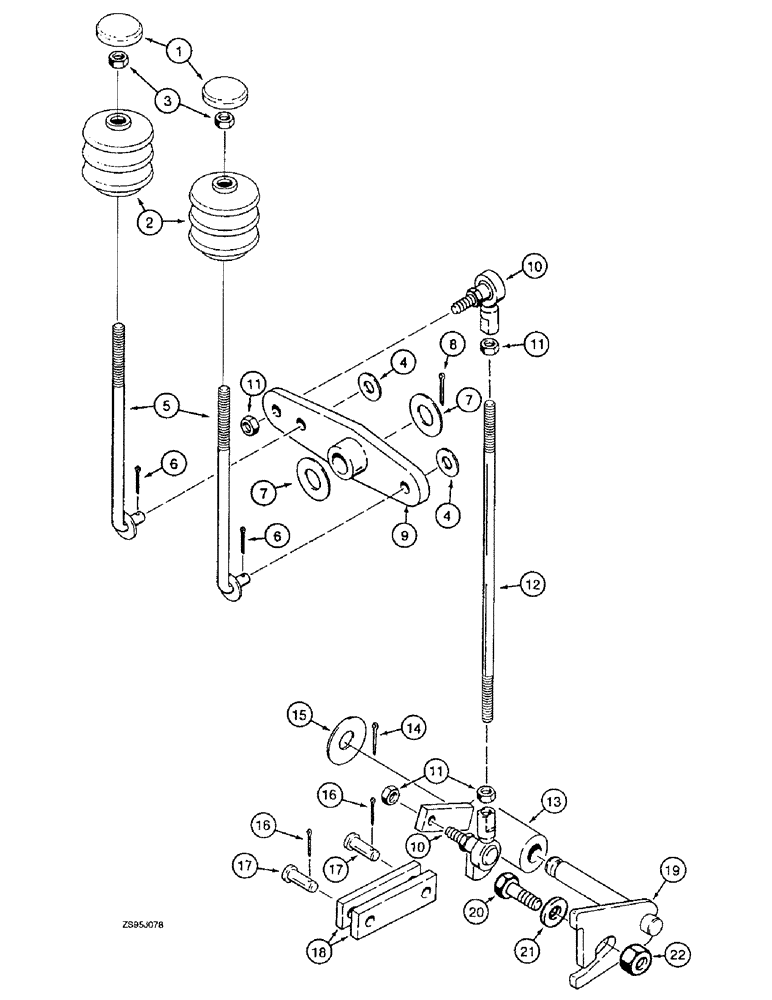

Запчасти Case 550E (6-50) - TRANSMISSION RANGE SHIFT CONTROL (06) - POWER TRAIN

1

R57963

PEDAL

- range shift control

2шт.

2

D141049

BOOT

- pedal

2шт.

3

425-106

NUT,3/8"-16, Cl 5

2шт.

4

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

5

R58478

ROD

-, Serial Range: pedal-bellcranck

2шт.

6

32-610

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

2шт.

7

895-11020

WASHER,M20 x 37 x 3

- flat, 22 x 37 x 3 mm

2шт.

8

32-1220

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

9

R58623

LEVER

BELLCRANK - range shift control

1шт.

10

R47940

BALL JOINT

JOINT - ball, 3/8 inch NF, control lever

2шт.

11

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

4шт.

12

S224930

STUD

ROD - to range shift lever

1шт.

13

R58567

LEVER

- range shift control

1шт.

14

32-1016

COTTER PIN

PIN - cotter, 5/32 x 1 inch

1шт.

15

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

1шт.

16

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

17

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, , Hardened 3/8" x 1 1/16"

2шт.

18

R53701

LINK

- range control lever

2шт.

19

100729A1

SHAFT

- range shift control

1шт.

20

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

21

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

1шт.

22

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

1шт.
