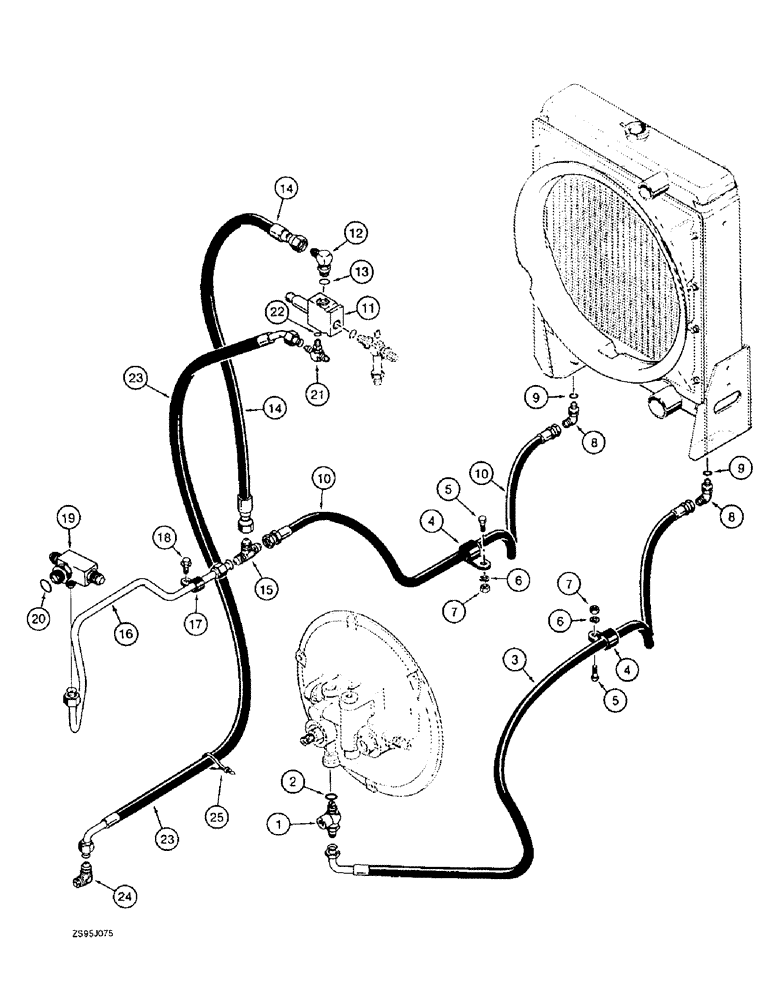

Запчасти Case 550E (6-42) - TRANSMISSION HYDRAULIC CIRCUIT, COOLING SYSTEM (06) - POWER TRAIN

1

R56771

FITTING

TEE - special, see figure 4-12 for converter temperature gauge

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

R57654

HOSE ASSY.

HOSE - 57 inch (1446 mm) long, Serial Range: converter-cooler

1шт.

4

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

P-type 1 1/8", Insul, 3/8" Bolt

2шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

6

492-11038

LOCK WASHER,3/8"

2шт.

7

425-106

NUT,3/8"-16, Cl 5

2шт.

8

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss

2шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

10

R57655

HOSE ASSY.

HOSE - 41-3/4 inch (1060 mm) long, cooler return at cooler

1шт.

11

R57597

VALVE

- pressure sensing, component parts not serviced separately, may order S301087 seal kit below for service of external O-rings

1шт.

12

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 7/8-14 flare x 3/4-16 inch adj O-ring boss, adj O-ring

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

R57652

HOSE ASSY.

HOSE - 22-3/4 inch (575 mm) long, pressure sensing, Serial Range: valve-tee

1шт.

15

218-1580

TEE,37º, 1 1/16"-12 x 7/8"-14, Br

- 7/8-14 flare branch x 1-1/16-12 inch flare x flare

1шт.

16

R58823

TUBE,19.05 mm OD

- cooler return at transmission

1шт.

17

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type 3/4", Insul, 3/8" Bolt

1шт.

18

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- hex flange, 3/8 NC x 3/4 inch, grade 8

1шт.

19

1997012C1

TEE

FITTING - special, included with transmission assembly, see figure 6-26 or 6-28, ref 30

1шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

21

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 9/16-18 inch adj O-ring branch x flare x flare

1шт.

23

R34863

HOSE

- 35 inch (889 mm) long, pressure sensing, Serial Range: valve-transmission

1шт.

24

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

1шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

S301087

SEAL KIT

KIT - seal repair, contains three O-rings and two backup rings which are not serviced separately

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
