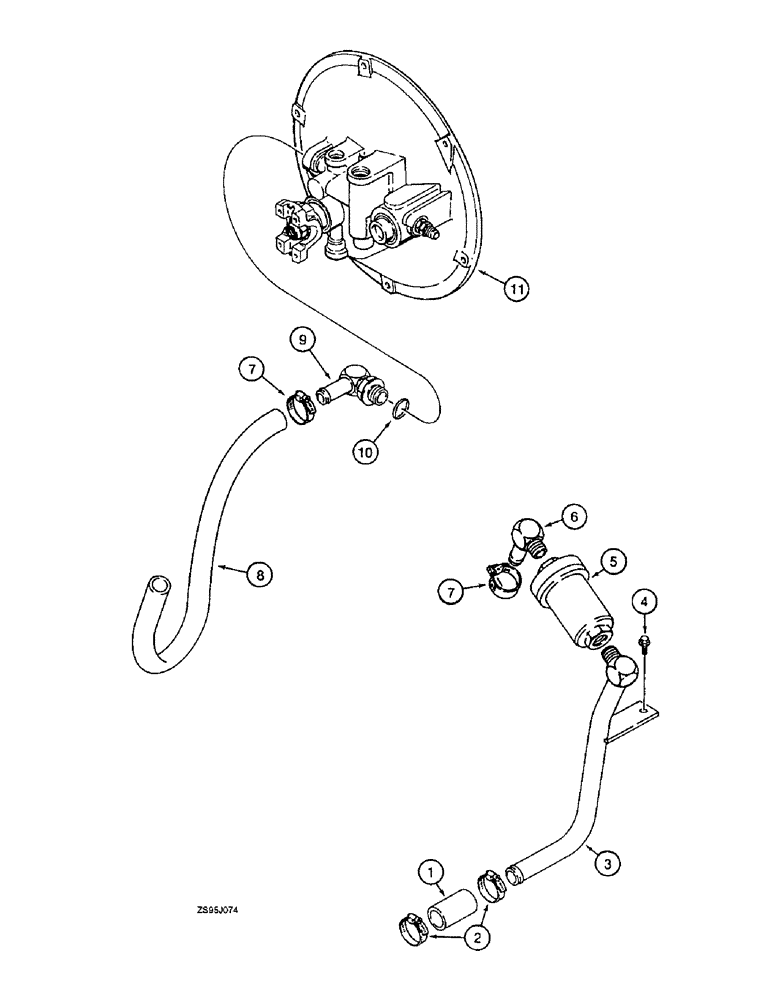

Запчасти Case 550E (6-40) - TRANSMISSION HYDRAULIC CIRCUIT, TRANSMISSION SUCTION LINE (06) - POWER TRAIN

1

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- cut from S118465X bulk hose, see below, suction line at transmission 31.80 mm ID x 101.60 mm ID, SAE 100R3

1шт.

2

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

CLAMP - adj, 1-1/4 - 2-1/8 inch dia

2шт.

3

R58825

TUBE,31.75 mm OD

- suction line, transmission to filter, bracket bolts to main frame

1шт.

4

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- hex flange, 3/8 NC x 3/4 inch, grade 8, Teflon coated

1шт.

5

D35144

FILTER

FILTER ASSEMBLY - transmission oil suction line, parts list figure 6-44

1шт.

6

R57811

FITTING

ELBOW - 90 degree, special, at suction filter

1шт.

7

214-3128

HOSE CLAMP,1" - 1-7/8", HD Worm

CLAMP - adj, 1 - 1-7/8 inch dia

2шт.

8

D23886

HOSE

- 17 inch (432 mm) long, cut from S118383X bulk hose, suction, Serial Range: filter-converter

1шт.

9

R56769

FITTING

ELBOW - stem, special, at torque converter

1шт.

10

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk

1шт.

11

1348881C2

CONVERTER

HOUSING ASSEMBLY - torque converter, parts list figure 6-4, pressure line hydraulics on figure 6-38

1шт.

S118465X

LARGE HOSE

HOSE - bulk, 1-1/4 (32) x 1-3/4 (45) x 180 inch (4572 mm) long

1шт.

S118383X

LARGE HOSE

HOSE - bulk, 1 (25) x 1-1/2 (38) x 192 inch (4877 mm) long

1шт.
