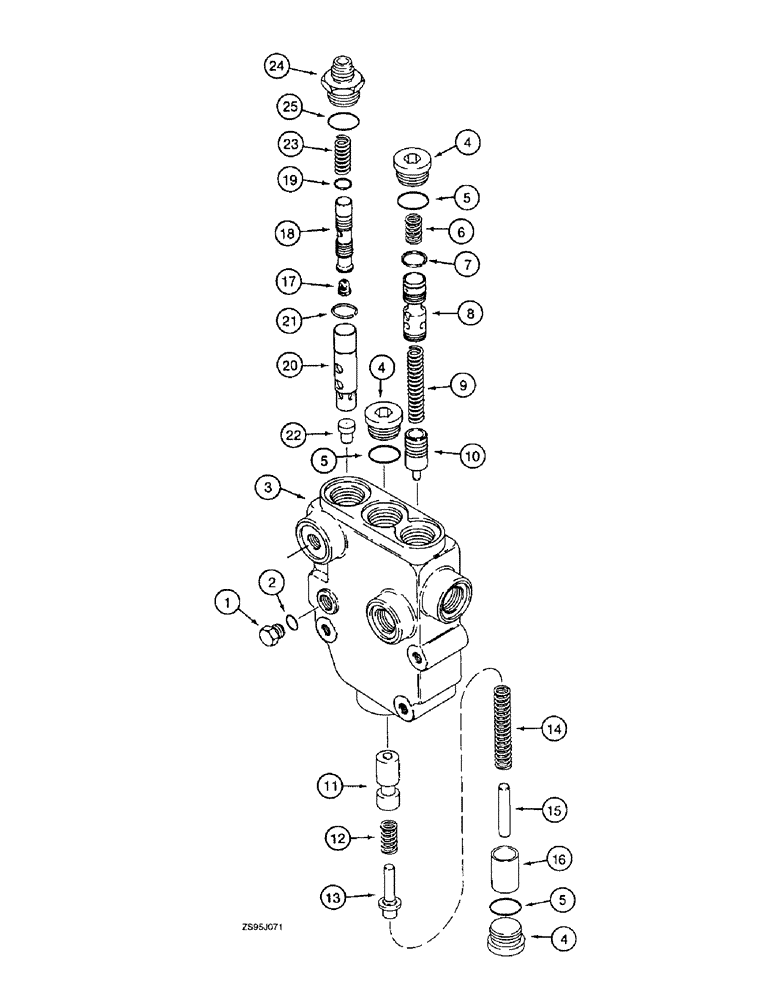

Запчасти Case 550E (6-34) - TRANSMISSION MODULATOR VALVE ASSEMBLY (06) - POWER TRAIN

1346352C2

VALVE

ASSEMBLY - modulator, for transmissions 1342916C2 and 1342918C2, see figure 6-8, used with transmission control valve 1542619C1, see figure 6-30

1шт.

1

9672438

PLUG,7/16" - 20 ORB

2шт.

2

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

4

9841223

PLUG,1-1/16" - 12 ORB

3шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

6

1986559C1

SPRING

- track modulation spool

1шт.

7

1986970C1

CIRCLIP

RING - retaining

1шт.

8

1346348C1

SPOOL

- track modulation

1шт.

9

1986558C1

SPRING

- track unloading

1шт.

10

G106555

VALVE POPPET

POPPET - unloading, track spool

1шт.

11

1542519C1

SPOOL

- modulator

1шт.

12

1542860C1

SPRING

- modulator spool

1шт.

13

G107531

GUIDE

- spring

1шт.

14

1346480C1

SPRING

- modulator

1шт.

15

G107529

PIN

- stop

1шт.

16

G107530

PISTON

- modulator

1шт.

17

133519C1

SCREEN

- filter

1шт.

18

1986972C2

SPOOL

- flow sensing

1шт.

19

1986971C1

CIRCLIP

RING - retaining, flow sensing spool, 13.5 mm ID

1шт.

20

1986968C2

SPOOL

SLEEVE - flow sensing spool

1шт.

21

1986970C1

CIRCLIP

RING - retaining, sleeve, 18 mm ID

1шт.

22

1986969C2

VALVE POPPET

PLUG - orifice

1шт.

23

1986973C1

SPRING

- flow sensing

1шт.

24

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 3/4-16 flare x 1-1/16-12 inch O-ring boss, 3/4-16 flare x 1-1/16-12 O-ring

1шт.

25

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.
