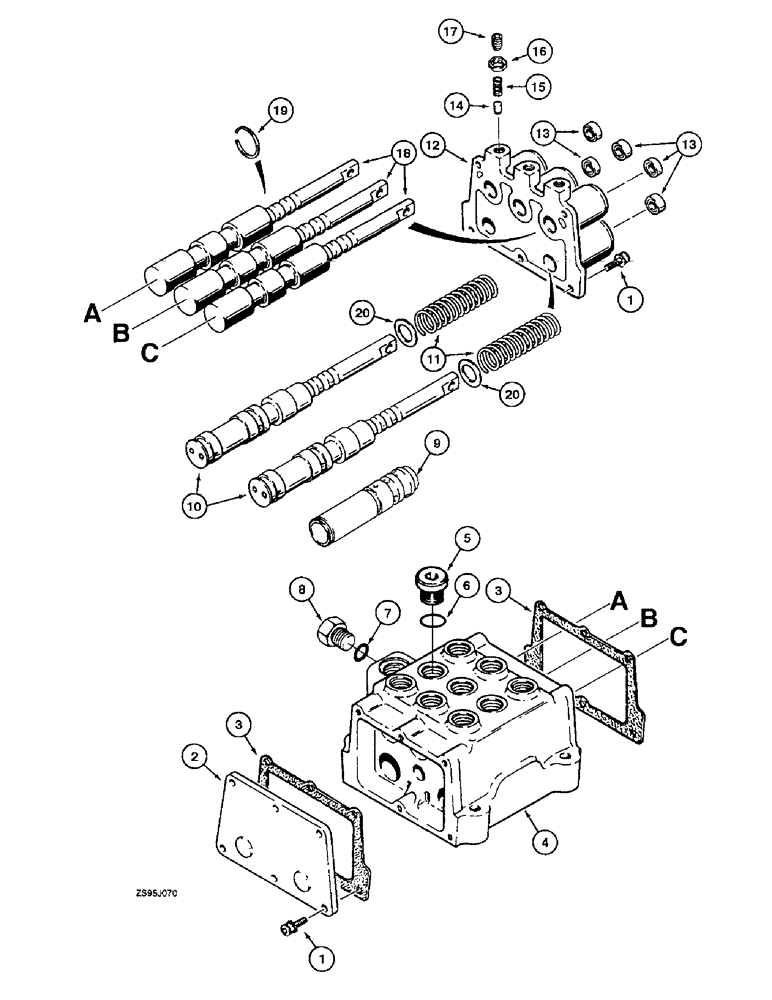

Запчасти Case 550E (6-32) - TRANSMISSION CONTROL VALVE ASSEMBLY, * WITH MODULATOR (06) - POWER TRAIN

125588A4

VALVE

ASSEMBLY - transmission control, for transmissions 130727A1 and 130728A1, see figure 6-8

1шт.

1

193-511

HEX SOC SCREW,Sems, 1/4"-28 x 5/8"

SCREW - external tooth lock, 1/4 NF x 5/8 inch, with lock washer

11шт.

2

R21384

COVER

- rear

1шт.

3

35665

GASKET

- cover

2шт.

4

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

PLUG - hex socket, 7/16-20 inch O-ring boss

3шт.

6

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

7

86529630

PLUG,Hex Soc, 3/8"-24 ORB

1шт.

8

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

9

126430A3

SPOOL

ASSEMBLY - forward/reverse modulation, parts list figure 6-36

1шт.

10

1542596C1

SPOOL

ASSEMBLY - clutch cutout, parts list figure 6-38

2шт.

11

121865A2

SPRING - clutch cutout spool

2шт.

1542672C1

COVER

ASSEMBLY - front

1шт.

12

NSS

NOT SOLD SEPARAT

COVER - front

1шт.

13

G105700

OIL SEAL

- oil, double lip

5шт.

14

71120

VALVE

PIN - dowel

3шт.

15

1542824C1

SPRING

- poppet, detent

3шт.

16

131-407

LOCK NUT,Pal, 3/8" - 16, 0.145" High

NUT - hex, self-locking, 3/8"-16 NC

3шт.

17

G104208

SET SCREW

SCREW - set, special, hex socket, oval point, sealant coated

3шт.

18

G107659

ROD

SPOOL ASSEMBLY - shift

3шт.

19

G107637

RING, SNAP

RING - retaining, shift spool

1шт.

20

495-81175

WASHER,21/32" x 1" x .120"

if used 21/32" x 1" x .120"

2шт.
