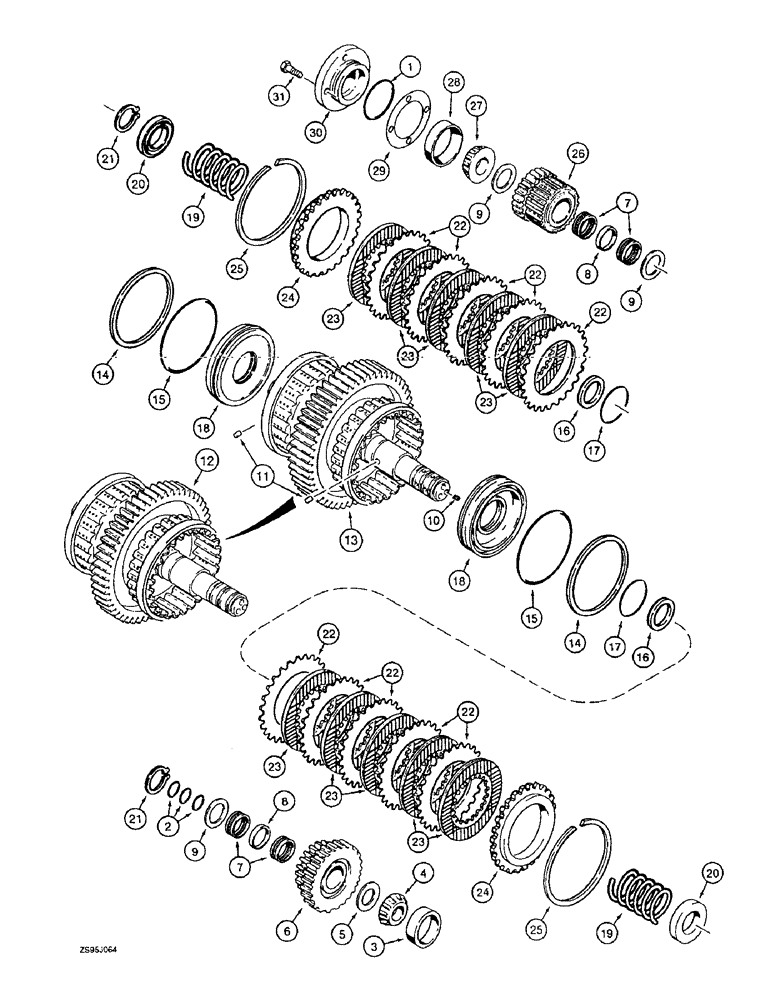

Запчасти Case 550E (6-16) - TRANSMISSION HIGH-LOW CLUTCHES AND SHAFTS (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see figure 6-8.

1шт.

1

238-5151

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

2шт.

Part of KIT, part number 138971A1

1шт.

2

A175509

SEALING RING,32.81mm ID x 36.13mm OD x 2.38mm Thk

RING - seal

6шт.

Part of KIT, part number 138971A1

1шт.

3

G100312

BEARING, CUP,85mm OD x 19.05mm W

CUP - tapered roller bearing

2шт.

4

3131513R91

ROLLER BEARING

- tapered roller

2шт.

5

A175396

WASHER, THRUST,36.6mm ID x 60mm OD x 2.3mm Thk

WASHER - thrust

2шт.

6

1997063C1

GEAR

- drive, high, 29/40 teeth

2шт.

7

A178460

NEEDLE BEARING,44.99mm ID x 50.02mm OD x 16.8mm W

BEARING - needle

8шт.

8

A188194

RING,46.25mm ID x 49.8mm OD x 6.38mm Thk

- inner

4шт.

9

A188192

WASHER, THRUST,45.05mm ID x 64.94mm OD x 2.05mm Thk

WASHER - thrust

6шт.

1997047C2

CLUTCH HOUSING

CLUTCH ASSEMBLY - high/low, with shaft and gear, 51 (17 mm wide) teeth, left hand

1шт.

1997046C2

CLUTCH HOUSING

CLUTCH ASSEMBLY - high/low, with shaft and gear, 51 (42 mm wide) teeth, right hand

1шт.

10

83-3446

SET SCREW,Hex Soc, 7/16"-14 x 3/8"

SCREW - set, hex socket headless, 7/16 NC x 3/8 inch, flat point, hex socket, use Loctite

2шт.

11

38-3605

PIN,3/32" x 5/16", Coiled

2шт.

12

1348993C2

SHAFT

- high/low clutch, with gear and clutch housings, 51 (17 mm wide) teeth, left hand

1шт.

13

1348991C2

SHAFT

- high/low clutch, with gear and clutch housings, 51 (42 mm wide) teeth, right hand

1шт.

14

A158051

SEAL,116.49mm ID x 123.91mm OD x 3.07mm Thk

- piston, external

2шт.

Part of KIT, part number 138971A1

1шт.

15

238-5156

O-RING,0.103" Thk x 4.237" ID, -156, Cl 5, 75 Duro

Piston, external -156, 70 Duro, 4.237" ID x .103" Thk

2шт.

Part of KIT, part number 138971A1

1шт.

16

A159297

SEAL,47.2mm ID x 54.1mm OD x 3.1mm Thk

SEAL - piston, internal

2шт.

Part of KIT, part number 138971A1

1шт.

17

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

Piston, internal -137, 90 Duro, 2.05" ID x .103" Thk

2шт.

Part of KIT, part number 138971A1

1шт.

18

A159292

PISTON

- clutch

2шт.

19

A188080

SPRING

- return

2шт.

20

A188044

RETAINER

- spring

2шт.

21

100-16175

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

2шт.

22

A175806

PLATE

- clutch, separator

10шт.

23

A188946

DRIVE PLATE,81.9mm ID x 127mm OD x 2.6mm Thk

PLATE - clutch, friction

10шт.

24

137720A1

PLATE

- clutch, backing

2шт.

25

A158227

CIRCLIP

RING - retaining, internal, clutch backing plate, for transmissions 1342916C2 and 1342918C2, see figure 6-8.

1шт.

25

139987A1

SNAP RING,126.34mm ID x 142.4mm OD x 2.82mm Thk

RING - retaining, internal, clutch backing plate, for transmissions 130727A1 and 130728A1, see figure 6-8.

1шт.

26

1997064C1

GEAR

- drive, low, 20/40 teeth

2шт.

27

G100313

BEARING CONE,34.92mm ID x 20.64mm W

BEARING - tapered roller, clutch shaft, rear

2шт.

28

A50264

BEARING CUP,72mm OD x 14.2mm W

CUP - tapered roller bearing, rear

2шт.

29

G103645

SHIM,.003" Thk

(0.076 mm) .003" Thk

1шт.

Part of KIT, part number 138971A1

1шт.

29

G103647

SHIM,.010" Thk

(0.254 mm) .010" Thk

1шт.

Part of KIT, part number 138971A1

1шт.

29

1348980C1

BLOCK

SHIM - 0.020 inch (0.508 mm) thick

1шт.

Part of KIT, part number 138971A1

1шт.

30

G103644

COVER ASSY

COVER - shaft

2шт.

31

107-9620

LOCK BOLT,Locking, 3/8"-16 x 1 1/4", G8

BOLT, Locking, 3/8-16 x 1 1/4", G8

8шт.

138971A1

SEAL KIT

KIT - seal, transmission, Includes: Refs. 1, 2, 14-17, and 29.

1шт.
