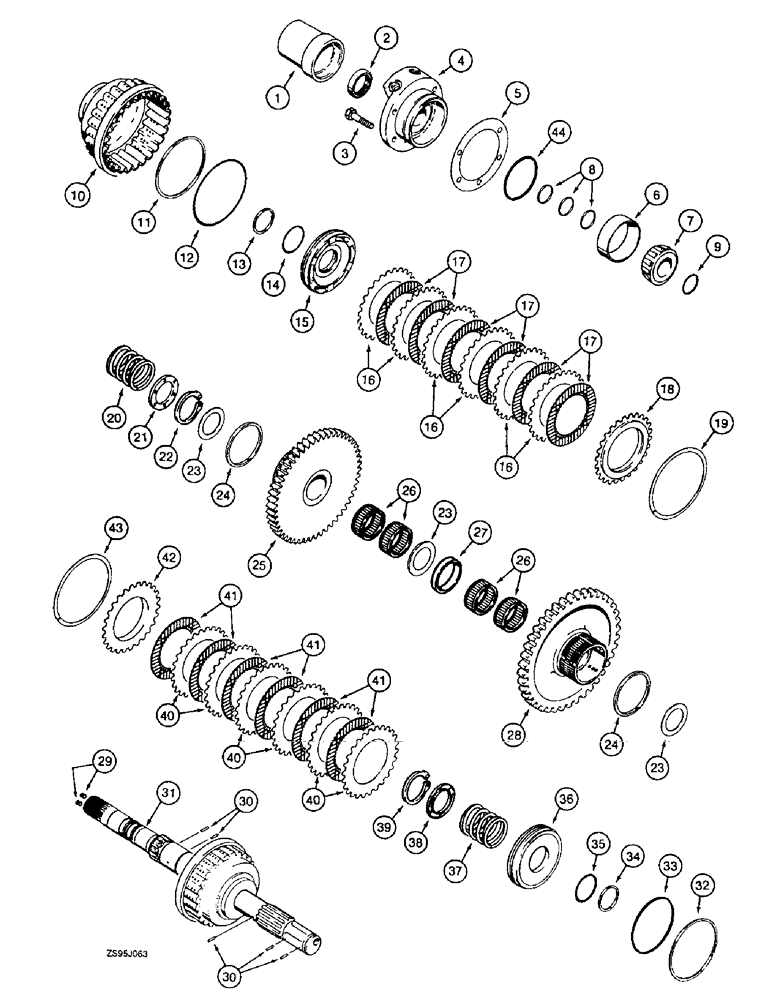

Запчасти Case 550E (6-12) - TRANSMISSION MAIN SHAFT AND FORWARD-REVERSE CLUTCHES (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see Figure 6-08 for correct assembly

1шт.

1

G101696

PROTECTIVE COVER

COVER - mainshaft, rear

1шт.

2

A54107

OIL SEAL,38.1mm ID x 8mm Thk

- oil, mainshaft, cover

1шт.

Part of KIT, part number 138971A1

1шт.

3

107-9620

LOCK BOLT,Locking, 3/8"-16 x 1 1/4", G8

BOLT, Locking, 3/8-16 x 1 1/4", G8

5шт.

4

1997065C1

SEAL RETAINER

RETAINER - bearing, mainshaft

1шт.

5

1997066C1

SHIM

- 0.076 mm thick

1шт.

Part of KIT, part number 138971A1

1шт.

5

1997067C1

SHIM

- 0.178 mm thick

1шт.

Part of KIT, part number 138971A1

1шт.

5

1997068C1

SHIM

- 0.254 mm thick

1шт.

Part of KIT, part number 138971A1

1шт.

6

G109317

BEARING CUP

CUP - tapered roller bearing

1шт.

7

1342259C1

ROLLER BEARING,38.113 mm ID x 30.467 mm

- tapered roller

1шт.

8

1348976C1

SEAL

RING - seal (Replaces 1348976C2)

3шт.

Part of KIT, part number 138971A1

1шт.

9

238-5324

O-RING,0.21" Thk x 1.35" ID, -324, Cl 5, 75 Duro

-324, 70 Duro, 1.35" x .210" Thk

1шт.

Part of KIT, part number 138971A1

1шт.

1997048C2

CLUTCH HOUSING

CLUTCH ASSEMBLY - forward, with hub

1шт.

10

1997003C2

HUB

HOUSING - clutch, with hub

1шт.

11

A158051

SEAL,116.49mm ID x 123.91mm OD x 3.07mm Thk

- piston, to clutch housing

1шт.

Part of KIT, part number 138971A1

1шт.

12

238-5156

O-RING,0.103" Thk x 4.237" ID, -156, Cl 5, 75 Duro

Piston -156, 70 Duro, 4.237" ID x .103" Thk

1шт.

Part of KIT, part number 138971A1

1шт.

13

A159295

SEAL,44.2mm ID x 50.7mm OD x 3.1mm Thk

-, Serial Range: piston,-mainshaft

1шт.

Part of KIT, part number 138971A1

1шт.

14

238-5135

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

- 2-1/16 ID x 3/32 inch wide, to mainshaft

1шт.

Part of KIT, part number 138971A1

1шт.

15

A159239

PISTON

- forward clutch

1шт.

16

A175806

PLATE

- clutch

6шт.

17

A188946

DRIVE PLATE,81.9mm ID x 127mm OD x 2.6mm Thk

PLATE - clutch, friction

6шт.

18

137720A1

PLATE

- clutch, backing

1шт.

19

A158227

CIRCLIP

RING - retaining, internal, clutch backing plate, for transmissions 1342916C2 and 1342918C2, see figure 6-8.

1шт.

19

139987A1

SNAP RING,126.34mm ID x 142.4mm OD x 2.82mm Thk

RING - retaining, internal, clutch backing plate, for transmissions 130727A1 and 130728A1, see figure 6-8.

1шт.

20

A188080

SPRING

-forward clutch, return

1шт.

21

A188044

RETAINER

- clutch return spring

1шт.

22

100-16175

SNAP RING,#175, Ext

Ring, Snap, , Clutch #175, Ext

1шт.

23

A188192

WASHER, THRUST,45.05mm ID x 64.94mm OD x 2.05mm Thk

WASHER - thrust, forward and reverse gears

3шт.

24

1995174C1

SEALING RING

SEAL - to forward and reverse gears

2шт.

Part of KIT, part number 138971A1

1шт.

25

1997062C1

GEAR

- forward clutch, 51 teeth

1шт.

26

A178460

NEEDLE BEARING,44.99mm ID x 50.02mm OD x 16.8mm W

BEARING - needle

4шт.

27

A183452

THRUST BEARING,45.05mm ID x 66.85mm OD x 3.85mm W

BEARING - thrust, between gears

1шт.

28

1997061C1

GEAR

- reverse clutch, 56 teeth, for transmissions 1342916C2 and 1342918C2, see figure 6-8.

1шт.

28

1997103C1

GEAR

- reverse clutch, 56 teeth, for transmissions 130727A1 and 130728A1, see figure 6-8.

1шт.

1997045C2

SHAFT

ASSEMBLY - main, with reverse clutch

1шт.

29

83-3446

SET SCREW,Hex Soc, 7/16"-14 x 3/8"

SCREW - set, hex socket headless, 7/16 NC x 3/8 inch, flat point, use Loctite

2шт.

30

38-3605

PIN,3/32" x 5/16", Coiled

5шт.

31

1997001C2

HUB

SHAFT - main, with reverse clutch housing

1шт.

32

A158051

SEAL,116.49mm ID x 123.91mm OD x 3.07mm Thk

- piston, to clutch housing

1шт.

Part of KIT, part number 138971A1

1шт.

33

238-5156

O-RING,0.103" Thk x 4.237" ID, -156, Cl 5, 75 Duro

Piston -156, 70 Duro, 4.237" ID x .103" Thk

1шт.

Part of KIT, part number 138971A1

1шт.

34

A159297

SEAL,47.2mm ID x 54.1mm OD x 3.1mm Thk

SEAL -, Serial Range: piston,-mainshaft

1шт.

Part of KIT, part number 138971A1

1шт.

35

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

Piston -137, 90 Duro, 2.05" ID x .103" Thk

1шт.

Part of KIT, part number 138971A1

1шт.

36

A159292

PISTON

- clutch

1шт.

37

A188080

SPRING

- return

1шт.

38

A188044

RETAINER

- spring

1шт.

39

100-16175

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

1шт.

40

A175806

PLATE

- clutch, separator

6шт.

41

A188946

DRIVE PLATE,81.9mm ID x 127mm OD x 2.6mm Thk

PLATE - clutch, friction

6шт.

42

137720A1

PLATE

- clutch, backing

1шт.

43

A158227

CIRCLIP

RING - retaining, internal, for transmissions 1342916C2 and 1342918C2, see figure 6-8.

1шт.

43

139987A1

SNAP RING,126.34mm ID x 142.4mm OD x 2.82mm Thk

RING - retaining, internal, for transmissions 130727A1 and 130728A1, see figure 6-8.

1шт.

44

238-5154

O-RING,0.103" Thk x 3.737" ID, -154, Cl 5, 75 Duro

1шт.

Part of KIT, part number 138971A1

1шт.

138971A1

SEAL KIT

KIT - seal, transmission, Includes: Refs. 2, 5, 8, 9, 11-14, 24, 32-35, and 44

1шт.
