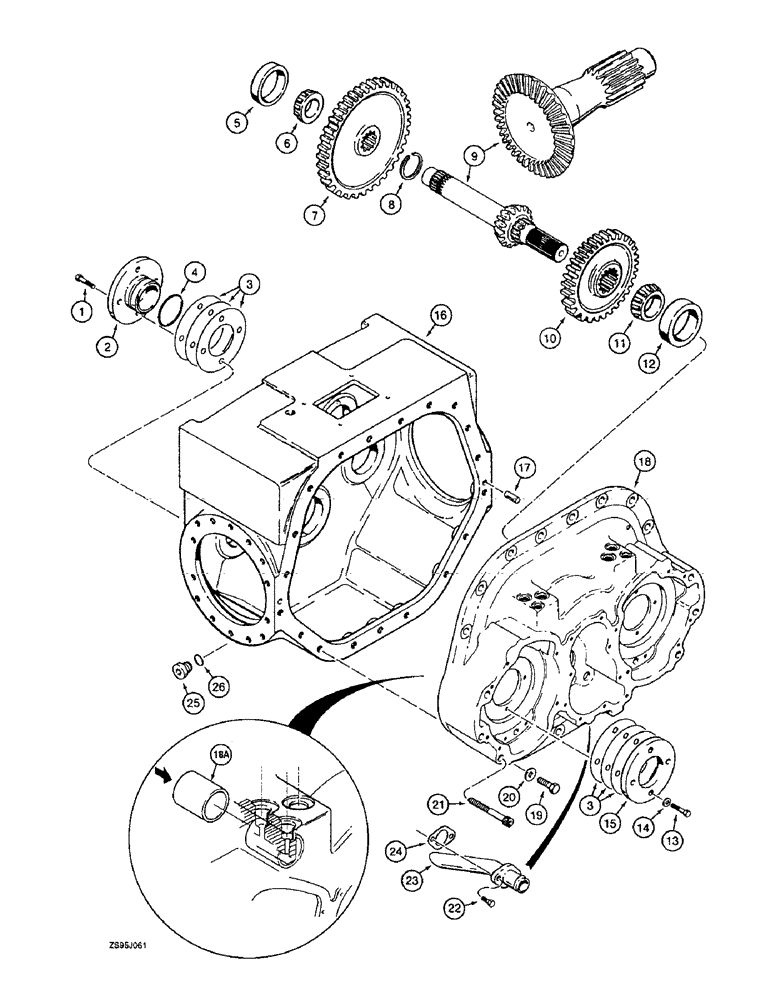

Запчасти Case 550E (6-08) - TRANSMISSION HOUSING, BEVEL PINION SHAFT AND GEAR (06) - POWER TRAIN

1342916C2

TRANSMISSION

1шт.

TRANSMISSION ASSEMBLY - 53 inch (1346 mm) gauge long track models, without modulator in transmission control valve, see figures 6-8 - 6-26 and 7-6 (used on P.I.N. JJG0214705 and before, and on P.I.N. JJG0214716, and on P.I.N.\xd5 s JJG0214733 through JJG0214736)

1шт.

1342918C2

TRANSMISSION

1шт.

TRANSMISSION ASSEMBLY - 64 inch (1627 mm) gauge LGP models, without modulator in transmission control valve, see figures 6-8 - 6-26 and 7-6 (used on P.I.N. JJG0214705 and before, and on P.I.N. JJG0214716, and on P.I.N.\xd5 s JJG0214733 through JJG0214736)

1шт.

130727A1

TRANSMISSION

1шт.

TRANSMISSION ASSEMBLY - 53 inch (1346 mm) gauge long track models, with modulator in transmission control valve, see figures 6-8 - 6-26 and 7-6 (used on P.I.N.\xd5 s JJG 0214706 through JJG0214715, and on P.I.N.\xd5 s JJG0214717 through JJG0214732, and on P.I.N.\xd5 s JJG0214737 and after)

1шт.

130728A1

TRANSMISSION

1шт.

TRANSMISSION ASSEMBLY - 64 inch (1627 mm) gauge LGP models, with modulator in transmission control valve, see figures 6-8 - 6-26 and 7-6 (used on P.I.N.\xd5 s JJG 0214706 through JJG0214715, and on P.I.N.\xd5 s JJG0214717 through JJG0214732, and on P.I.N.\xd5 s JJG0214737 and after)

1шт.

1

107-9620

LOCK BOLT,Locking, 3/8"-16 x 1 1/4", G8

BOLT, Locking, 3/8-16 x 1 1/4", G8

8шт.

2

G103644

COVER ASSY

COVER - shaft

2шт.

3

G103645

SHIM,.003" Thk

(0.076 mm) .003" Thk

1шт.

Part of KIT, part number 138971A1

1шт.

3

G103647

SHIM,.010" Thk

(0.254 mm) .010" Thk

1шт.

Part of KIT, part number 138971A1

1шт.

3

1348980C1

BLOCK

SHIM - 0.020 inch (0.504 mm) thick

1шт.

Part of KIT, part number 138971A1

1шт.

4

238-5151

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

2шт.

Part of KIT, part number 138971A1

1шт.

5

A50264

BEARING CUP,72mm OD x 14.2mm W

CUP - tapered roller bearing

2шт.

6

A26719

ROLLER BEARING,38.1mm ID x 20.64mm W

BEARING - tapered roller

2шт.

7

G103778

GEAR

- 51 teeth, driven, low clutch, rear

2шт.

8

A27085

RING

- retaining, low clutch gear

2шт.

9

1348973C1

GEAR, BEVEL

GEAR AND SHAFT - pinion, matched set

2шт.

Ref item #9 1348973C1 has an informational service bulletin NCR SB 006 97 issued June 24, 1997 showing the various shaft markings and how to shim the shaft. by TSG bb 10/1/97

1шт.

10

1981357C1

PINION

GEAR - driven, 43 teeth, high clutch, front

2шт.

11

A31264

ROLLER BEARING,1.625" ID x 1"

BEARING - tapered roller, high clutch gear, front

2шт.

12

ST973

TAPERED BEARING,1.688" ID x 3.126" OD x 0.9515"

CUP - tapered roller bearing, front

2шт.

13

107-9620

LOCK BOLT,Locking, 3/8"-16 x 1 1/4", G8

BOLT, Locking, 3/8-16 x 1 1/4", G8

8шт.

14

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

8шт.

15

1348975C1

RETAINER

RETAINER - bearing, front

2шт.

16

1997054C1

HOUSING

- transmission, see sealant below

1шт.

17

37-1820

DOWEL,1/2" x 1 1/4"

PIN - dowel, 1/2 x 1-1/4 inch, hardened, front cover to housing

2шт.

18

1348959C2

COVER

- transmission, front, see sealant below

1шт.

18a

1348982C1

WEAR PLATE

SLEEVE - transmission cover, if used

1шт.

19

107-91028

LOCK BOLT,Locking, 5/8"-11 x 1 3/4", G8

BOLT, Locking, 5/8"-11 x 1 3/4", G8

13шт.

20

396-11066

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

- flat, 21/32 x 1-5/16 x 3/32 inch, hardened

13шт.

21

61-35064

HEX SOC SCREW,1/2"-13 x 4"

BOLT - hex socket, 1/2 NC x 4 inch

6шт.

22

107-9620

LOCK BOLT,Locking, 3/8"-16 x 1 1/4", G8

BOLT, Locking, 3/8-16 x 1 1/4", G8

2шт.

23

A50110

TUBE

- suction

1шт.

24

1981223C1

GASKET

- suction tube

1шт.

Part of KIT, part number 138971A1

1шт.

25

9841223

PLUG,1-1/16" - 12 ORB

1шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

Part of KIT, part number 138971A1

1шт.

B17555

LOCTITE

SEALANT - Gasket Eliminator No. 515, 50 ml tube

1шт.

B17556

LOCTITE

SEALANT - Gasket Eliminator No. 515, 300 ml tube

1шт.

138971A1

SEAL KIT

KIT - seal, transmission, Includes: Refs. 3, 4, 24, and 26

1шт.
