Запчасти Case 550E (6-06) - TRANSMISSION MOUNTING, BREATHER, AND DIPSTICK (06) - POWER TRAIN

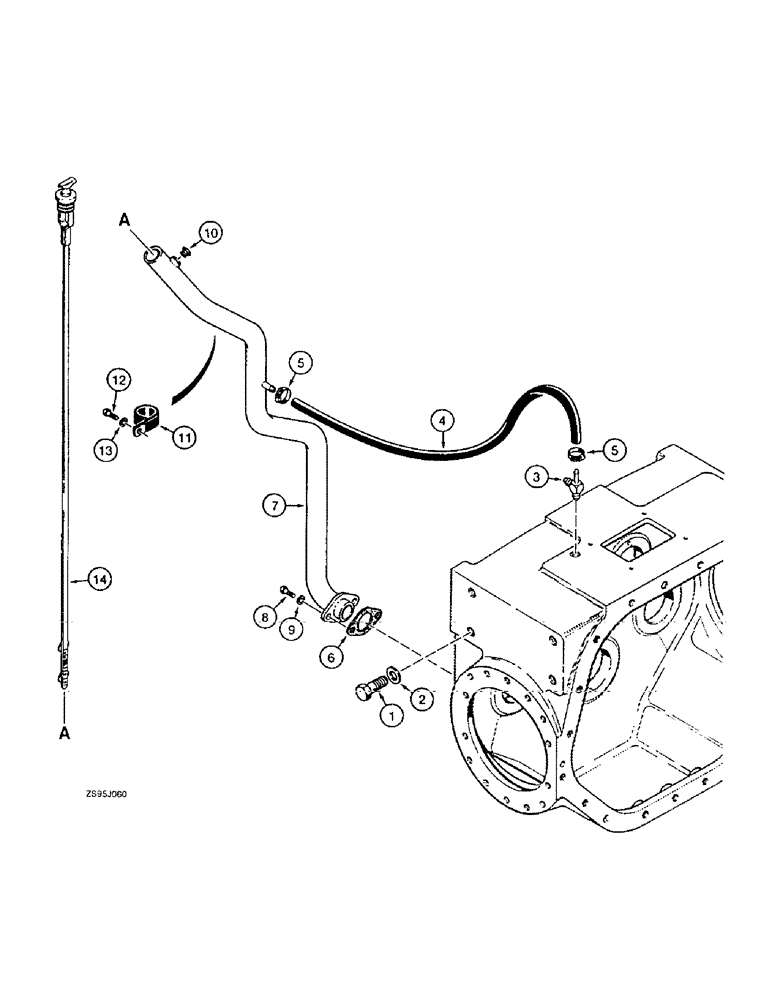

Схема запчастей Case 550E - (6-06) - TRANSMISSION MOUNTING, BREATHER, AND DIPSTICK (06) - POWER TRAIN
7
1
a
a
4
5
9
3
2
6
14
10
12
11
13
8
5

Артикул

Название

Примечание

Количество

1

107-91228

LOCK BOLT,Locking, 3/4"-10 x 1 3/4", G8, Full Thd

BOLT, Locking, 3/4"-10 x 1 3/4 inch", G8

8шт.

2

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- flat, special, 20 x 44 x 6 mm, hardened

8шт.

3

1997075C1

FITTING

TEE - special, brake pump and breather hose

1шт.

4

H435604

FUEL HOSE,6.35 mm ID x 381.00 mm, SAE 30R6, SAE 30R7

Cut from Bulk Hose, Transmission Breather, See Below 6.35 mm ID x 381.00 mm, SAE 30R6, SAE 30R7

1шт.

5

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adj, 1/4 - 5/8 inch dia, hose

2шт.

6

R47073

GASKET

- dipstick tube

1шт.

Part of KIT, part number 138971A1

1шт.

7

R49304

TUBE,1.5" OD

- dipstick

1шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

9

492-11038

LOCK WASHER,3/8"

2шт.

10

D63543

BREATHER

- dipstick tube

1шт.

11

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

P-type, To hydraulic reservoir 1 1/2", Insul, 3/8" Bolt

1шт.

12

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

13

492-11038

LOCK WASHER,3/8"

1шт.

14

R52797

DIPSTICK

- transmission

1шт.

427683C1

HOSE,6.35mm ID x 7620mm L, SAE 30R7

- bulk, 1/4 (6) x 1/2 (13) x 600 inch (15240 mm) long

1шт.

138971A1

SEAL KIT

KIT - seal, transmission, Includes: Ref. 6

1шт.
