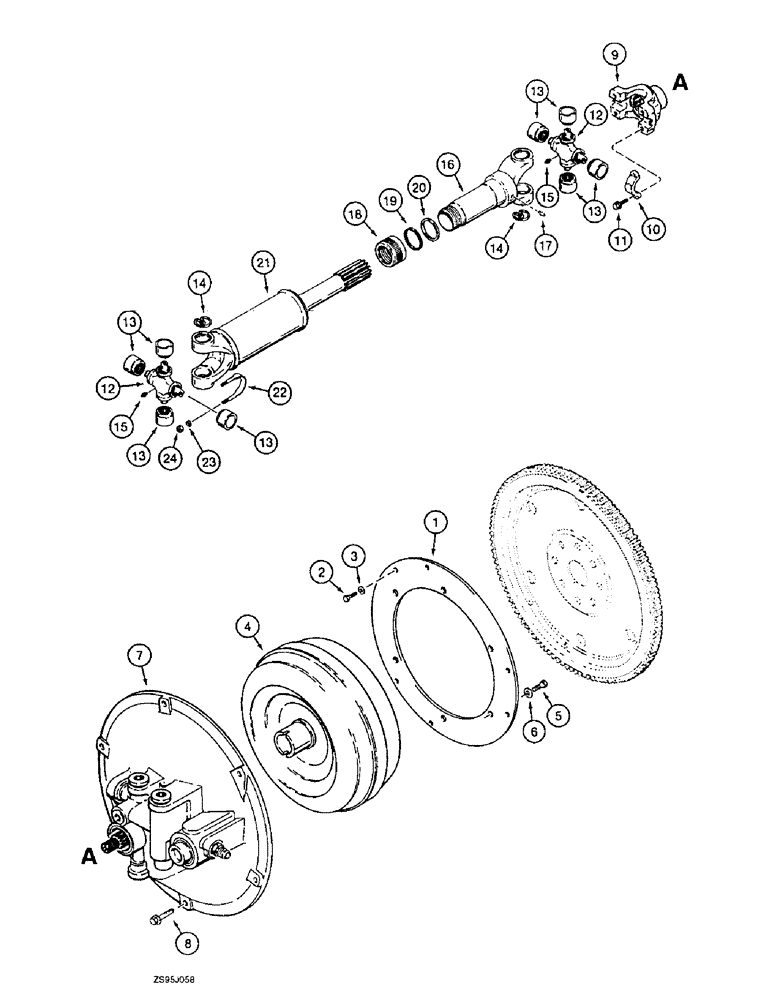

Запчасти Case 550E (6-02) - TORQUE CONVERTER, ADAPTER PLATE AND DRIVE SHAFT (06) - POWER TRAIN

1

A178706

PLATE

PLATE - adapter, torque converter to flywheel plate

1шт.

2

25978R1

BOLT,Hex, 5/16" - 24 x 5/8", Gr 8

BOLT - hex, 5/16 NF x 5/8 inch, grade 8, adapter plate to flywheel plate

6шт.

3

A15672

WASHER,8.74mm ID x 17.48mm OD x 1.52mm Thk

WASHER - flat, hardened, special

6шт.

4

1995137C1

CONVERTER

CONVERTER ASSEMBLY - torque, component parts not serviced separately

1шт.

4

1995137C1R

REMAN-TORQUE CONVERT

ER Reman - Torque Converter

1шт.

4

1995137C1C

CORE-TORQUE CONVERTR

Core-Torque Converter Return Part Number

1шт.

5

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

BOLT, Hex, M10 x 16, 8.8, Full Thd

6шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

WASHER - flat, 11 x 21 x 2 mm

6шт.

7

1348881C2

CONVERTER

HOUSING ASSEMBLY - torque converter

1шт.

8

R54620

BOLT,Hex, Flange, M10 x 35mm CL 10.9

BOLT - heavy hex flange, special

6шт.

9

A159663

YOKE

UNIVERSAL JOINT YOKE YOKE - output shaft, for shaft assembly without permanent lubrication

1шт.

9

1348826C1

CLEVIS

YOKE - output shaft, for shaft assembly with permanent lubrication, Start Serial: JAK0014958

1шт.

10

D124146

CLAMP

STRAP - bearing

2шт.

USE WITH A159663 YOKE.

1шт.

10a

90-6682T1

CLAMP

STRAP

1шт.

USE WITH 1348826C1 YOKE

1шт.

11

D124151

BOLT

special, 1/4 - 28 threads

4шт.

USE WITH A159663 YOKE.

1шт.

11a

D137627

BOLT,Hex Flg, 5/16" - 24 x 19.05mm

5/16 - 24 threads

1шт.

USE WITH 1348826C1 YOKE

1шт.

R56762

STEERING SHAFT

SHAFT ASSEMBLY - drive, without permanent lubrication, no longer used, order 109490A1

1шт.

109490A1

STEERING SHAFT

SHAFT ASSEMBLY - drive, with permanent lubrication, Start Serial: JAK0014958

1шт.

235981A1

KIT

KIT - universal joint

2шт.

12

NSS

NOT SOLD SEPARAT

JOINT - universal, drive shaft

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING - universal joint

4шт.

14

11256

SNAP RING

RING - retaining, bearing, universal joint

4шт.

15

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch, if used

1шт.

16

S301035

YOKE

TUBE - yoke, torque converter end

1шт.

17

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch

1шт.

18

H223875

CYLINDER END CAP

CAP - dust

1шт.

19

H223891

WASHER

WASHER - special, steel

1шт.

20

134381A1

RUBBER WASHER

WASHER - special, cork

1шт.

21

S301042

SHAFT

YOKE - splined shaft, transmission end

1шт.

H183566

BOLT

U-BOLT ASSEMBLY - special

2шт.

22

NSS

NOT SOLD SEPARAT

U-BOLT - special

1шт.

23

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

24

425-115

NUT,5/16"-24, G5

NUT - hex, 5/16 inch NF

2шт.
