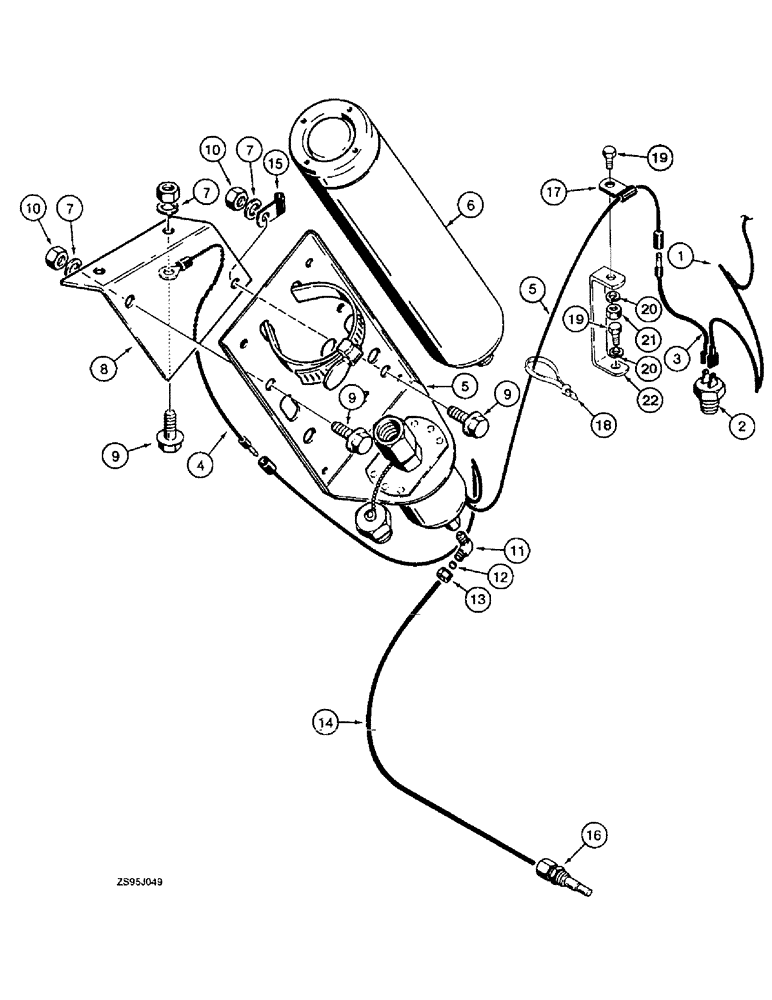

Запчасти Case 550E (4-30) - COLD START SYSTEM (04) - ELECTRICAL SYSTEMS

1

126269A1

HARNESS

- front wiring, see figure 4-18 for continuation of harness

1шт.

2

A172117

SWITCH

THERMOCOUPLE - in engine cylinder head, below intake manifold inlet tube

1шт.

3

182450A1

ELECTRICAL WIRE

WIRE - cold start, injection valve, Serial Range: wire-thermocouple

1шт.

4

R51632

ELECTRICAL WIRE

WIRE - ground, to valve mounting bracket

1шт.

5

A172116

VALVE

ASSEMBLY - cold start, fluid injection, with bracket component parts not serviced separetely, 3 cc injection volume, 12 volt

1шт.

6

A171940

CYLINDER

- starting fluid

1шт.

7

492-11038

LOCK WASHER,3/8"

4шт.

8

R49374

SUPPORT

BRACKET - mounting

1шт.

9

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

4шт.

10

425-106

NUT,3/8"-16, Cl 5

4шт.

11

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

12

222-650

SLEEVE,1/8" Tube, Comp

Tapered 1/8" Tube, Comp

1шт.

13

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD 5/16"-24, 45º Fl, Comp

1шт.

14

R40211

PLASTIC-RUBBER TUBE,0.125" OD x 10" L

TUBE - nylon, 10 inch (254 mm) long, cut from L60539X bulk tube

1шт.

Cold Start Installation Kits can be ordered from the Machinery Price List. See the Machinery Price List for the correct kit.

1шт.

15

D43839

CLAMP

- P-style, 1/8 inch diameter, at injection valve mounting bracket

1шт.

16

A172900

NOZZLE CAP

NOZZLE ASSEMBLY - atomizer, into side of intake manifold, component parts not serviced separately

1шт.

17

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- P-style, 1/8 inch diameter, holds nylon tube on top of bracket at engine cylinder head, see figure 4-12, items 11 through 14 for bracket and mounting hardware

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

19

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

20

892-11010

LOCK WASHER,M10

2шт.

21

825-1410

NUT,M10, Cl 8

1шт.

22

R50427

BRACKET

- stand-off

1шт.

L60539X

TUBE

- bulk, nylon, 1/8 (3) ID x 168 inch (4267 mm) long

1шт.

Cold Start Installation Kits can be ordered from the Machinery Price List. See the Machinery Price List for the correct kit.

1шт.
