Запчасти Case 550E (4-28) - HORN (04) - ELECTRICAL SYSTEMS

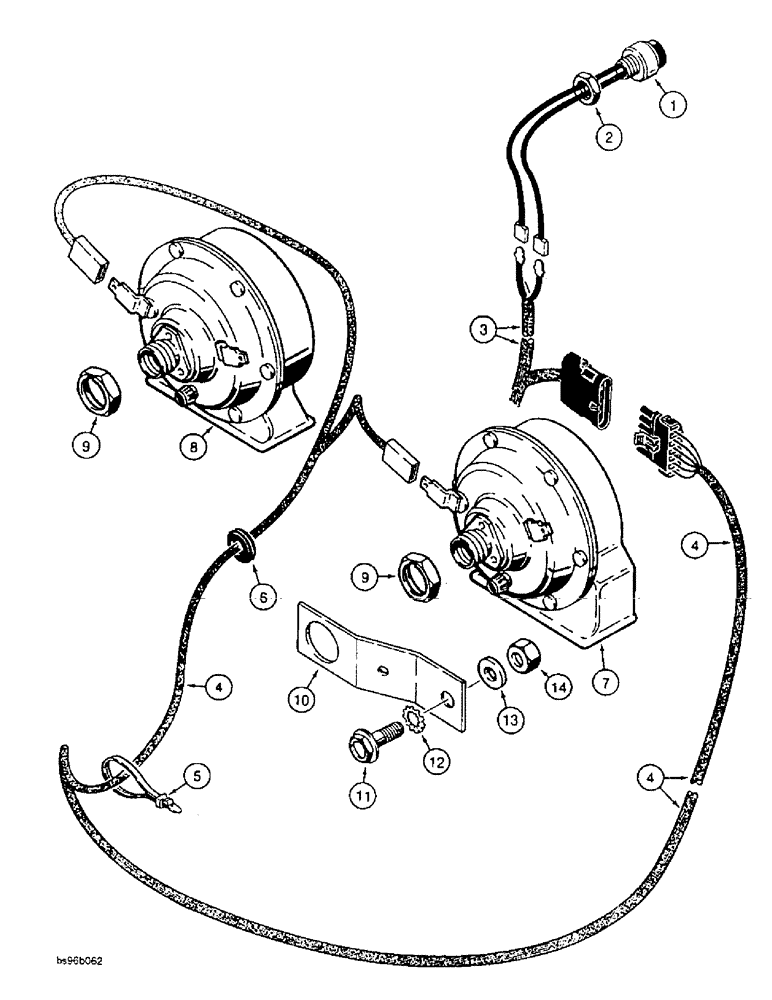

Схема запчастей Case 550E - (4-28) - HORN (04) - ELECTRICAL SYSTEMS
7
9
12
2
14
8
4
9
4
1
10
3
6
11
13
5
4

Артикул

Название

Примечание

Количество

1

R58727

SWITCH

- push button

1шт.

2

425-1510

JAM NUT,Jam, 5/8"-18, G5

- hex, jam, 5/8 inch NF

1шт.

3

107226A1

HARNESS

- rear wiring, see Figure 4-20 for continuation of harness

1шт.

4

REF

INSTRUCTION

HARNESS - front wiring, see Figure 4-14 for correct harness replacement parts

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

6

D37936

GROMMET

- rubber, horn wire

1шт.

7

D123205

HORN

- 12 volt, right hand

1шт.

8

R45962

HORN

- 12 volt, left hand

1шт.

9

L30866

LOCK NUT

- hex, special

2шт.

10

R58788

BRACKET

- horn mounting

2шт.

11

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

2шт.

12

493-11052

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER - internal-external tooth lock, 1/2 inch

2шт.

13

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

14

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

Выбрано товаров: 14
