(4-24) - LAMP ASSEMBLY - FRONT AND REAR FLOOD

Запчасти Case 550E (4-24) - LAMP ASSEMBLY - FRONT AND REAR FLOOD (04) - ELECTRICAL SYSTEMS

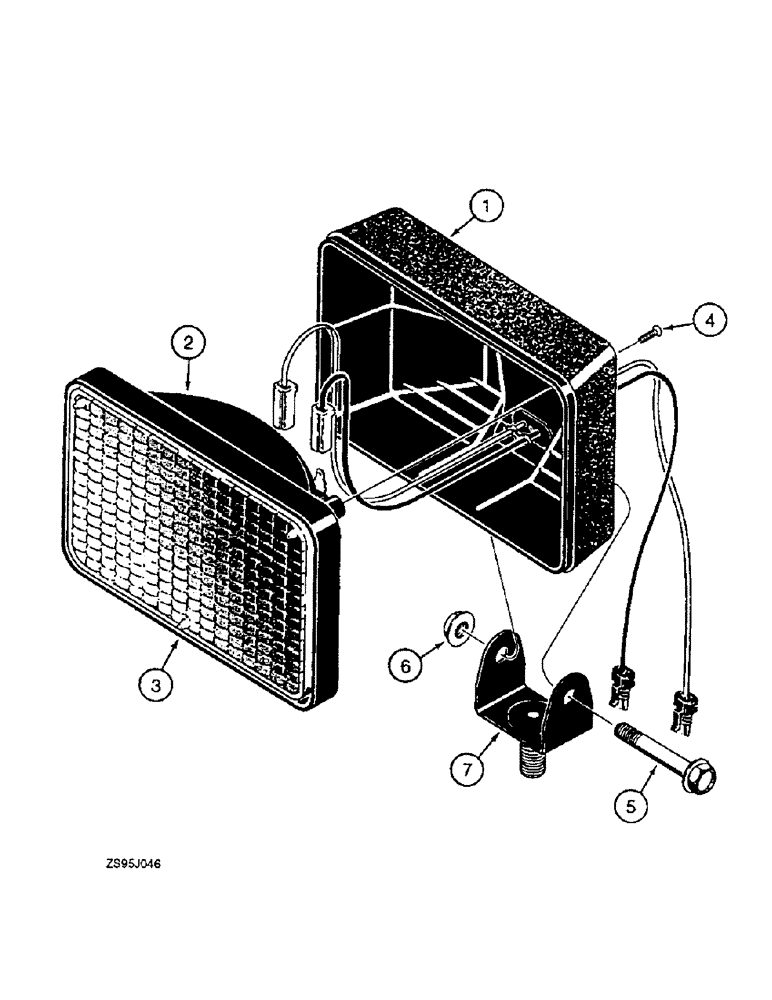

Схема запчастей Case 550E - (4-24) - LAMP ASSEMBLY - FRONT AND REAR FLOOD (04) - ELECTRICAL SYSTEMS
6
2
4
1
5
3
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

D137294

LIGHT ASSY.

LAMP ASSEMBLY - front driving and rear flood

4шт.

1

NSS

NOT SOLD SEPARAT

SHELL - lamp

1шт.

2

NSS

NOT SOLD SEPARAT

RETAINER - shell

1шт.

3

F45230

HEADLIGHT

BULB - halogen

1шт.

4

273-5048

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW - self-tapping, flat head slotted, No. 8-18 x 1/2 inch

2шт.

5

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

6

230-4215

NUT,5/16"-18, GA

NUT - hex, self locking, 5/16 inch NC

1шт.

7

N14626

SUPPORT

BRACKET - lamp

1шт.
