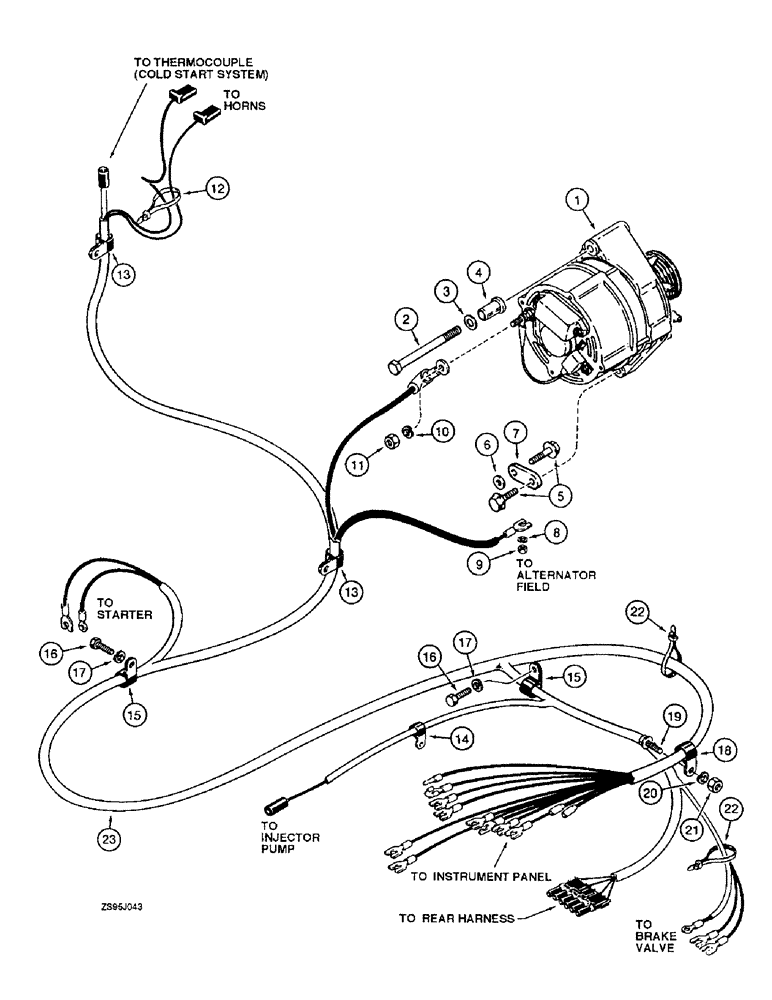

Запчасти Case 550E (4-18) - FRONT WIRING HARNESS AND ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

A187873

ALTERNATOR,12V, 65A

ASSEMBLY - engine, 65 ampere, parts list figure 4-10.

1шт.

1

A187873GV

ALTERNATOR

Value, 65 Amp

1шт.

2

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

- hex, 10 - 1.5 x 100 mm

1шт.

3

892-11010

LOCK WASHER,M10

1шт.

4

J902469

SPACER

- alternator mounting

1шт.

5

855-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 10.9

- heavy hex flange, 8 - 1.25 x 20 mm, class 10.9

2шт.

6

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- flat, special

1шт.

7

J903089

SUPPORT

BRACE - alternator mounting

1шт.

8

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

9

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25 grade 10

1шт.

10

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

1шт.

11

824-1405

NUT,M5, Cl 5

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, used when options not used

1шт.

13

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type 1/2", Insul, 3/8" Bolt

2шт.

14

49832

CLAMP

- P-type, 5/16 inch ID

1шт.

15

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

P-type 3/4", Insul, 1/2" Bolt

2шт.

16

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm

2шт.

17

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

18

S15544

CLAMP,1 5/16", Insul, 3/8" Bolt

- harness

1шт.

19

160-103

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

1шт.

20

492-11038

LOCK WASHER,3/8"

1шт.

21

425-106

NUT,3/8"-16, Cl 5

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

23

126269A1

HARNESS

- front wiring, see figure 4-14 for instrument panel wiring

1шт.
