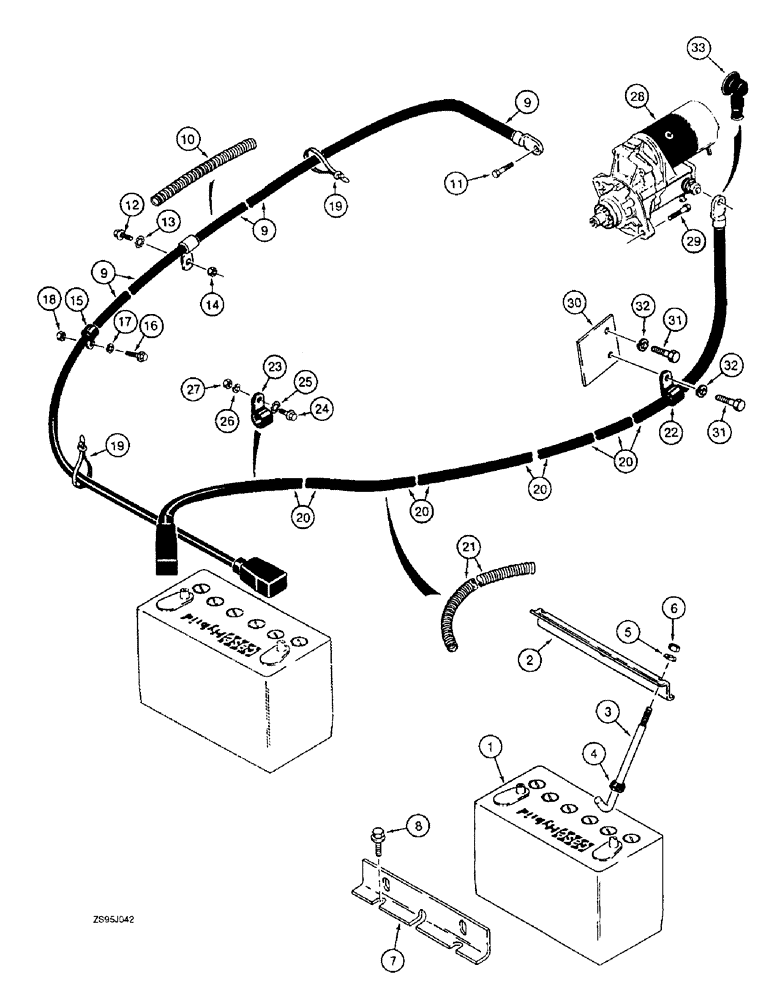

Запчасти Case 550E (4-16) - BATTERY MOUNTING, CABLES, AND STARTER (04) - ELECTRICAL SYSTEMS

1

BMF31E

DRY BATTERY

BATTERY - dry, 12 volt, 700 amperes

1шт.

2

R51648

LARGE PLATE

BRACKET - battery retaining

1шт.

3

D59707

BOLT

- J-type, 10 inch (254 mm) long

2шт.

4

248-2198

GROMMET,3/8" ID x 5/8" Groove Dia

- rubber, 5/8 inch groove diameter

2шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

6

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

7

R50651

BRACKET

PLATE - battery mounting

1шт.

8

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

2шт.

9

R57999

NEG BATTERY CABLE

CABLE - battery

1шт.

10

R42370

CABLE SHEATH

- Conduit - 70 inch (1778 mm) long, cut from R44806 bulk conduit, negative battery cable, see below

1шт.

11

R54620

BOLT,Hex, Flange, M10 x 35mm CL 10.9

BOLT - heavy hex flange, special, negative battery cable to torque converter

1шт.

12

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

1шт.

13

493-11052

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER - internal-external tooth lock, 1/2 inch

1шт.

14

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

15

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

P-type, To seat and tank frame 7/8", Insul, 3/8" Bolt

1шт.

16

160-103

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

1шт.

17

492-11038

LOCK WASHER,3/8"

1шт.

18

425-106

NUT,3/8"-16, Cl 5

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

20

R57998

NEG BATTERY CABLE

CABLE - battery, positive

1шт.

21

R58000

LOOM

CONDUIT - 71-1/2 inch (1841 mm) long

1шт.

22

R40419

CLAMP

- twist, special, positive battery cable and front wiring harness at decal plate below starter

1шт.

23

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

P-type, To seat and tank frame 7/8", Insul, 3/8" Bolt

1шт.

24

160-103

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

1шт.

25

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

WASHER - internal-external tooth lock, 3/8 inch

1шт.

26

492-11038

LOCK WASHER,3/8"

1шт.

27

425-106

NUT,3/8"-16, Cl 5

1шт.

28

REF

INSTRUCTION

STARTER ASSEMBLY - engine, new, parts list figures 4-2 and 4-6

1шт.

29

R54620

BOLT,Hex, Flange, M10 x 35mm CL 10.9

BOLT - heavy hex flange, special

2шт.

30

109697A1

PLATE ASSY.

PLATE - includes jump start decal, for decal see figure 9-40

1шт.

31

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm

2шт.

32

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

33

L126713

BOOT

- plastic, at starter, if used

1шт.

R44806

LOOM

CONDUIT - bulk, 88-1/2 inch (2248 mm) long

1шт.
