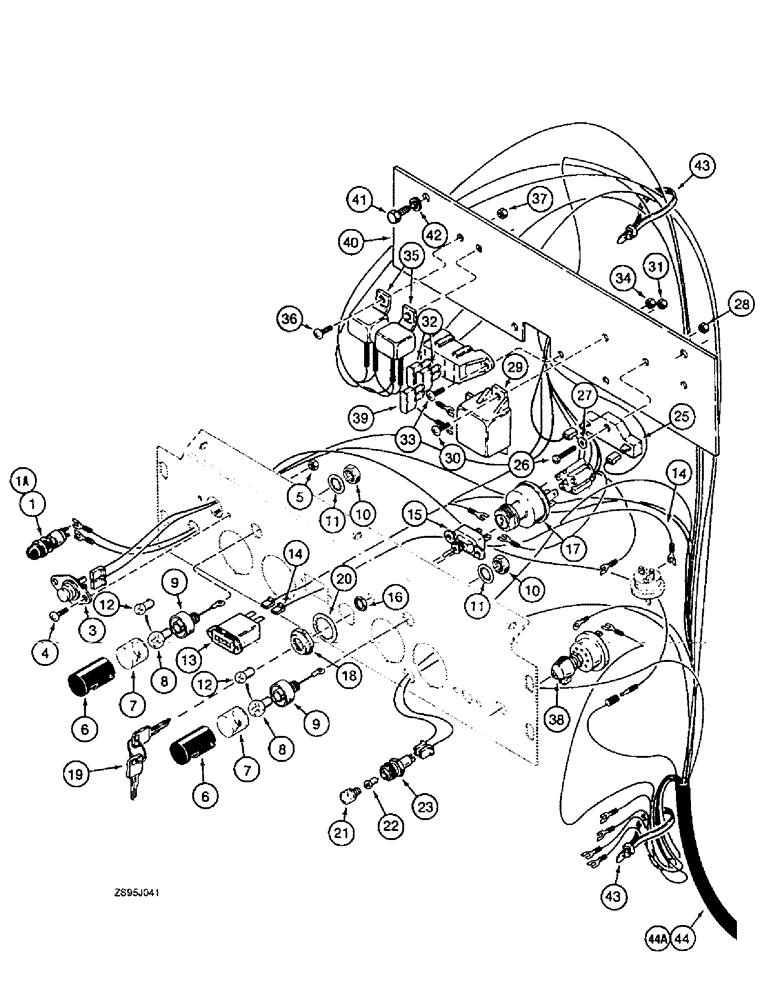

Запчасти Case 550E (4-14) - INSTRUMENT PANEL WIRING (04) - ELECTRICAL SYSTEMS

1

121815C91

LAMP

ASSEMBLY - alternator indicator

1шт.

1a

200557H1

BULB,C2V, #1815, 14V

- lamp, No. 1815

1шт.

3

D67872

SWITCH

- push button, cold start

1шт.

4

140-105

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

2шт.

5

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

D35815

LAMP

ASSEMBLY - instrument panel, if used

2шт.

6

D37918

COVER

- lamp

1шт.

7

D37919

LENS

- lamp

1шт.

8

R19897

BULB

- No. 623

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - lamp, includes wire

1шт.

10

D39095

NUT

- special

1шт.

11

493-21065

LOCK WASHER,Int Tooth, 5/8"

WASHER - internal tooth lock, 5/8 inch

2шт.

12

71421

BULB,R5W, 12V, 5W

- lamp, No. 67

2шт.

13

L107631

METER

HOURMETER - engine

1шт.

14

R27252

HARNESS

WIRE - to pressure switch

1шт.

15

R50405

SWITCH

- toggle, fuel shutoff, if used

1шт.

16

N13588

SPECIAL NUT

- special

1шт.

D134737

IGNITION SWITCH

SWITCH ASSEMBLY - ignition

1шт.

17

NSS

NOT SOLD SEPARAT

SWITCH - ignition

1шт.

18

101760A1

SPECIAL NUT

- ignition switch

1шт.

19

A77313

SET OF 2 KEYS

KEY - set of two; metal without padding

1шт.

20

493-21104

LOCK WASHER,Int Tooth, 1"

WASHER - internal tooth lock, 1 inch

1шт.

109369C91

LIGHT ASSY.

LAMP ASSEMBLY - indicator

1шт.

21

71652C1

LENS

- lamp

1шт.

22

200557H1

BULB,C2V, #1815, 14V

- lamp, No. 1815

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

25

F22316

RESISTOR,75 Ohms 0.2 Amps DC

- 75 ohm

1шт.

27

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

28

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

29

120399A1

RELAY

- 12 volt, used with 126269A1 harness, item 44A

1шт.

#29 IS NOT SQUARE LIKE IN PICTURE - IT IS A STARTER SOLENOID- SEE PICTURE IN 550G FIG 4-11. IF THIS SQUARE STYLE WAS USED SEE 580SK FIG 4-26 PART#1546541C1

1шт.

30

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

31

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

32

A149800

FUSE,10 Amp

- red, 10 ampere, red

2шт.

Fuse block is part number 245435C1

1шт.

33

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

Fuse block is part number 245435C1

1шт.

34

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

35

1983394C1

RELAY

- electrical

2шт.

36

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

37

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

38

R54064

IGNITION SWITCH

SWITCH - lamp

1шт.

39

A149804

FUSE

- light green, 30 ampere

1шт.

Fuse block is part number 245435C1

1шт.

40

R58073

PANEL

- instrument mounting

1шт.

41

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 3/4 inch

2шт.

42

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

43

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

44

R58030

HARNESS

- front wiring and instrument panel,no longer available, see note below

1шт.

Replace R58030 Harness with one 126269A1 Harness, one 120399A1 Relay, two 495-11028 Washer and two 829-1406 Nuts.

1шт.

44a

126269A1

HARNESS

- front wiring and instrument panel, includes fuse block, see Figure 4-18 for continuation of harness

1шт.

26

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.
