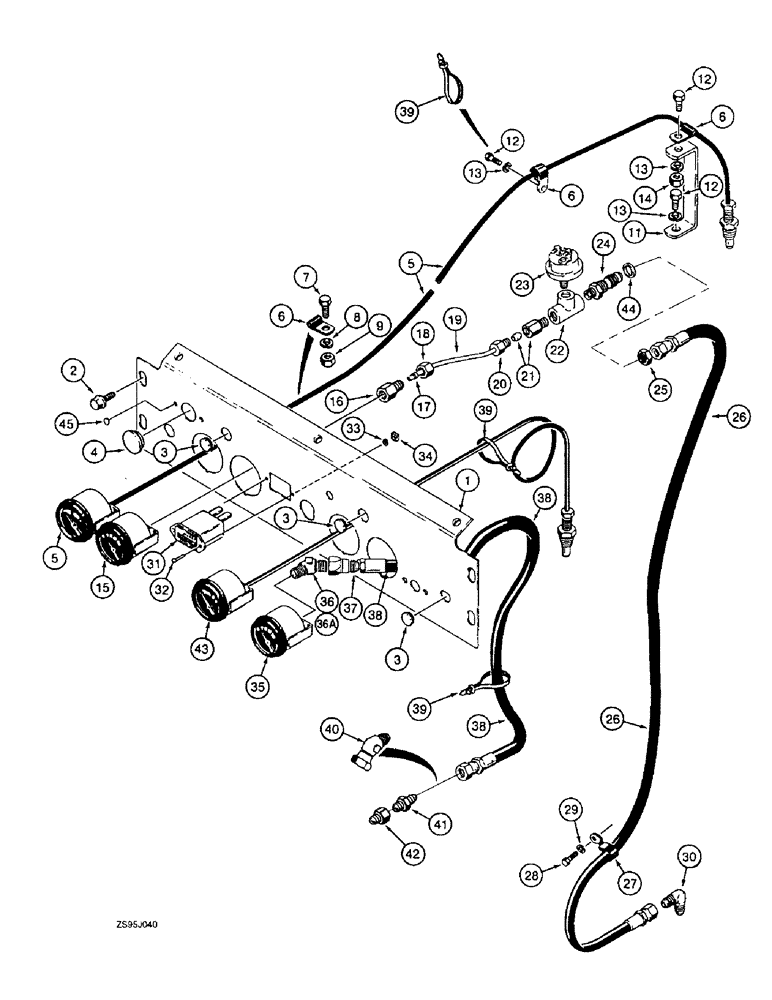

Запчасти Case 550E (4-12) - INSTRUMENT PANEL AND GAUGES (04) - ELECTRICAL SYSTEMS

1

R58269

PANEL, INSTRUMENTS

PANEL - instrument, includes decal, for decals see figure 9-38

1шт.

2

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- hex flange, 3/8 NC x 3/4 inch, grade 8

4шт.

3

353-407

PLUG,Dome, .687" hole, Nylon

- button, 11/16 inch

3шт.

4

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

5

X146163

HOUSING

- engine temperature

1шт.

6

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- P-type, 3/16 inch ID

1-3шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

8

492-11038

LOCK WASHER,3/8"

1шт.

9

425-106

NUT,3/8"-16, Cl 5

1шт.

11

R50427

BRACKET

- mounts to front of engine (if used)

1шт.

12

613-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm (if used)

3шт.

13

892-11010

LOCK WASHER,M10

(If used) M10

3шт.

14

825-1410

NUT,M10, Cl 8

If used M10, Cl 8

1шт.

15

R49132

GAUGE ASSY.

GAUGE - engine oil pressure

1шт.

D35091

PIPE FITTING

ADAPTER ASSEMBLY - straight, compression

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

17

D37176

SLEEVE

- compression

1шт.

18

D37362

TUBE NUT

- compression

1шт.

19

A152199

PIPE

TUBE - nylon, 20 inch (508 mm) long, cut from A138483 bulk tube, see below

1шт.

For the instrument panel hinged lockup cover, see figure 9-16

1шт.

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

ADAPTER - compression, 1/8 tube OD x 1/8 inch PT

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

21

222-500

TUBE NUT,5/16" - 24 NPT

NUT - hex, 1/8 tube OD x 5/16-24 inch, includes sleeve

1шт.

22

217-1160

TEE,1/8"-27 Female

- pipe, 1/8 inch female

1шт.

23

D28796

SWITCH

- see figure 4-14 for connections

1шт.

24

R58667

FITTING

ADAPTER - bulkhead

1шт.

25

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

26

D95116

HOSE

- 57 inch (1448 mm) long, engine oil pressure

1шт.

27

R40419

CLAMP

- special, twist type, engine oil pressure hose (if used)

1шт.

28

613-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

(If used) Hex, M12 x 25, 8.8, Full Thd

1шт.

29

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , If used 1/2"

1шт.

30

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, 7/16-20 flare x 1/8 inch PT

1шт.

31

L107631

METER

HOURMETER - engine

1шт.

32

169-169

SCREW,Sl Fil Hd, #5 - 40 x 1/2"

- machine, Fillister head, No. 5 NC x 1/2 inch

2шт.

33

492-11005

LOCK WASHER,#5

Washer, Lock, #5

2шт.

34

224-10005

SQUARE NUT,Sq, #5-40

- square, No. 5 NC

2шт.

35

138860A1

GAUGE

- transmission oil pressure

1шт.

36

218-531

ELBOW,45 Degree, 7/16-20" 37 Degree x 1/8"-27, NPTF

- 45 degree, 7/16-20 flare x 1/8 inch PT

1шт.

36a

218-461

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Female NPTF

ADAPTER - straight, 7/16-20 flare x 1/8 inch PT

1шт.

37

221-1335

COUPLING,Pipe, 1/8" NPT

1шт.

38

R58666

HOSE ASSY.

HOSE - 30 inch (762 mm) long, transmission oil pressure

1шт.

39

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

40

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

- 45 degree, 9/16-18 inch flare x swivel

1шт.

41

D36264

FITTING

ADAPTER - air restriction indicator, special

1шт.

42

221-87

REDUCER,1/2" NPT x 1/8" NPT

- pipe, 1/2 male x 1/8 inch female

1шт.

43

R54146

GAUGE

- torque converter temperature, includes tube and connector, includes tube and connector

1шт.

44

493-21052

LOCK WASHER,Int Tooth, 1/2"

WASHER - internal tooth lock, 1/2 inch

1шт.

45

353-400

PLUG,Dome, .250" hole, Nylon

2шт.

A138483

TUBE

- nylon, 99 inch (2515 mm) long

1шт.

For the instrument panel hinged lockup cover, see figure 9-16

1шт.
