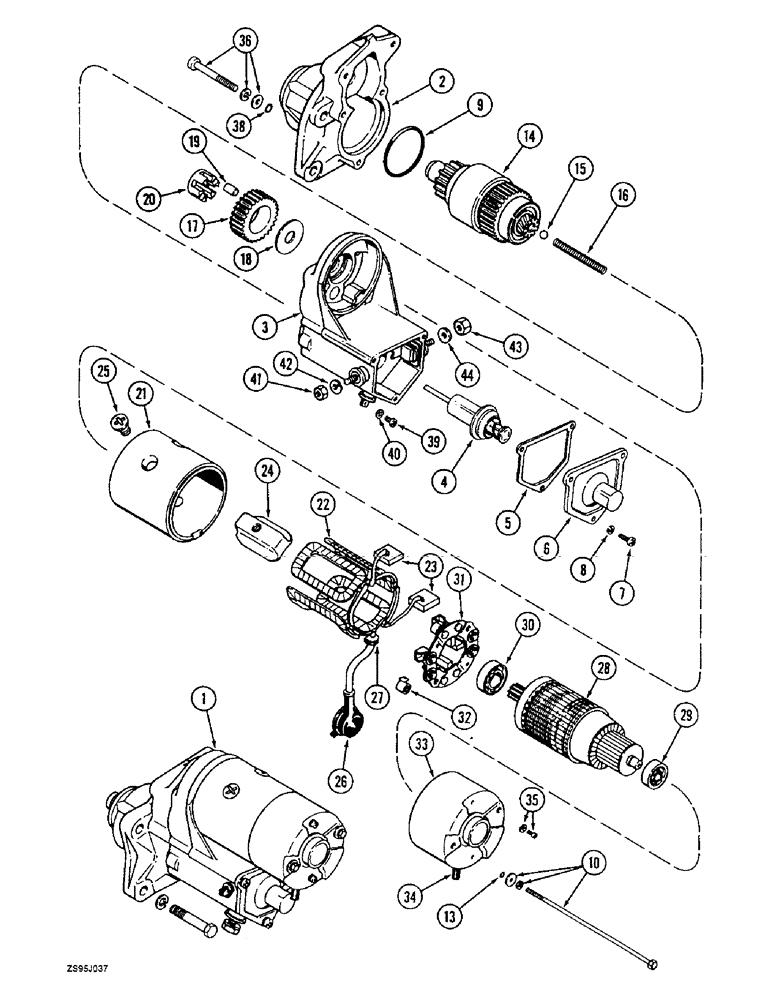

Запчасти Case 550E (4-02) - STARTER (04) - ELECTRICAL SYSTEMS

1

A170746

STARTING MOTOR

STARTER ASSEMBLY - engine, no longer used, order 1987559C1 starter, see parts list on figure 4-6.

1шт.

1

86982709R

REMAN-STARTER,12V, 2.5kW

Remanufactured Starting Motor

1шт.

1

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number, Starting Motor

1шт.

1

AR170746

STARTING MOTOR

STARTER ASSEMBLY - engine, remanufactured (North America), no longer available, order 1987559C1, see parts list on figure 4-6.

1шт.

1

86982709R

REMAN-STARTER,12V, 2.5kW

Reman for New PN AR170746

1шт.

1

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

1

104452A2R

REMAN-STARTER

Remanufactured Starter 12 volt, 2.5KW

1шт.

1

104452A1C

CORE-STARTER

Return Part Number, Starter 12 volt, 2.5KW to Tied to Sub: A170746

1шт.

2

A46948

HOUSING

HOUSING - drive end

1шт.

3

A46949

IGNITION SWITCH

SWITCH ASSEMBLY - magnetic

1шт.

4

NSS

NOT SOLD SEPARAT

SOLENOID

1шт.

5

NSS

NOT SOLD SEPARAT

GASKET - solenoid cover

1шт.

6

NSS

NOT SOLD SEPARAT

COVER - solenoid

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW -, Serial Range: cover-switch

3шт.

8

NSS

NOT SOLD SEPARAT

WASHER - cover screw

3шт.

9

1546500C1

SEAL,2.4mm Thk x 47.2mm ID

O-RING -, Serial Range: switch-housing

1шт.

10

A47243

BOLT

BOLT ASSEMBLY - tie, starter (includes washers)

2шт.

13

A47127

O-RING

O-RING - bolt seal

1шт.

14

A52396

DRIVE

CLUTCH - drive

1шт.

15

211-209

BALL

BALL - chrome alloy steel, 11/32 inch, grade 24

1шт.

16

A47232

SPRING

SPRING - compression, 2-13/16 inch free length

1шт.

17

A47233

GEAR

PINION - idler

1шт.

18

A47234

WASHER

WASHER - thrust, idler pinion

1шт.

19

A47235

ROLLER BEARING

ROLLER - pinion bearing

6шт.

20

A47236

RETAINER

RETAINER - roller bearing

1шт.

A47240

HOUSING

HOUSING ASSEMBLY - with coil and brushes

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING - starter

1шт.

22

NSS

NOT SOLD SEPARAT

COIL - field

1шт.

23

NSS

NOT SOLD SEPARAT

BRUSHES - starter

2шт.

24

NSS

NOT SOLD SEPARAT

SHOE - pole

4шт.

25

NSS

NOT SOLD SEPARAT

SCREW - pole shoes

4шт.

26

NSS

NOT SOLD SEPARAT

BOOT - magnetic switch terminal

1шт.

28

A47242

ARMATURE

ARMATURE ASSEMBLY - starter

1шт.

27

A47241

PLATE

PLATE - lock

1шт.

29

452698C1

BALL BEARING,10mm ID x 30mm OD x 9mm W

BEARING, BALL - Commutator end

1шт.

30

A47247

BALL BEARING,17mm ID x 35mm OD x 10mm W

BEARING - drive end

1шт.

31

A47239

HOLDER

HOLDER ASSEMBLY - brush (Includes 2 brushes)

1шт.

32

A47249

SPRING

SPRING - brush tension

4шт.

33

A47237

FRAME

FRAME - commutator end

1шт.

34

A47238

COVER

COVER - end frame

1шт.

35

A47244

CAPTIVE WASHER SCREW,Cross Pan Hd, M5 x 0.8 x 8mm

SCREW ASSEMBLY - with washer, brush, Serial Range: retaining,-cover

2шт.

36

A47230

BOLT

BOLT ASSEMBLY - commutator end cover to drive end housing

3шт.

38

A47130

O-RING

O-RING - bolt seal

1шт.

39

440-1086

SCREW,Cross Pan Hd, #8-32 x 3/8"

SCREW - machine, pan Phillips, No. 8 NC x 3/8"

1шт.

40

493-21017

LOCK WASHER,Int Tooth, #8

WASHER - internal tooth lock, No. 8

1шт.

41

425-146

JAM NUT,3/8" - 16, Gr 5

NUT - hex, jam, 3/8 inch NC, hex

1шт.

42

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

43

825-1410

NUT,M10, Cl 8

Nut, M10, Cl 8

1шт.

44

A10454

WAVE WASHER

WASHER - spring

1шт.
