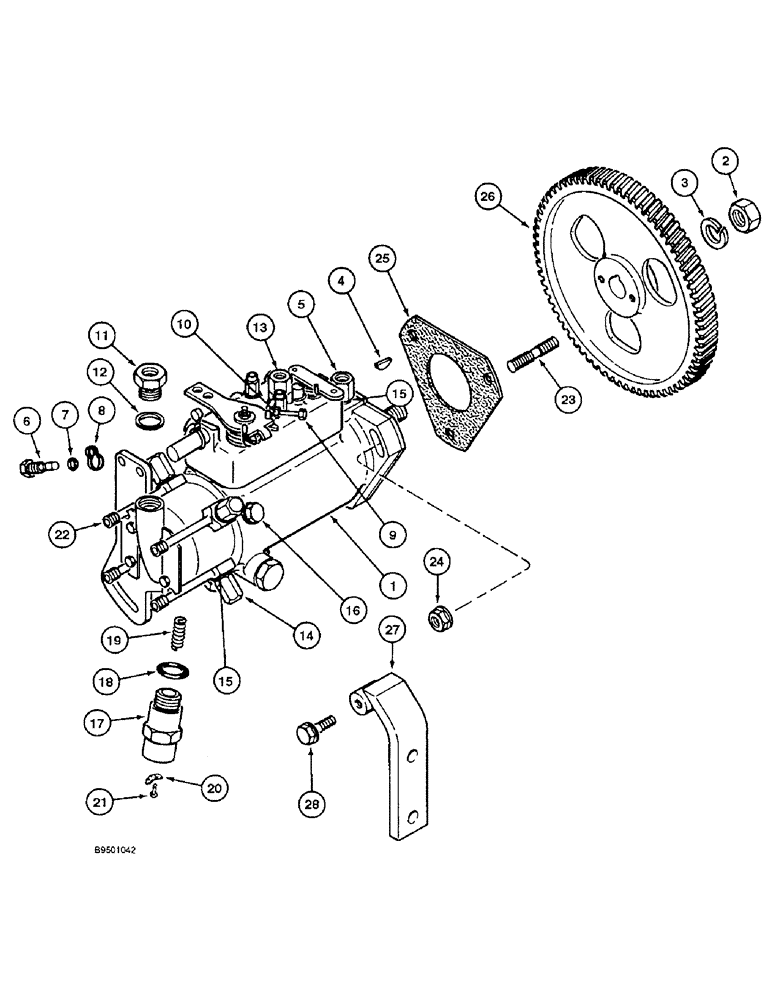

Запчасти Case 550E (3-12) - FUEL INJECTION PUMP AND DRIVE, 4-390 ENGINE, 4T-390 ENGINE (03) - FUEL SYSTEM

1

J916523

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, new, 4-390 engine

1шт.

1

JR916523

REMAN-INJECTION PUMP

Return Part Number fuel injection, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly, 4-390 engine

1шт.

1

JC916523

CORE-INJECTION PUMP

Return Part Number use this part number to return pump core for credit when using a remanufactured assembly

1шт.

1

J917063

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, new, 4T-390 engine

1шт.

1

JR917063

REMAN-INJECTION PUMP

Pump Assembly fuel injection, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly, 4T-390 engine

1шт.

1

JC917063

CORE-INJECTION PUMP

Return Part Number

1шт.

1

JC915883

CORE-INJECTION PUMP

Return Part Number use this part number to return pump core for credit when using a remanufactured assembly

1шт.

2

J903738

NUT

NUT - hex, special, 14 mm - 2.0

1шт.

3

492-11056

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

4

836-4065

WOODRUFF KEY,M4 x 6.5 x 15.72

WOODRUFF KEY, , Pump gear M4 x 6.5 x 15.72

1шт.

5

J904643

FITTING

FITTING - return

1шт.

6

J904778

BOLT

BOLT - hex, special, locking device

1шт.

7

J904780

SEAL

SEAL - locking bolt

1шт.

8

J904779

WASHER

WASHER - locking, special

1шт.

9

J904637

SET SCREW

SCREW - adjusting, low idle

1шт.

10

131-1144

LOCK NUT,Jam, #10 - 24

NUT - self-locking, No. 10 NF

1шт.

10a

J904781

GUIDE

GUIDE - spring

1шт.

11

J904641

FITTING

FITTING - inlet

1шт.

12

K962748

WASHER

WASHER - inlet fitting, copper

1шт.

13

J904640

VENT

ORIFICE - bleed

1шт.

14

J904646

BANJO BOLT

BOLT - banjo

4шт.

15

J904644

WASHER

WASHER - sealing

9шт.

16

K963867

SCREW

SCREW - bleed, pump head

1шт.

17

J904630

SOLENOID

SOLENOID - shut down, 12 volt

1шт.

18

J904635

O-RING

O-RING - solenoid

1шт.

19

J904777

SPRING

SPRING - plunger

1шт.

20

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

TERMINAL - Male

1шт.

21

614-5008

BOLT,Hex, M5 x 0.8 x 8mm, Cl 8.8, Full Thd

BOLT - hex, full threads, 5 x 0.8 x 8 mm

1шт.

22

K962755

ADAPTER

FITTING - banjo

4шт.

23

J902501

STUD

STUD - pump mounting, 8 - 1.25 x 48 mm

3шт.

24

J900589

NUT

NUT - hex flange, special, 8 mm

3шт.

25

J914389

GASKET

GASKET - pump mounting

1шт.

26

J920594

PINION

GEAR - pump drive

1шт.

27

J905387

BRACE

BRACE - fuel pump

1шт.

28

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 20 mm

3шт.
