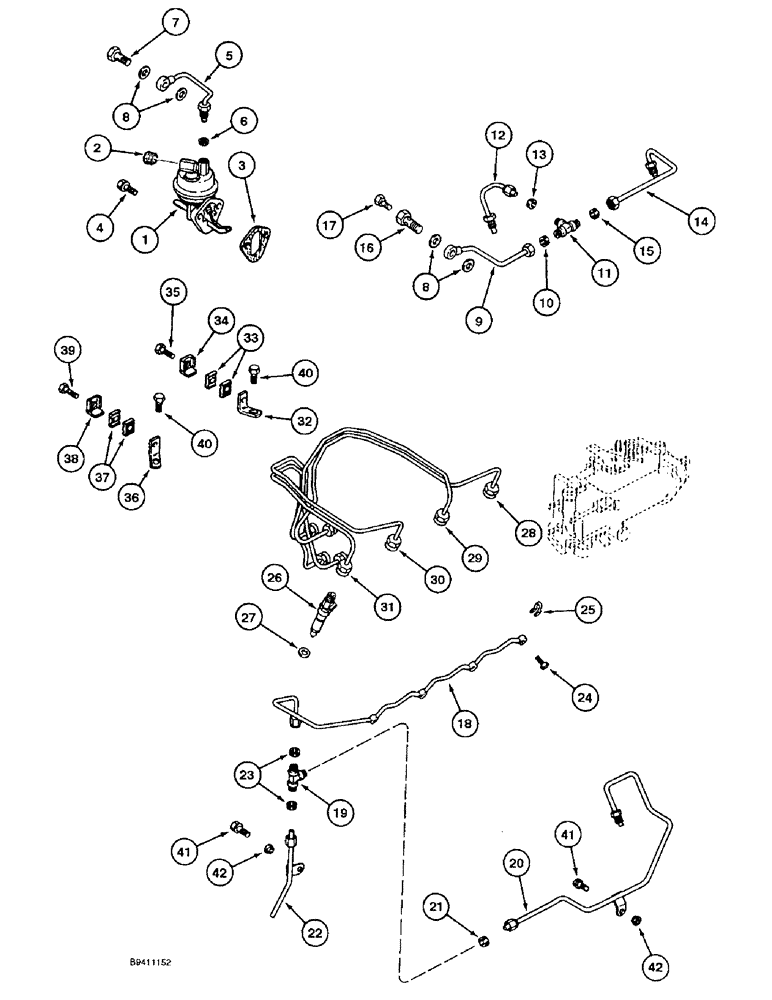

Запчасти Case 550E (3-08) - FUEL INJECTION SYSTEM, 4-390 ENGINE, 4T-390 ENGINE (03) - FUEL SYSTEM

1

J904374

PUMP

- lift, fuel

1шт.

2

221-841

PLUG

- hex socket, 1/4 inch PT, fuel inlet

1шт.

3

J923054

GASKET

- mounting, fuel transfer pump, replaces J914304 gasket

1шт.

4

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm

2шт.

5

J905649

FUEL TUBE,8 mm OD x 233.5 mm L

TUBE ASSEMBLY - fuel supply, lift pump to filter

1шт.

6

222-101

SLEEVE,3/16" Tube

- 3/16 inch tube OD

1шт.

7

J903035

BANJO BOLT

BOLT - banjo hex, 12 - 1.5 x 24 mm

1шт.

8

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm, replaces J903037 washer

4шт.

9

J905364

FUEL TUBE

TUBE ASSEMBLY - fuel supply, Serial Range: filter-tee

1шт.

10

222-103

SLEEVE,5/16" Tube

5/16 inch tube OD

1шт.

11

J905353

TEE

- 9/16 inch NF (remove and discard nuts before assembly)

1шт.

12

J905375

FUEL TUBE,8 mm OD x 137.6 mm L

TUBE ASSEMBLY - fuel supply, tee to rear of injection pump

1шт.

13

222-103

SLEEVE,5/16" Tube

5/16 inch tube OD

1шт.

14

J905363

FUEL TUBE,8 mm OD x 256.8 mm L

TUBE - fuel supply, tee to front of injection pump

1шт.

15

222-103

SLEEVE,5/16" Tube

5/16 inch tube OD

1шт.

J905860

BANJO BOLT

BOLT ASSEMBLY - banjo hex, special

1шт.

16

NSS

NOT SOLD SEPARAT

BOLT - connector, banjo hex, special

1шт.

17

NSS

NOT SOLD SEPARAT

SCREW - hex, special, vent

1шт.

18

J909695

FUEL TUBE

TUBE - manifold, fuel drain

1шт.

19

222-121

TEE,3/16", Flex Tubing

3/16", Flex Tubing (Remove and discard nuts before assembly)

1шт.

20

J925882

FUEL TUBE,4.76 mm OD x 662.1 mm L

TUBE ASSEMBLY - fuel return, tee to pump replaces J905703 tube assembly

1шт.

21

222-101

SLEEVE,3/16" Tube

- 3/16 inch tube OD, replaces 222-103 sleeve

1шт.

22

J905692

FUEL TUBE

TUBE - fuel return, tee to fuel tank

1шт.

23

222-101

SLEEVE,3/16" Tube

- 3/16 inch tube OD

2шт.

24

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

4шт.

25

J903380

SEAL

- connector

4шт.

26

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel, see figure 3-14

4шт.

27

J906659

SEAL

- injector nozzle, 7 mm injector tip

1шт.

28

J903522

FUEL TUBE,2 mm ID x 6.4 mm OD x 643.1 mm L

TUBE - fuel injector, No. 1 cylinder

1шт.

29

J903523

FUEL TUBE,2 mm ID x 6.4 mm OD x 645.3 mm L

TUBE - fuel injector, No. 2 cylinder

1шт.

30

J903524

FUEL TUBE

TUBE - fuel injector, No. 3 cylinder

1шт.

31

J903525

FUEL TUBE

TUBE - fuel injector, No. 4 cylinder

1шт.

32

J919294

SUPPORT

BRACKET - fuel tube, No. 1 and 2

1шт.

33

J917746

CLAMP

- fuel tube

2шт.

34

J904711

SUPPORT

BRACKET - fuel tube

1шт.

35

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, , Replaces J917712 bolt and J903723 washer Hex Hd, M5 x .8 x 20, w/LW

1шт.

36

J919292

SUPPORT

BRACKET - fuel tube

1шт.

37

J917746

CLAMP

- fuel tube

2шт.

38

CURJ904711

CLAMP

BRACKET - fuel tube

1шт.

39

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, , Replaces J917712 bolt and J903723 washer Hex Hd, M5 x .8 x 20, w/LW

1шт.

40

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special Hex Flg Hd, M8 x 1.25 x 25

2шт.

41

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

2шт.

42

J900267

SEAL

- cover bolt

2шт.
