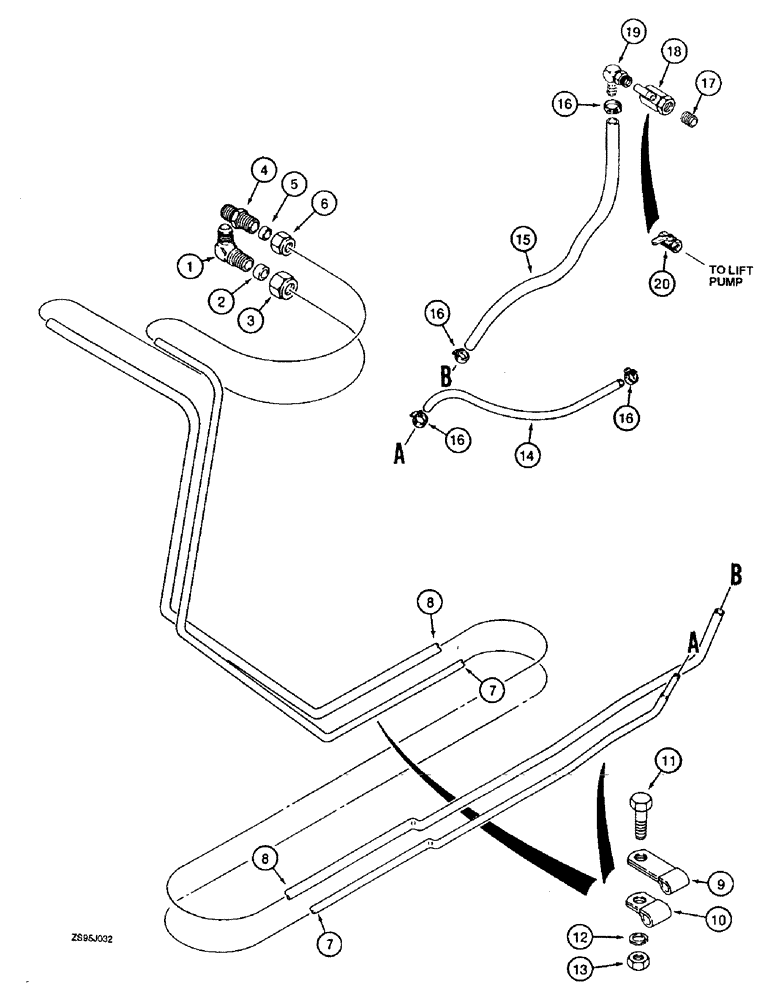

Запчасти Case 550E (3-06) - FUEL LINES (03) - FUEL SYSTEM

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

- 90 degree, compression, 5/16 tube OD x 1/4 inch PT

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

2

222-103

SLEEVE,5/16" Tube

5/16 inch tube OD

1шт.

3

222-113

TUBE NUT,9/16"-24

NUT - hex, 5/16 tube OD x 9/16-24 inch

1шт.

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

ADAPTER - compression, 1/4 tube OD x 1/4 inch PT, return tube

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

5

222-102

SLEEVE,1/4" Tube

1шт.

6

87017024

TUBE NUT,1/2"-24

NUT - hex, 1/4 tube OD x 1/2-24 inch

1шт.

7

R58730

FUEL TUBE,0.25" OD

TUBE - upper, fuel return, 1/4 inch OD

1шт.

8

R58729

FUEL TUBE,0.312" OD

TUBE - lower, fuel supply, 5/16 inch OD

1шт.

9

R13002

CLAMP

- 1/4 inch

2шт.

10

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

P-type 5/16", Insul, 3/8" Bolt

2шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

12

492-11038

LOCK WASHER,3/8"

2шт.

13

425-106

NUT,3/8"-16, Cl 5

2шт.

14

R50624

FUEL HOSE,4.76 mm ID x 150.00 mm, SAE 30R1

Return, Filter to Fuel Tank 4.76 mm ID x 150.00 mm, SAE 30R1

1шт.

15

D34989

FUEL HOSE,0.31" ID x 9.00", SAE 30R1

Supply, Fuel Tank To Lift Pump, Cut From S120317X Hose, See Below 0.31" ID x 9.00", SAE 30R1

1шт.

16

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adj, 1/4 - 5/8 inch dia, Type F

4шт.

17

221-130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - straight, 1/4 PT x 7/8 inch, used with R47797

1шт.

Ref. #17 is not used with Ref. #20

1шт.

18

R47797

VALVE

- shutoff, fuel, at lift pump, if used

1шт.

19

217-295

FITTING,90 Degree Elbow, 5/16" Hose Barb x 1/4" Male NPTF

ELBOW - 90 degree, 5/16 stem end x 1/4 inch PT, at fuel lift pump

1шт.

20

113092A1

VALVE

- shutoff, fuel, if used

1шт.

S120317X

HOSE

- bulk, 5/16 (8) x 9/16 (14) x 300 inch (7620 mm) long

1шт.
