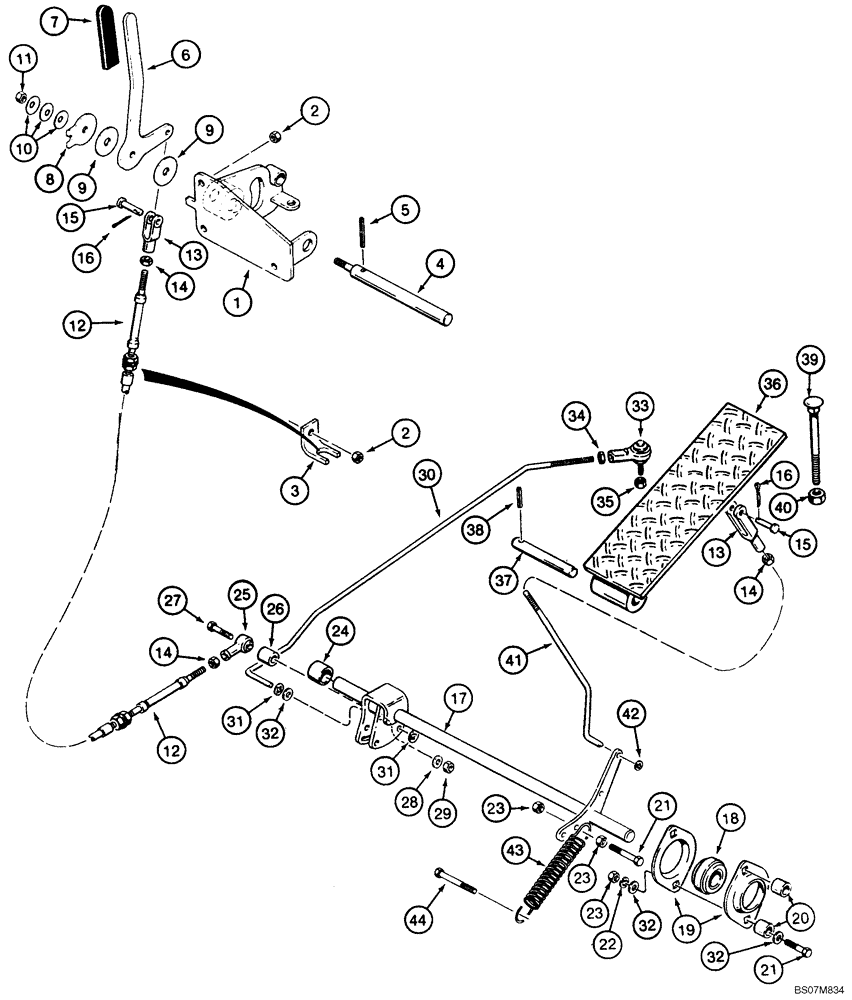

Запчасти Case 550E (3-02) - THROTTLE CONTROLS (03) - FUEL SYSTEM

1

R58310

BRACKET

- mounting, throttle and transmission controls, see figures 6-46 and 6-48 for transmission control components

1шт.

2

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

4шт.

3

CASR52478

BRACKET

- cable support

1шт.

4

R57937

SHAFT

- pivot

1шт.

5

38-11632

LOCK PIN,1/4" x 2", Slotted

PIN, LOCK, 1/4" x 2", Slotted

1шт.

6

R57933

LEVER

- throttle control

1шт.

7

R52376

MOLDING

GRIP - control lever

1шт.

8

R57932

LARGE PLATE

PLATE - friction disc

1шт.

9

R52389

DISC

- friction

2шт.

10

R58742

WASHER

- Belleville, throttle lever mounting

3шт.

11

131-463

NUT,3/8"-16

NUT - heavy hex, self-locking, 3/8 inch NC

1шт.

12

R57954

CABLE

- hand throttle control

1шт.

13

213-125

ADJUSTABLE CLEVIS,5/16" - 32

CLEVIS - adjustable, 5/16 inch NF

2шт.

14

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

3шт.

15

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

PIN - clevis, 5/16 x 15/16 inch, hardened

2шт.

16

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

17

R58612

SHAFT

- cross, throttle control

1шт.

18

468390R92

BALL BEARING,0.6255" ID x 40 mm OD x 0.75"

- ball, throttle shaft

2шт.

19

F13526

FLANGED BEARING

FLANGE - bearing, cross shaft

4шт.

20

D34162

SPACER

- flange

4шт.

21

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

5шт.

22

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

23

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

6шт.

24

1334638C1

SPACER

- cable control lever

1шт.

25

R47498

END

- throttle cable

1шт.

26

F13386

SPACER

- ball joint end

1шт.

27

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

28

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

29

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

1шт.

30

R58718

ROD

- throttle, at injection pump, models without decelerator

1шт.

30a

101775A1

ROD

- throttle, at injection pump, models with decelerator, if used, not shown

1шт.

31

100-1425

SNAP RING,#25, Ext

Ring, Snap, #25, Ext

2шт.

32

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

9шт.

33

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT - ball, 1/4 inch NF, throttle rod

1шт.

34

425-114

NUT,1/4"-28, G5

1шт.

35

131-498

LOCK NUT,1/4"-28, GB

NUT - hex, self-locking, 1/4 inch NF

1шт.

36

R26937

PEDAL

- foot throttle, units without decelerator

1шт.

36a

R57935

PEDAL

- foot throttle, units with decelerator, if used, not shown

1шт.

37

R17364

SHAFT

- pedal

1шт.

38

38-11016

LOCK PIN,5/32" x 1", Slotted

Pin, 5/32" x 1", Slotted

1шт.

39

411-864

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 4", Gr 2

BOLT - carriage, 1/2 NC x 4 inch, grade 2, accelerator stop

1шт.

40

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

41

R58645

ROD

- throttle, units without decelerator

1шт.

41a

R58646

ROD

- throttle, units with decelerator, if used, not shown

1шт.

42

100-1431

SNAP RING,#31, Ext

Ring, Snap, #31, Ext

2шт.

43

R36912

SPRING

- return

1шт.

44

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

1шт.
