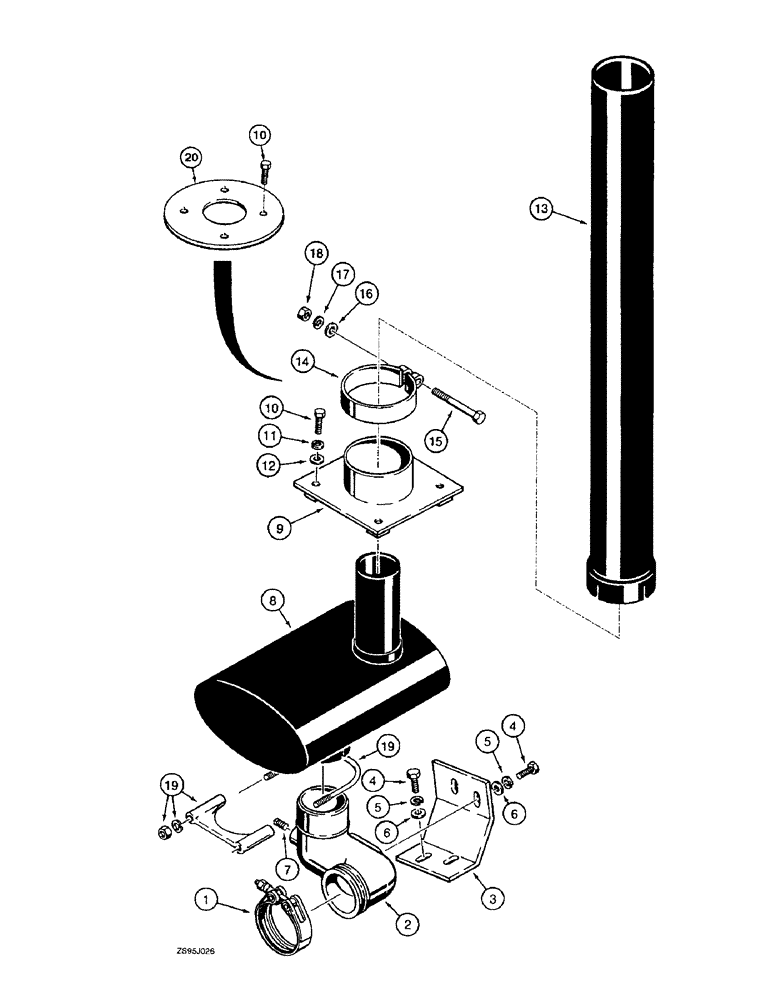

Запчасти Case 550E (2-58) - MUFFLER MOUNTING AND EXHAUST PARTS, MODELS WITH A TURBOCHARGER (02) - ENGINE

1

A170467

CLAMP,72mm ID

- tube, at turbocharger, includes hardware

1шт.

2

A170987

ELBOW

TUBE - elbow

1шт.

3

A190798

SUPPORT

BRACKET - mounting

1шт.

4

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm

4шт.

5

892-11010

LOCK WASHER,M10

4шт.

6

D41740

WASHER

- flat, special

4шт.

7

221-841

PLUG

- hex socket, 1/4 inch PT

1шт.

8

A189478

MUFFLER

- used on models with turbocharger

1шт.

9

R42378

BRACKET

- exhaust pipe

1шт.

10

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

4шт.

11

492-11038

LOCK WASHER,3/8"

4шт.

12

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, special, hardened

4шт.

13

R50444

PIPE

- exhaust, muffler

1шт.

14

R42854

CLAMP

- exhaust pipe

1шт.

15

113-2272

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

16

195-81019

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

- flat, 13/32 x 13/16 x 1/16 inch

1шт.

17

492-11038

LOCK WASHER,3/8"

1шт.

18

129-770

NUT,3/8"-16, G5

- hex, 3/8 inch NC

1шт.

19

L14222

CLAMP,79.25mm ID

ASSEMBLY - includes lock washers and nuts

1шт.

20

182803A1

RING

- exhaust support

1шт.
