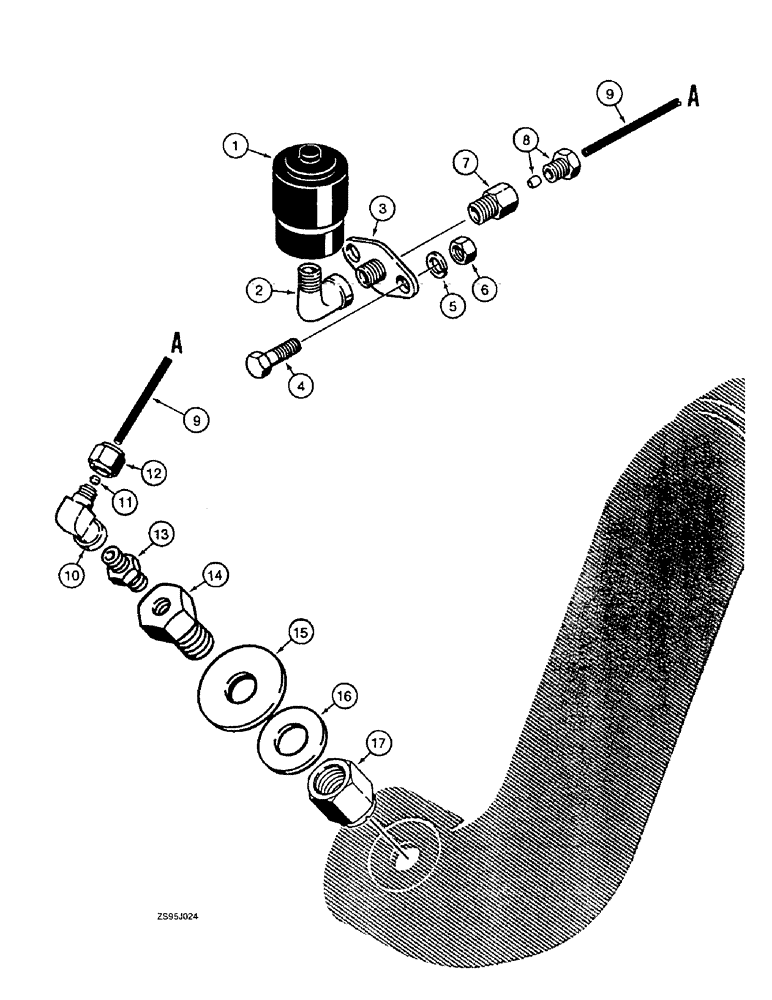

Запчасти Case 550E (2-54) - AIR RESTRICTION INDICATOR, MODELS WITH A TURBOCHARGER (02) - ENGINE

1

A59569

INDICATOR

- restriction

1шт.

2

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

3

H357707

FLANGE

BRACKET - restriction indicator mounting

1шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

5

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

ADAPTER - compression, 1/8 tube OD x 1/8 inch PT

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

8

222-500

TUBE NUT,5/16" - 24 NPT

NUT - hex, 1/8 tube OD x 5/16-24 inch, includes sleeve

1шт.

9

R52565

TUBE,0.125" OD x 29.5" L

- nylon, 29-1/2 inch (750 mm) long, cut from L60539X bulk tube, see below

1шт.

For restriction indicator parts used on models without a turbocharger see figure 2-52.

1шт.

222-5390

ELBOW,90 Degree, 3/8"-24 x 1/8" NPT

- 90 deg, compression, 1/8 tube OD x 1/8 inch female PT

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

11

222-4976

SLEEVE,1/8" Tube

- 1/8 inch tube OD

1шт.

12

222-4988

TUBE NUT,1/8" Tube

NUT - hex, 1/8 tube OD x 3/8-24 inch

1шт.

13

D36264

FITTING

ADAPTER - air restriction indicator, filter-type

1шт.

14

A170609

FITTING

ADAPTER - special, 1/8 inch PT x 3/4 inch NC

1шт.

15

S107793

SEALING WASHER

WASHER - with rubber seal, 3/4 inch, special

1шт.

16

495-11081

WASHER,3/4", SAE

1шт.

17

131-83

NUT,3/4"-10

NUT - heavy hex, self-locking, 3/4 inch NC

1шт.

L60539X

TUBE

- bulk, nylon, 1/8 (3 mm) ID x 168 inch (4267 mm) long

1шт.

For restriction indicator parts used on models without a turbocharger see figure 2-52.

1шт.
