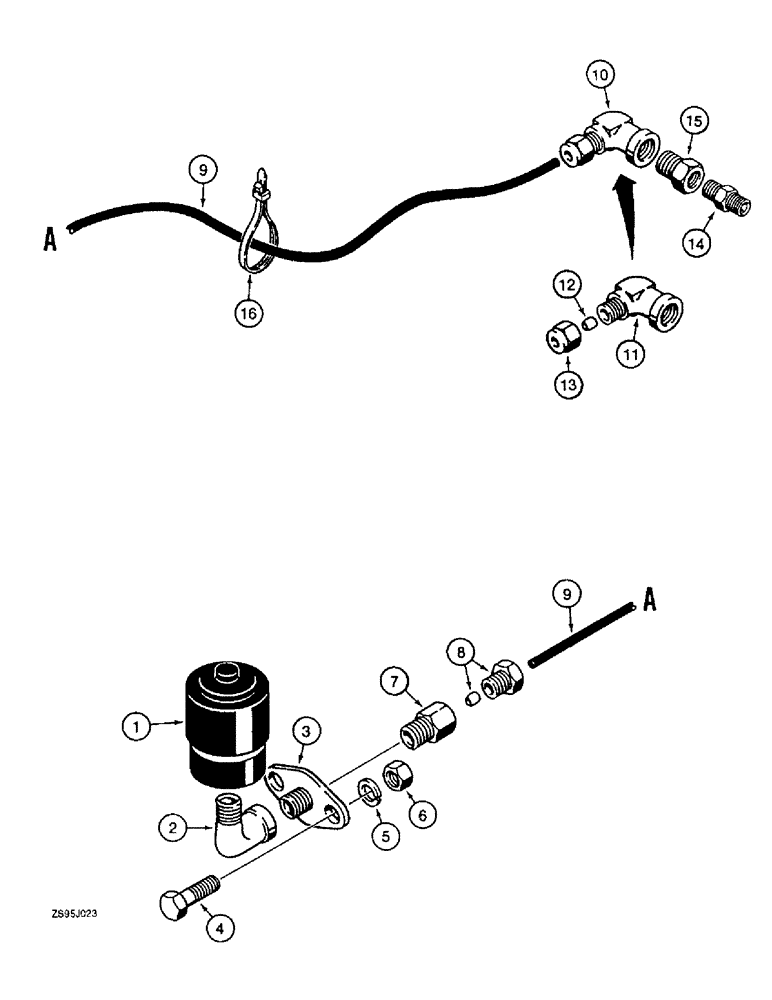

Запчасти Case 550E (2-52) - AIR RESTRICTION INDICATOR, MODELS WITHOUT A TURBOCHARGER (02) - ENGINE

1

A59569

INDICATOR

- restriction

1шт.

2

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

3

H357707

FLANGE

BRACKET - restriction indicator mounting

1шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

5

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

ADAPTER - compression, 1/8 tube OD x 1/8 inch PT

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

8

222-500

TUBE NUT,5/16" - 24 NPT

NUT - hex, 1/8 tube OD x 5/16-24 inch, includes sleeve

1шт.

9

R27253

PLASTIC-RUBBER TUBE,0.125" OD x 46" L

TUBE - nylon, 46 inch (1168 mm) long, cut from S118583X bulk tube, see below

1шт.

For restriction indicator parts used on models with a turbocharger see figure 2-54.

1шт.

10

222-5390

ELBOW,90 Degree, 3/8"-24 x 1/8" NPT

- 90 deg, compression, 1/8 tube OD x 1/8 inch fem PT

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

12

222-4976

SLEEVE,1/8" Tube

- 1/8 inch tube OD

1шт.

13

222-4988

TUBE NUT,1/8" Tube

NUT - hex, 1/8 tube OD x 3/8-24 inch

1шт.

14

D36264

FITTING

ADAPTER - air restriction indicator, filter-type

1шт.

15

221-87

REDUCER,1/2" NPT x 1/8" NPT

- pipe, 1/2 male x 1/8 inch female

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

S118583X

PLASTIC-RUBBER TUBE

TUBE - bulk, nylon, 1/8 (3 mm) ID x 300 inch (7620 mm) long

1шт.

For restriction indicator parts used on models with a turbocharger see figure 2-54.

1шт.
