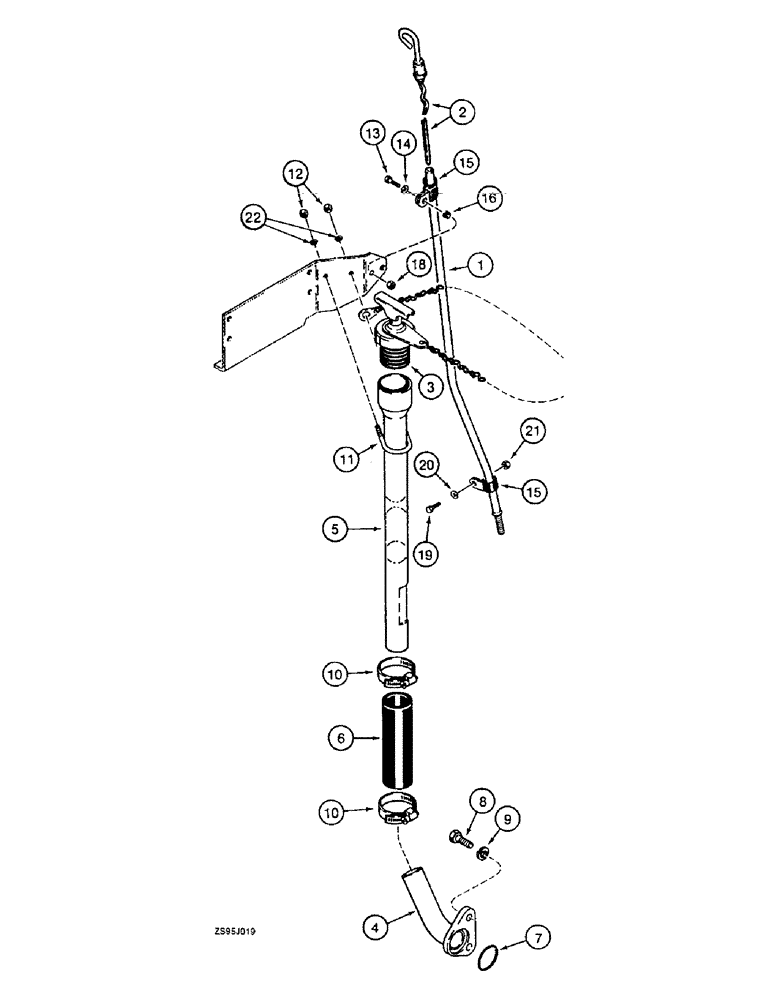

Запчасти Case 550E (2-44) - ENGINE DIPSTICK AND FILL TUBE (02) - ENGINE

1

R47970

TUBE,9.52 mm OD x 760, 173 mm L

- dipstick

1шт.

2

R48402

DIPSTICK

- engine oil

1шт.

3

L115504

CAP

- filler tube, includes chain

1шт.

4

R53750

TUBE,24 mm L

- engine oil fill, lower

1шт.

5

R53769

TUBE,38.1 mm OD x 540, 40 mm L

- engine oil fill, upper

1шт.

6

R53715

HOSE,38.10 mm ID x 170.00 mm, SAE 20R1 Class B

Oil Fill, Cut from 183616C1 Bulk Hose, See Below 38.10 mm ID x 170.00 mm, SAE 20R1 Class B

1шт.

For mounting bracket for fill tube and dipstick tube see side shield support, item 8 on figure 9-20.

1шт.

7

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - sealing

1шт.

8

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm

2шт.

9

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

10

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

CLAMP - adj, 1-1/4 - 2-1/8 inch dia, engine oil fill

2шт.

11

L73167

U-BOLT

- to coolant recovery bottle bracket

1шт.

12

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

13

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

1шт.

14

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

15

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

P-type 3/8", Insul, 5/16" Bolt

2шт.

16

R39516

GROMMET

- rubber, used with upper dipstick tube clamp only

1шт.

18

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

1шт.

19

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

1шт.

20

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

1шт.

21

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

22

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

183616C1

HOSE,38.1 mm ID x 1168.40 mm, SAE 20R1

- bulk, 1-1/2 (38) ID x 1-11/16 (43) OD x 46 inch (1168 mm) long

1шт.

For mounting bracket for fill tube and dipstick tube see side shield support, item 8 on figure 9-20.

1шт.
