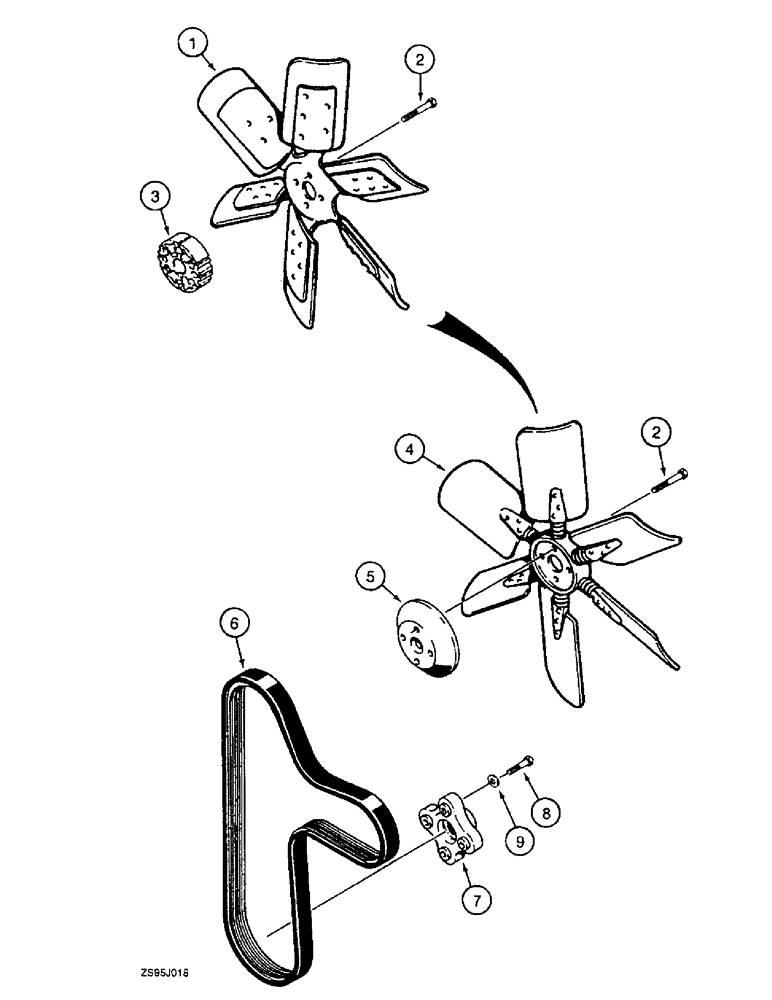

Запчасти Case 550E (2-42) - RADIATOR FAN, BELT, AND MOUNTING (02) - ENGINE

1

1998736C1

FAN,7 Blades, 450mm OD

- pusher

1шт.

2

854-10050

BOLT,Hvy Hex, M10 x 50mm, Cl 10.9

- hex, 10 - 1.5 x 55 mm class 10.9

4шт.

3

A184544

SPACER

- 1-1/4 inch wide

1шт.

4

A184472

FAN

- reversible

1шт.

5

A184539

SPACER

- reversible fan

1шт.

6

J911563

V-BELT,27.92mm W x 1536.7mm L, 8 Ribs

3.56 mm W x 1536.70 mm L, 8 Ribs, Fan

1шт.

7

D140524

FLEXIBLE COUPLING,13T

COUPLING - flexible, crankshaft

1шт.

8

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

- hex, 7/16 NC x 1-1/2 inch

4шт.

9

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- special, hardened

4шт.
