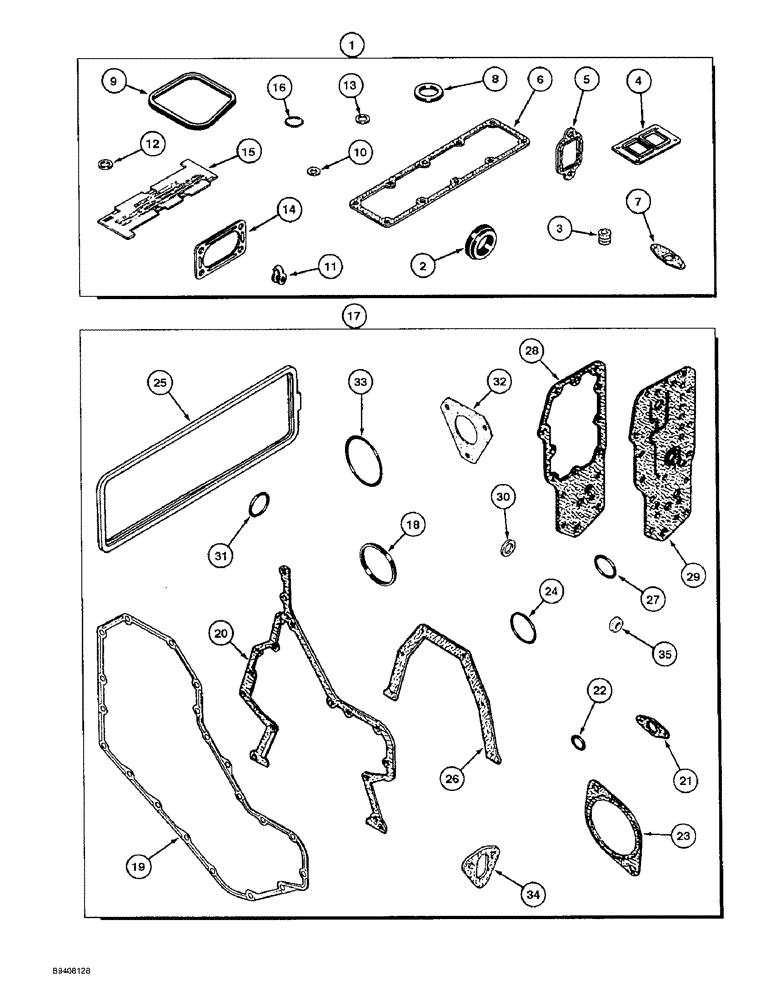

Запчасти Case 550E (2-38) - GASKET KITS, 4-390 ENGINE, 4T-390 ENGINE, VALVE GRIND (02) - ENGINE

1

A77792

GASKET KIT

KIT - gasket, valve grind, engine

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket, item 2, Figure 2-16.

1шт.

2

J923331

GASKET

- thermostat housing, replaces J920020 gasket

1шт.

3

J901097

SEAL

- valve, intake and exhaust valve guides

8шт.

4

J901356

GASKET,0.5mm Thk

-, Serial Range: turbocharger-manifold

1шт.

5

J905443

MANIFOLD GASKET

- exhaust manifold

4шт.

6

J914028

GASKET

- intake manifold

1шт.

7

J914388

GASKET

- turbo oil drain tube

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

- oil fill cap

1шт.

9

J902666

GASKET

SEAL - rocker arm cover

4шт.

10

J900808

SEAL

- injector nozzle, 9 mm injector tip, not used in this application

4шт.

11

J903380

SEAL

- connector, fuel return manifold tube

4шт.

12

J906659

SEAL

- injector nozzle, 7 mm injector tip, replaces J920174 seal

4шт.

13

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

O-RING - sealing, body to nut, injector body, 7 mm

4шт.

14

J914856

GASKET,1.02mm Thk

- air crossover connection

1шт.

15

J823921

GAUGE

- cylinder head, bolt length

1шт.

16

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt

4шт.

17

A77671

GASKET KIT

KIT - gasket, engine block, cylinder

1шт.

For complete engine overhaul, order 1 cylinder block kit, 1 valve grind kit, 1 oil pan kit, Figure 2-16, front and rear crankshaft seal kit, Figure 2-30, and required cylinder head gasket, Figure 2-16.

1шт.

18

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- front access cover, cylinder block

1шт.

19

J914385

GASKET,1.02mm Thk

- front cover, to housing, cylinder block

1шт.

20

J916131

GASKET

- gear housing, timing, cylinder block

1шт.

21

J905595

GASKET

- timing pin housing, cylinder block

1шт.

22

J913994

O-RING

- sealing, timing pin, cylinder block

1шт.

23

J919601

GASKET

- access cover plate, accessory drive, cylinder block

1шт.

24

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Water pump to block, cylinder -341, 70 Duro, 3.475" ID x .210" Thk

1шт.

25

J928831

GASKET

- tappet cover, replaces J922078 gasket, cylinder block

1шт.

26

J928493

GASKET

- rear cover retainer, crankshaft, replaces J914386 gasket, cylinder block

1шт.

27

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID, water inlet connection, cylinder block

1шт.

28

J926760

GASKET

- oil cooler core, replaces J918256 gasket, cylinder block

1шт.

29

J918257

GASKET

- filter head, oil, cylinder block

1шт.

30

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing, plug, oil pan, cylinder block

1шт.

31

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - sealing, 38 mm ID, engine oil fill tube, cylinder block

1шт.

32

J914389

GASKET

- pump mounting, fuel, cylinder block

1шт.

33

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - flywheel housing to block, cylinder

1шт.

34

J923054

GASKET

- mounting, fuel transfer pump, replaces J914304 gasket, cylinder block

1шт.

35

J900267

SEAL

- cover bolt, cylinder block

4шт.
