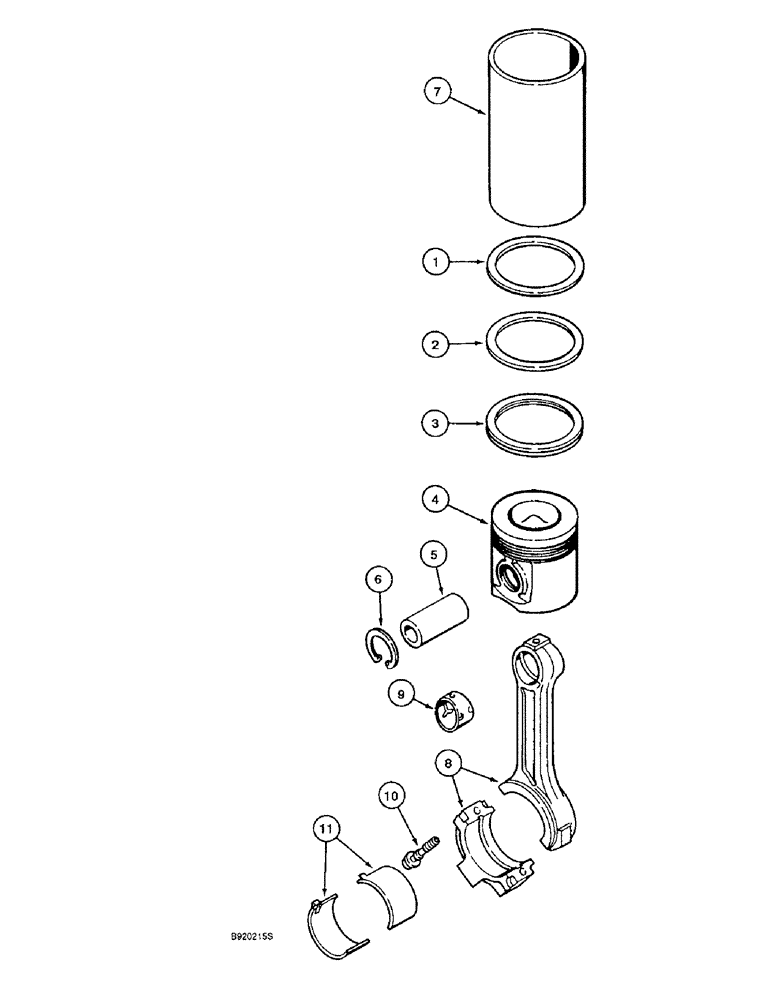

Запчасти Case 550E (2-34) - PISTONS, 4-390 ENGINE (02) - ENGINE

A77410

PISTON

KIT - piston, standard

4шт.

A77401

PISTON RING SET

KIT - ring, standard

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, standard (Stamped 6223)

1шт.

5

J901793

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

- snap

2шт.

A77411

PISTON

KIT - piston, 0.5 mm oversize

4шт.

A77463

PISTON RING SET

KIT - ring, 0.5 mm oversize

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, 0.5 mm oversize (Stamped 6209)

1шт.

5

J901793

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

- snap

2шт.

A77412

PISTON

KIT - piston, 1.0 mm oversize

4шт.

A77464

PISTON RING SET

KIT - ring, 1.0 mm oversize

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, 1.0 mm oversize (Stamped 6208)

1шт.

5

J901793

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

- snap

2шт.

7

J904166

SLEEVE

LINER - piston, used only in engine block repair (When liner is installed, use A77818 piston kit)

1шт.

J925232

ROD, CONNECTING

ROD ASSEMBLY - connecting, new, replaces J901569 rod assembly

4шт.

JR925232

ROD

Assembly - connecting, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly, replaces JR901569 rod assembly

4шт.

JC925232

CORE-ROD CONNECTING

Return Number- use this part number to return connecting rod for credit when using a remanufactured assembly, replaces JC901569

4шт.

84145405R

REMAN-CONNECTING ROD

550E, Reman For New PN J925232

4шт.

84145405C

CORE-ROD CONNECTING

Return Number

4шт.

JR942581

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

4шт.

JC942581

CORE-ROD CONNECTING

Return Number

4шт.

JC901569

CORE-ROD CONNECTING

Return Number, Connecting Rod

4шт.

8

NSS

NOT SOLD SEPARAT

ROD - connecting, includes both halves

1шт.

9

J901085

BUSHING

- connecting rod

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT - hex, special, connecting rod

2шт.

11

A77465

BEARING SET

KIT - bearing, upper and lower set, standard, connecting rod

4шт.

11

A77466

BEARING SET

KIT - bearing, upper and lower set, 0.25 mm undersize, connecting rod

4шт.

11

A77467

BEARING LINER

KIT - bearing, upper and lower set, 0.50 mm undersize, connecting rod

4шт.

11

A77468

BEARING SET

KIT - bearing, upper and lower set, 0.75 mm undersize, connecting rod

4шт.

11

A77469

BEARING SET

KIT - bearing, upper and lower set, 1.00 mm undersize, connecting rod

4шт.
