Запчасти Case 550E (2-26) - CYLINDER BLOCK, 4T-390 ENGINE (02) - ENGINE

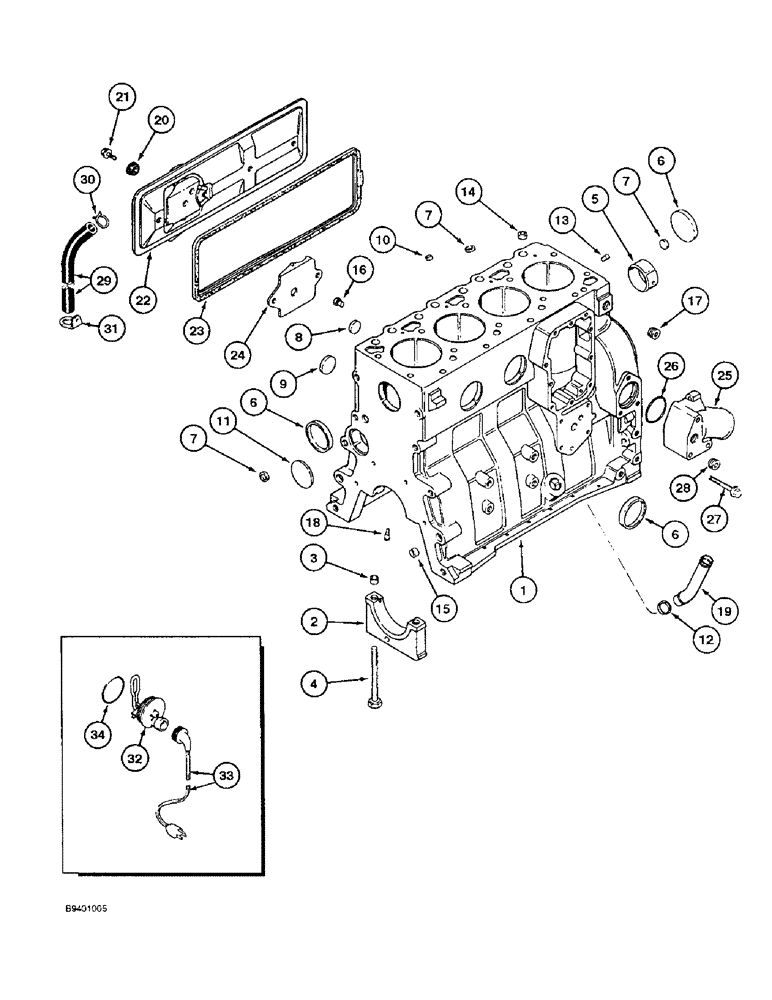

Схема запчастей Case 550E - (2-26) - CYLINDER BLOCK, 4T-390 ENGINE (02) - ENGINE
8
12
27
2
30
31
6
16
1
11
5
18
26
33
3
7
10
9
19
21
34
6
15
17
4
13
22
23
6
29
25
28
32
7
24
20
14
7

Артикул

Название

Примечание

Количество

1989047C2

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY - complete, 4T-390, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe, for service order basic engine below, for service order 1989092C2 basic engine below

1шт.

1989092C2

BASIC ENGINE

1шт.

ENGINE ASSEMBLY basic, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front pulley, belt tensioner, turbocharger and aftercooler

1шт.

1989092C3R

REMAN-BASIC ENGINE

ENGINE ASSEMBLY basic, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front pulley, belt tensioner, turbocharger and aftercooler

1шт.

1989092C3C

CORE-BASIC ENGINE

Return Part Number

1шт.

AR77759

SKELETON ENGINE

Block Assembly - short, remanufactured, component parts on this figure do not apply to the remanufactured assembly, no longer available, for service order J920387 block assembly

1шт.

AC77758

CORE-ENGINE

Return Part Number, use this part number to return short block core for credit when using a remanufactured assembly

1шт.

J920387

SKELETON ENGINE

BLOCK ASSEMBLY - short, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings

1шт.

Order J920399 hardware kit when ordering J920387 block assembly or J916254 stripped block.

1шт.

JR933236

REMAN-SHORT ENGINE

1шт.

JC933236

CORE-SHORT ENGINE

Return Part Number

1шт.

1

J916254

BLOCK ASSY.

BLOCK ASSEMBLY - stripped, engine

1шт.

Order J920399 hardware kit when ordering J920387 block assembly or J916254 stripped block.

1шт.

2

J900967

BEARING CAP

CAP - main bearing

5шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm OD, main bearing, Serial Range: cap-block

10шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

BOLT - main bearing cap, special

10шт.

5

REF

INSTRUCTION

BUSHING - camshaft front, see figure 2-20, item 2

1шт.

6

A77782

PLUG

PLUG - expansion, 58 mm OD

1шт.

7

J900956

PLUG

PLUG - expansion, 18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

PLUG, , Replaces A77539 plug Cup, 1", Stainless

2шт.

PJ920399

SHIN

KIT - block hardware

1шт.

Order J920399 hardware kit when ordering J920387 block assembly or J916254 stripped block.

1шт.

9

J900958

PLUG

PLUG - expansion, 32 mm OD

2шт.

10

J900955

PLUG

PLUG - expansion, 10 mm OD

1шт.

11

172599

PLUG,Exp, 2 3/8"

PLUG - expansion, Welch, 60 mm OD, replaces J900687 plug

1шт.

12

J920706

PLUG

PLUG - expansion, 22 mm OD, replaces A77439 plug, not used in this application, item 19, J903744 turbocharger oil drain tube is installed in this port

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, 16 mm long, locating

2шт.

14

J902343

DOWEL

RING - dowel, 16 mm OD

2шт.

15

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.

16

J906619

PLUG,1/8" - 27

PLUG - hex, 1/8 inch PT

2шт.

17

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

1шт.

18

J919002

NOZZLE CAP

NOZZLE - piston cooling

4шт.

19

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

20

J900267

SEAL

SEAL - cover bolt

4шт.

Выбрано товаров: 34
