Запчасти Case 550E (2-22) - CYLINDER BLOCK, 4-390 ENGINE (02) - ENGINE

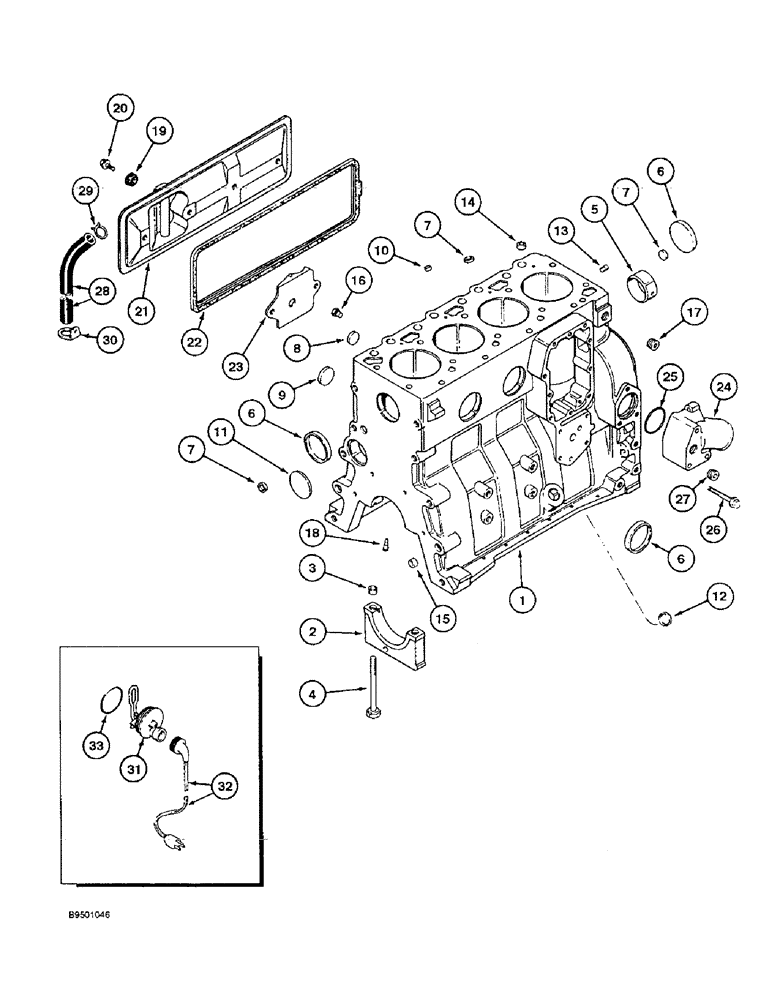

Схема запчастей Case 550E - (2-22) - CYLINDER BLOCK, 4-390 ENGINE (02) - ENGINE
31
19
22
29
4
24
7
6
7
25
6
28
23
32
12
26
3
1
8
9
11
17
15
18
33
14
6
16
10
2
13
20
21
5
27
7
30

Артикул

Название

Примечание

Количество

1989046C2

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY - complete, 4-390, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe, for service order basic engine below

1шт.

1989046C2R

REMAN-REPLACEMENT EN

Reman For New P/N 1989046C2

1шт.

1989046C2C

CORE-REPLACEMENT ENG

Return Part Number, Complete

1шт.

1989091C2

BASIC ENGINE

ENGINE ASSEMBLY - basic, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front crank pulley and belt tensioner

1шт.

1989091C3R

REMAN-BASIC ENGINE

Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front crank pulley and belt tensioner .Built with 3 bolt injection pump front housing

1шт.

1989091C3C

CORE-BASIC ENGINE

Return Number

1шт.

JR933238

REMAN-SHORT ENGINE

Reman For New P/N 1989046C2

1шт.

JC933238

CORE-SHORT ENGINE

Return Part Number

1шт.

AR77758

BLOCK ASSY.

Block Assembly - short, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly, no longer available, order JR920384 remanufactured short block

1шт.

AC77758

CORE-ENGINE

Return Part Number - use this part number to return short block core for credit when using a remanufactured assembly

1шт.

A77758

SKELETON ENGINE

KIT - short block, no longer available, order J920384 short block and J920399 hardware kit

1шт.

J920384

BLOCK ASSY.

BLOCK ASSEMBLY - short, engine, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings

1шт.

Order J920399 hardware kit when ordering J920384 block assembly or J916254 stripped block.

1шт.

A77757

CRANKCASE

KIT - stripped block, no longer available, order J916254 stripped block and J920399 hardware kit

1шт.

1

J916254

BLOCK ASSY.

BLOCK ASSEMBLY - stripped, engine

1шт.

Order J920399 hardware kit when ordering J920384 block assembly or J916254 stripped block.

1шт.

2

J900967

BEARING CAP

CAP - main bearing

5шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm OD

10шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

BOLT - main bearing cap, special

10шт.

5

REF

INSTRUCTION

BUSHING - camshaft front, see figure 2-20, item 2

1шт.

6

A77782

PLUG

PLUG - expansion, 58 mm OD

4шт.

7

J900956

PLUG

PLUG - expansion, 18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

PLUG, , Replaces A77539 plug Cup, 1", Stainless

2шт.

PJ920399

SHIN

KIT - block hardware

1шт.

Order J920399 hardware kit when ordering J920384 block assembly or J916254 stripped block.

1шт.

9

J900958

PLUG

PLUG - expansion, 32 mm OD

2шт.

10

J900955

PLUG

PLUG - expansion, 10 mm OD

1шт.

11

172599

PLUG,Exp, 2 3/8"

PLUG - expansion, Welch, 60 mm OD, replaces J900687 plug

1шт.

12

J920706

PLUG

PLUG - expansion, 22 mm OD, replaces A77439 plug

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, 16 mm long

2шт.

14

J902343

DOWEL

RING - dowel, 16 mm OD

2шт.

15

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.

16

J906619

PLUG,1/8" - 27

PLUG - hex, 1/8 inch PT

2шт.

17

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

1шт.

18

J919002

NOZZLE CAP

4шт.

19

J900267

SEAL

SEAL - cover bolt

4шт.

20

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 20 mm

4шт.

21

J925680

COVER

COVER - tappet

1шт.

22

J928831

GASKET

GASKET - tappet cover, replaces J922078 gasket

1шт.

23

J907586

BAFFLE

BAFFLE - tappet cover

1шт.

24

J903102

CONNECTION

CONNECTION - water inlet

1шт.

25

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID

1шт.

26

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

BOLT - heavy hex flange, 10 - 1.5 x 75 mm, class 10.9

3шт.

27

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

2шт.

28

J918612

TUBE,360.00 mm

1шт.

29

J904230

CLAMP,25.4mm

CLAMP - hose

1шт.

30

J909670

CLIP

CLIP - retaining

1шт.

A77634

KIT

KIT - engine block heater

1шт.

31

NSS

NOT SOLD SEPARAT

ELEMENT - engine heater, 120 volt

1шт.

32

J905113

CABLE

CABLE - engine block heater, 6 feet long

1шт.

33

J910517

O-RING

O-RING - heater sealing, engine block

1шт.

Выбрано товаров: 51
