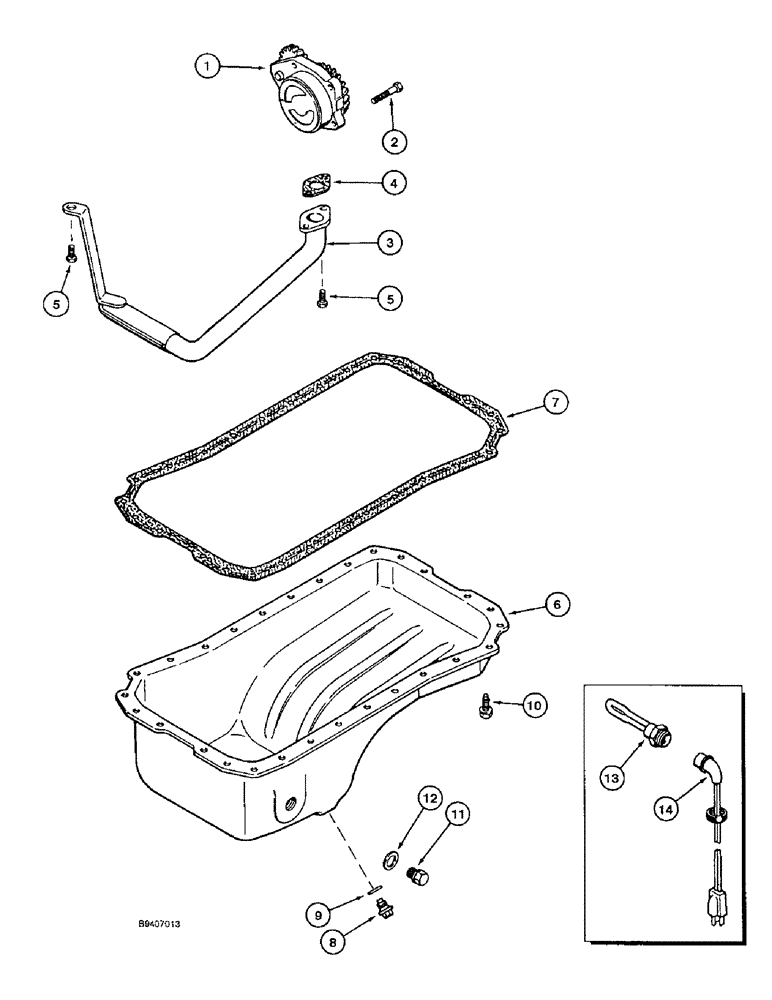

Запчасти Case 550E (2-14) - OIL PUMP AND OIL PAN, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE

1

J926202

PUMP, ENGINE OIL

PUMP - oil, engine, new, replaces J918211 pump

1шт.

JR926202

PUMP

PUMP ASSEMBLY - oil, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly, replaces JR918211 pump assembly

1шт.

JR930336

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC926202

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly, replaces JC918211 pump assembly

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT, HH, CL 8.8, M8 x 1.25 x 30

4шт.

3

J905205

TUBE,1" OD

TUBE - suction, oil

1шт.

4

J914383

GASKET

GASKET - mounting, oil suction tube

1шт.

Part of Gasket Oil Pan Kit P/N A77673

1шт.

5

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm

3шт.

6

J901049

PAN, ENGINE OIL

PAN, OIL PAN - oil, engine

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET - oil pan, order A77673 gasket kit for service

1шт.

Part of Gasket Oil Pan Kit P/N A77673

1шт.

8

J924147

PLUG,M18 x 1.5

PLUG - hex magnetic, special, 18 mm - 1.5, oil drain, replaces J911638 plug

1шт.

9

J920773

SEALING WASHER

WASHER - sealing, drain plug

1шт.

Part of Gasket Oil Pan Kit P/N A77673

1шт.

10

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

SCREW - hex flange cap, special, M8 x 25, if used

28шт.

10

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

BOLT - hex flange, special, 8 - 1.25 x 25 mm, Used with J907537 washer, if used

28шт.

10a

J907537

SPRING WASHER

WASHER - Belleville spring, oil pan bolt, used with J907860 bolt, if used, not shown

28шт.

11

J924148

PLUG,M22 x 1.5

PLUG - hex magnetic, special, 22 mm - 1.5, pipe, heater hole, replaces J904386 plug

1шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - sealing, plug

1шт.

When engine oil heater kit is ordered, item 12, J902425 washer must also be ordered.

1шт.

A77673

GASKET KIT

KIT - gasket, oil pan, Includes: Ref. 4, 7 and 9.

1шт.

A77490

KIT

KIT - heater, engine oil

1шт.

When engine oil heater kit is ordered, item 12, J902425 washer must also be ordered.

1шт.

13

NSS

NOT SOLD SEPARAT

ELEMENT - heater, 120 volt, engine oil

1шт.

14

J905113

CABLE

CABLE - engine block heater, 6 feet long, oil

1шт.
