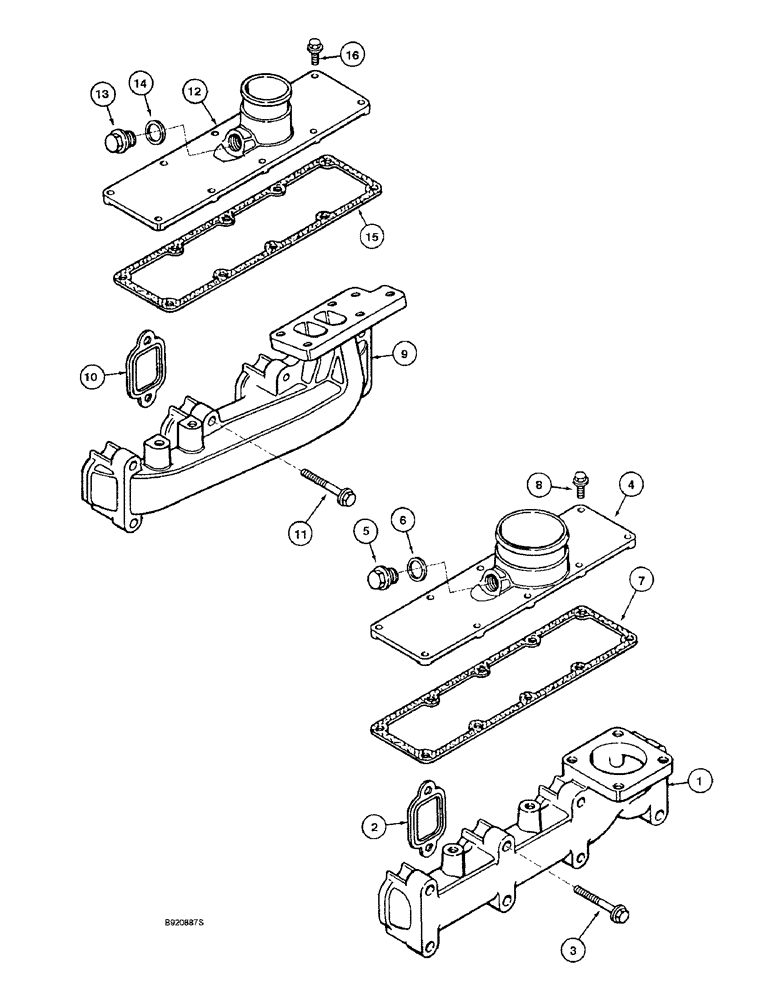

Запчасти Case 550E (2-06) - MANIFOLDS - EXHAUST AND INTAKE, 4-390 ENGINE, 4T-390 ENGINE, (02) - ENGINE

1

J901223

MANIFOLD

- exhaust, Naturally Aspirated

1шт.

2

J905443

MANIFOLD GASKET

- exhaust manifold

4шт.

3

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

- heavy hex flange, 10 - 1.50 x 65 mm, class 10.9

8шт.

A77415

COVER

KIT - intake manifold, Naturally Aspirated, no longer available, order components separately

1шт.

4

J904340

COVER

- intake

1шт.

5

J907185

PLUG

- manifold, remove to install cold start

1шт.

6

J906773

WASHER

- plug sealing

1шт.

7

J914028

GASKET

- intake manifold

1шт.

8

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special Hex Flg Hd, M8 x 1.25 x 25

10шт.

9

J901919

MANIFOLD

- exhaust, Turbocharged

1шт.

10

J905443

MANIFOLD GASKET

- exhaust manifold

4шт.

11

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

- heavy hex flange, 10 - 1.50 x 65 mm, class 10.9

8шт.

A77416

COVER

KIT - intake manifold, Turbocharged, no longer available, order components separately

1шт.

12

J904339

COVER

- intake

1шт.

13

J907185

PLUG

- manifold, remove to install cold start

1шт.

14

J906773

WASHER

- plug sealing

1шт.

15

J914028

GASKET

- intake manifold

1шт.

16

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special Hex Flg Hd, M8 x 1.25 x 25

10шт.
