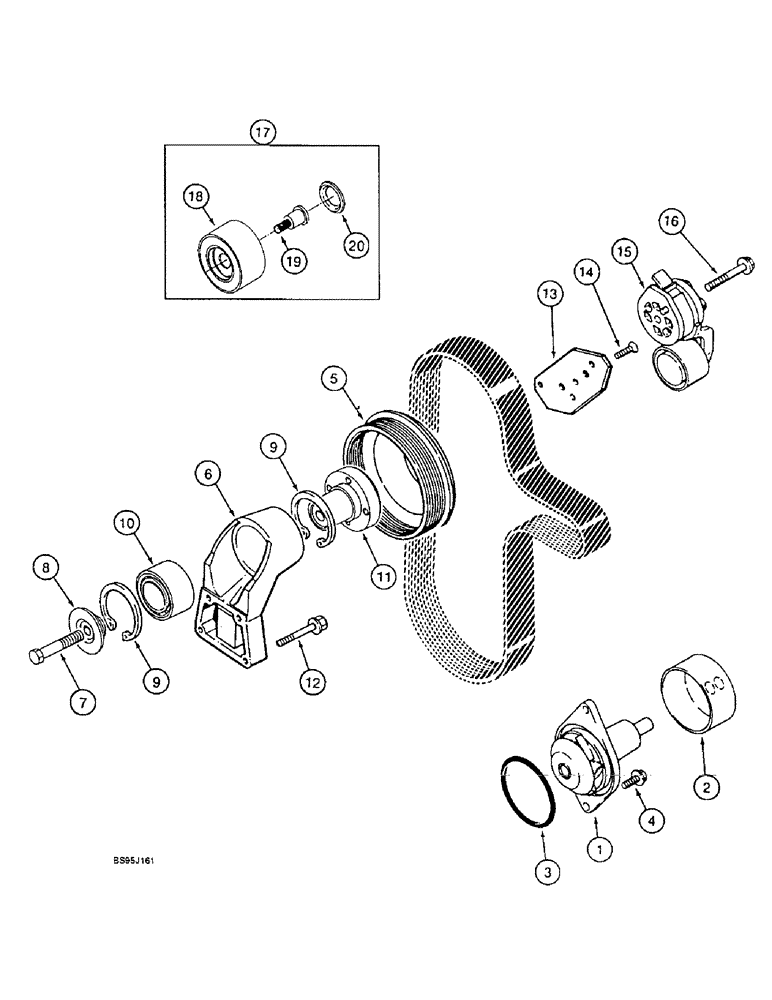

Запчасти Case 550E (2-02) - WATER PUMP SYSTEM, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE

A77703

PUMP, WATER

KIT - water pump

1шт.

A77703GV

WATER PUMP

Value, Water Pump Assy.

1шт.

J286278R

REMAN-WATER PUMP

550E

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP - water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - water pump

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J914459

PULLEY

- fan

1шт.

6

J911922

SUPPORT ASSY.

BRACKET - fan pulley, 60 mm bolt circle

1шт.

7

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

- hex, special, 10 - 1.5 x 70 mm, class 12.9

1шт.

8

J923044

RETAINER

- fan hub

1шт.

9

100-21250

SNAP RING,2.50", Int, #250

Ring, Snap, 2.50", Int, #250

2шт.

10

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

BEARING - ball

1шт.

11

J911924

HUB

- fan

1шт.

12

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 40 mm, 8.8

4шт.

13

J919736

SUPPORT

BRACKET - belt tension

1шт.

14

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- flat head cap, hex socket, special, 8 - 1.25 x 25 mm

2шт.

15

J918944

BELT TENSIONER

TENSIONER - belt, replaces J914086 tensioner

1шт.

16

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 70 mm, class 10.9

1шт.

17

A77817

KIT

KIT - belt tensioner pulley, used to replace pulley of J918944 belt tensioner, item 15

1шт.

18

NSS

NOT SOLD SEPARAT

PULLEY - belt tensioner

1шт.

19

NSS

NOT SOLD SEPARAT

BOLT - pulley

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - dust

1шт.
