Запчасти Case 550E (1-14) - PICTORIAL INDEX, DOZER LIFT, TILT AND ANGLE HYDRAULIC CIRCUITS (00) - PICTORIAL INDEX

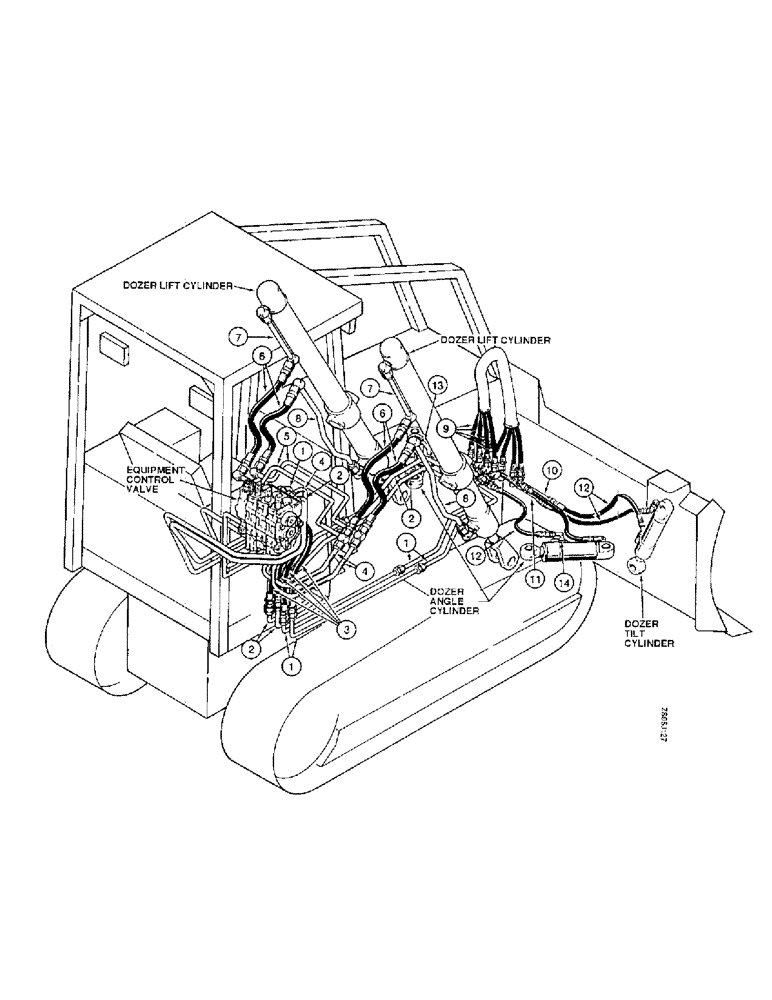

Схема запчастей Case 550E - (1-14) - PICTORIAL INDEX, DOZER LIFT, TILT AND ANGLE HYDRAULIC CIRCUITS (00) - PICTORIAL INDEX
2
8
11
12
14
13
10
12
1
7
8
3
8
2
6
1
1
7
2
4
9
4
5

Артикул

Название

Примечание

Количество

1

Tilt Tubes from Control Valve to Grille, figure 8-13

1шт.

2

Angle Tubes from Control Valve to Grille, figure 8-13

1шт.

3

Intermediate Tilt and Angle Hoses, figure 8-13

1шт.

4

Lift Tubes from Control Valve, figure 8-11

1шт.

5

Crossover Tubes to Lift Cylinders, figure 8-11

1шт.

6

Hoses to Lift Cylinders, figure 8-11

1шт.

7

Tube to Closed End of Lift Cylinders, figure 8-11

1шт.

8

Tube to Rod End of Lift Cylinders, figure 8-11

1шт.

9

Tilt and Angle Hoses from Grille to Blade, figure 8-15

1шт.

10

Tube to Rod End of Tilt Cylinder, figure 8-15

1шт.

11

Tube to Closed End of Tilt Cylinde, figure 8-15

1шт.

12

Hoses to Tilt and Angle Cylinders, figure 8-15

1шт.

13

Tube to Rod end of Left-Hand Angle Cylinder, figure 8-15

1шт.

14

Tube to Rod end of Right-Hand Angle Cylinder, figure 8-15

1шт.

Выбрано товаров: 14
