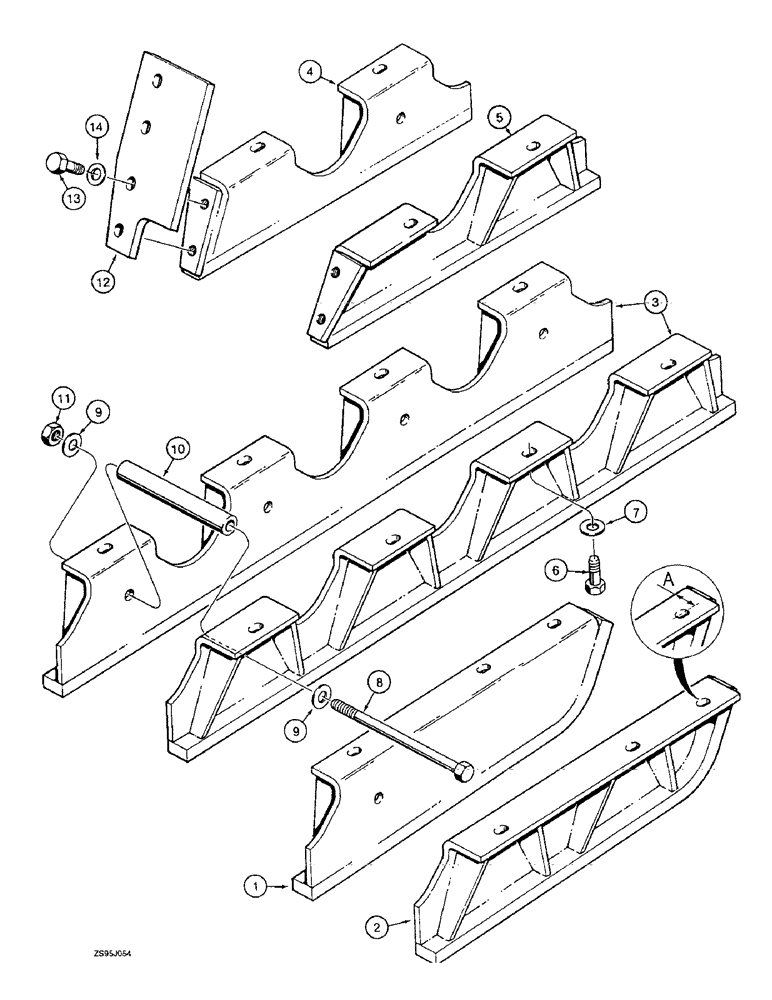

Запчасти Case 550E (5-10) - TRACK GUARDS, TRACK GUARDS WITH XD2 AXD3 MEASURE 38.1 MM, (11) - TRACKS/STEERING

1

R58387

GUIDE

GUARD - track, front, left-hand

2шт.

2

R58386

GUIDE

GUARD - track, front, right-hand

2шт.

3

R55612

GUARD

- track, center

4шт.

4

R47465

GUARD

- track, rear, left-hand

2шт.

5

R47466

GUARD

- track, rear, right-hand

2шт.

6

106-9820

LOCK BOLT,Locking, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, Locking, 1/2"-13 x 1 1/4", G5, Full Thd

20шт.

7

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

20шт.

8

413-8136

BOLT,Hex, 1/2" - 13 x 8-1/2", Gr 5

- hex, 1/2 NC x 8-1/2 inch

4шт.

9

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

20шт.

10

R36665

GUARD

SPACER - track guards 7 inch (178 mm) long

4шт.

11

231-4218

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

4шт.

12

R57458

COVER

GUARD - rear, sprocket

4шт.

13

106-9820

LOCK BOLT,Locking, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, Locking, 1/2"-13 x 1 1/4", G5, Full Thd

16шт.

14

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

16шт.

1

141195A1

GUARD

- track, front, left-hand, with \xd2 A\xd3 measure 35.1mm

2шт.

2

141194A1

GUARD

- track, front, right-hand, with \xd2 A\xd3 measure 35.1 mm

2шт.

3

141196A1

GUARD

- track, center, with \xd2 A\xd3 measure 35.1 mm

4шт.

4

141198A1

GUARD

- track, rear, left-hand, with \xd2 A\xd3 measure 35.1 mm

2шт.

5

141197A1

GUARD

- track, rear, right-hand, with \xd2 A\xd3 measure 35.1 mm

2шт.

6

106-9820

LOCK BOLT,Locking, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, Locking, 1/2"-13 x 1 1/4", G5, Full Thd, Track guards with \xd2 A\xd3 measure 35.1 mm

20шт.

7

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened, Track guards with \xd2 A\xd3 measure 35.1 mm

20шт.

8

413-12144

BOLT,Hex, 3/4" - 10 x 9", Gr 5

- hex, 3/4 NC x 9 inch, track guards \xd2 A\xd3 measure 35.1 mm

4шт.

9

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened, Track guards \xd2 A\xd3 measure 35.1 mm

20шт.

10

141188A1

SPACER

- track guards 7-1/4 inch (184 mm) long, with \xd2 A\xd3 measure 35.1 mm

4шт.

11

231-41112

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC, track guards with \xd2 A\xd3 measure 35.1 mm

4шт.

12

R57458

COVER

GUARD - rear, sprocket, track with \xd2 A\xd3 measure 35.1 mm

4шт.

13

106-9820

LOCK BOLT,Locking, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, Locking, 1/2"-13 x 1 1/4", G5, Full Thd, Track guards with \xd2 A\xd3 measure 35.1 mm

16шт.

14

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened, Track guards with \xd2 A\xd3 measure 35.1 mm

16шт.
