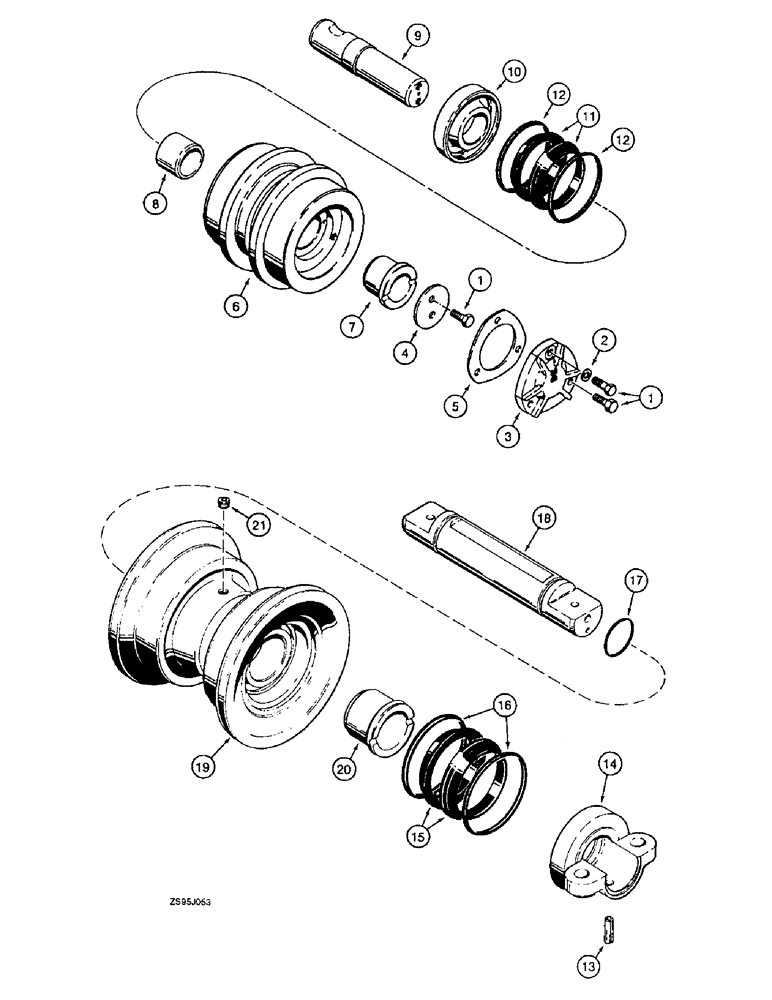

Запчасти Case 550E (5-08) - ROLLER ASSEMBLIES, TRACK CARRIER ROLLER ASSEMBLY (11) - TRACKS/STEERING

R33965

ROLLER

ASSEMBLY - carrier

2шт.

1

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

5шт.

2

D32117

COPPER WASHER

WASHER, COPPER

1шт.

3

R33959

CYLINDER END CAP

CAP - end carrier roller

1шт.

4

R33960

PLATE

- shaft retainer

1шт.

5

R33964

GASKET

- end cover

1шт.

R33967

CARRIER

HUB ASSEMBLY - carrier roller

1шт.

6

NSS

NOT SOLD SEPARAT

HUB - carrier roller

1шт.

7

R33951

BUSHING

- carrier roller, with flange

1шт.

8

R33958

BUSHING

- carrier roller, without flange

1шт.

R33969

SHAFT

ASSEMBLY - carrier roller

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT - carrier roller

1шт.

10

R33962

RETAINER

- seal

1шт.

R33607

SEAL

ASSEMBLY - face

2шт.

11

NSS

NOT SOLD SEPARAT

RING - seal

2шт.

12

N6847

O-RING,75mm ID x 8mm Width

- face seal

2шт.

R57357

TRACK ROLLER

ROLLER ASSEMBLY - track

12шт.

13

R33570

PIN

- roll, bracket retaining, track roller assembly

2шт.

14

R33568

BRACKET

- track roller mounting and shaft support

2шт.

S113075

SEAL

- oil, track roller assembly

2шт.

15

NSS

NOT SOLD SEPARAT

RING - seal, track roller assembly

2шт.

16

NSS

NOT SOLD SEPARAT

O-RING - face seal, track roller assembly

2шт.

17

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

Track roller assembly -224, 70 Duro, 1.734" ID x .139" Thk

2шт.

18

R33569

SHAFT

- track roller assembly

1шт.

R57360

ROLLER ASSY.

ROLLER ASSEMBLY - track roller

1шт.

19

NSS

NOT SOLD SEPARAT

HUB - track roller assembly

1шт.

20

R33556

BUSHING,50.28mm ID x 70.5mm OD x 46mm L

- flanged, hub, track roller assembly

2шт.

21

R33557

PLUG

- hex socket, hub, track roller assembly

1шт.
