(5-06) - IDLER ASSEMBLIES, R52404 IDLER ASSEMBLY, LGP 64 INCH GAUGE MODELS

Запчасти Case 550E (5-06) - IDLER ASSEMBLIES, R52404 IDLER ASSEMBLY, LGP 64 INCH GAUGE MODELS (11) - TRACKS/STEERING

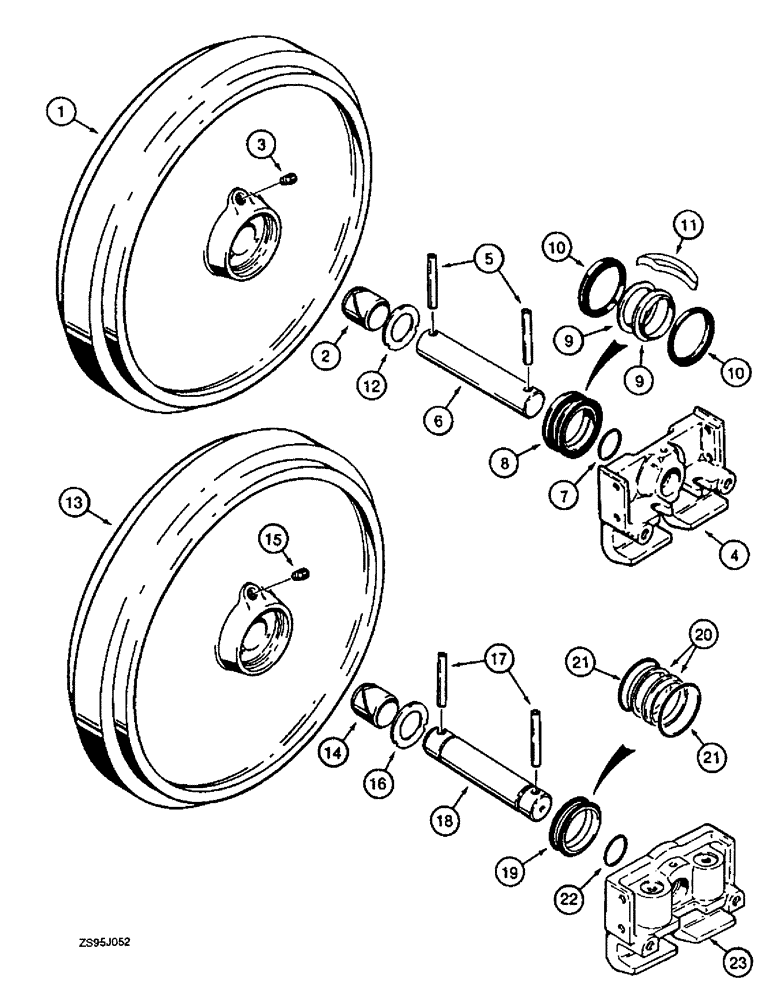

Схема запчастей Case 550E - (5-06) - IDLER ASSEMBLIES, R52404 IDLER ASSEMBLY, LGP 64 INCH GAUGE MODELS (11) - TRACKS/STEERING
23
20
10
22
14
11
2
21
7
9
8
12
18
3
16
1
13
10
9
19
17
21
5
4
15
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

R52404

STEERING IDLER

IDLER ASSEMBLY - track, see note below

2шт.

Replace R52404 idler assembly with R58710 idler assembly and 144392A2 idler kit, see Figure 5-04 for idler kit items.

1шт.

R50452

BUSHING

HUB ASSEMBLY - with bushing

1шт.

1

NSS

NOT SOLD SEPARAT

HUB - idler

1шт.

2

R24542

BUSHING,44.51mm ID x 49.23mm OD x 38.1mm L

- split

2шт.

3

221-841

PLUG

- hex socket, 1/4 inch PT

1шт.

4

R52402

BRACKET

- mounting

2шт.

5

R50570

GROOVED PIN,1/2" x 3 1/2", Type A, Hardened

Pin, Grooved, 1/2" x 3 1/2", Type A, Hardened

2шт.

6

R46697

SHAFT

- idler

1шт.

7

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

2шт.

8

R39273

SEAL

ASSEMBLY - face

2шт.

9

NSS

NOT SOLD SEPARAT

RING - seal retaining

2шт.

D36826

SEAL KIT

KIT - repair

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

11

NSS

NOT SOLD SEPARAT

RETAINER - plastic

1шт.

12

D35266

THRUST WASHER,44.96mm ID x 63.5mm OD x 1.58mm Thk

- thrust, idler

2шт.

R58710

FRONT IDLER

IDLER ASSEMBLY - track, long track 53 inch gauge models

2шт.

R58709

FRONT IDLER

HUB ASSEMBLY - with bushing, long track 53 inch gauge models

1шт.

13

NSS

NOT SOLD SEPARAT

HUB - idler, long track 53 inch gauge models

1шт.

14

R24542

BUSHING,44.51mm ID x 49.23mm OD x 38.1mm L

- split, long track 53 inch gauge models

2шт.

15

R33557

PLUG

- hex socket, tapered, long track 53 inch gauge models

1шт.

16

D35266

THRUST WASHER,44.96mm ID x 63.5mm OD x 1.58mm Thk

- thrust, idler, long track 53 inch gauge models

2шт.

17

R58807

GROOVED PIN,1/2" x 2 3/4", Type A, Hardened

Pin, Grooved, , shaft retaining, long track 53 inch gauge models 1/2" x 2 3/4", Type A, Hardened

2шт.

18

R58706

SHAFT

- idler, long track 53 inch gauge models

1шт.

19

R33607

SEAL

ASSEMBLY - face, long track 53 inch gauge models

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - metal, long track 53 inch gauge models

2шт.

21

N6847

O-RING,75mm ID x 8mm Width

- face seal, long track 53 inch gauge models

2шт.

22

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

Long track 53 inch gauge models -222, 70 Duro, 1.484" ID x .139" Thk

2шт.

23

R58707

BRACKET

- mounting, long track 53 inch gauge models

2шт.
