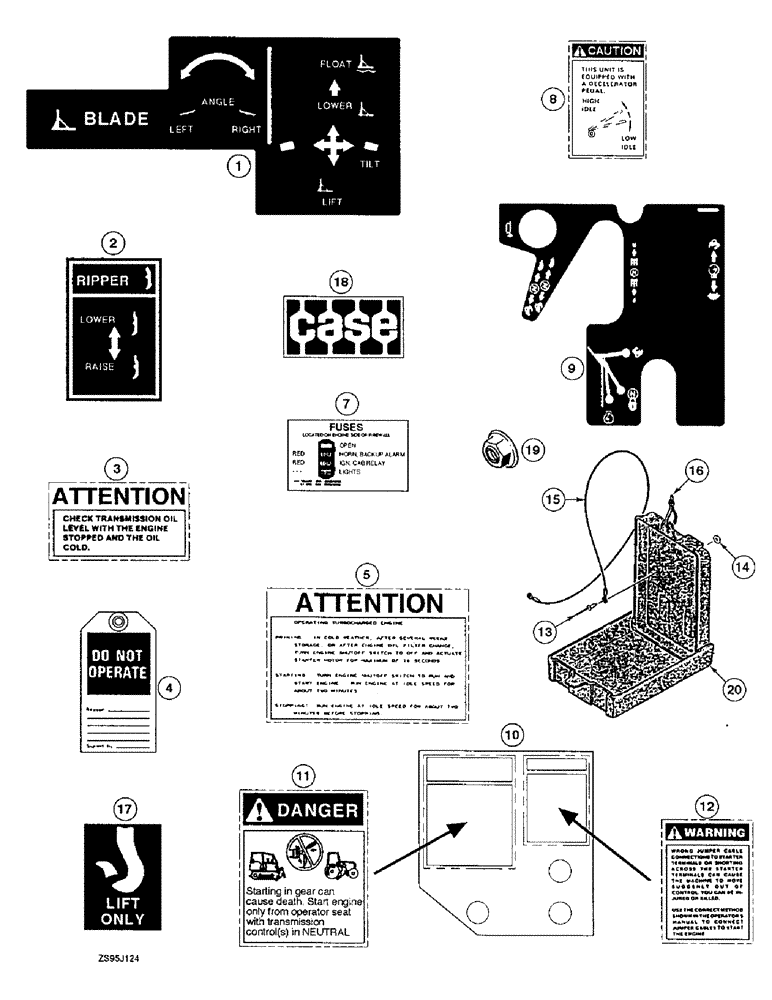

Запчасти Case 550E (9-40) - DECALS AND OPERATORS MANUAL BOX (09) - CHASSIS/ATTACHMENTS

102725A1

DECAL

KIT decals, Includes Ref. 1 through 17 on Figure 9-38

1шт.

No longer available, order components

1шт.

1

R58571

DECAL

- dozer blade control pattern, lift, angle and tilt

1шт.

2

R58447

DECAL

- ripper control pattern

1шт.

3

R50495

DECAL

- Attention, check the transmission oil level

1шт.

4

321-4614

TAG

- do not operate

1шт.

5

102436A1

DECAL

- Attention, operating turbocharged engine

1шт.

7

101759A1

DECAL

- fuses

1шт.

8

101638A1

DECAL

- Caution, this unit is equipped with a decelerator pedal

1шт.

9

101639A1

DECAL

- crawler controls, forward-neutral-reverse

1шт.

10

109697A1

PLATE ASSY.

PLATE - decal mounting

1шт.

11

321-7040

DANGER DECAL

DECAL, DANGER, Starting in gear can cause death (English)

1шт.

12

321-6872

DECAL

- warning, wrong jumper cable connections to starter terminals (English)

1шт.

13

151-522

RIVET,Pop, 3/16" x .575"

- break mandrel, 3/16 x 17/32 inch

3шт.

14

495-31020

WASHER,#10

flat (13/64" x 15/32" x 3/64") #10

3шт.

15

D126821

CABLE

CORD - manual retaining

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

17

321-3587

DECAL

- lift eye identification, if used

1шт.

18

321-4739

EMBLEM

- Case, metallic, on grille

1шт.

19

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - push-on type, 1/4 inch, used with item 10 metallic emblem

2шт.

20

R46464

CASE

BOX - operators manual

1шт.

21

124200A1

DECAL

- track adjustment procedure, used with rubber track models only, not shown

1шт.
