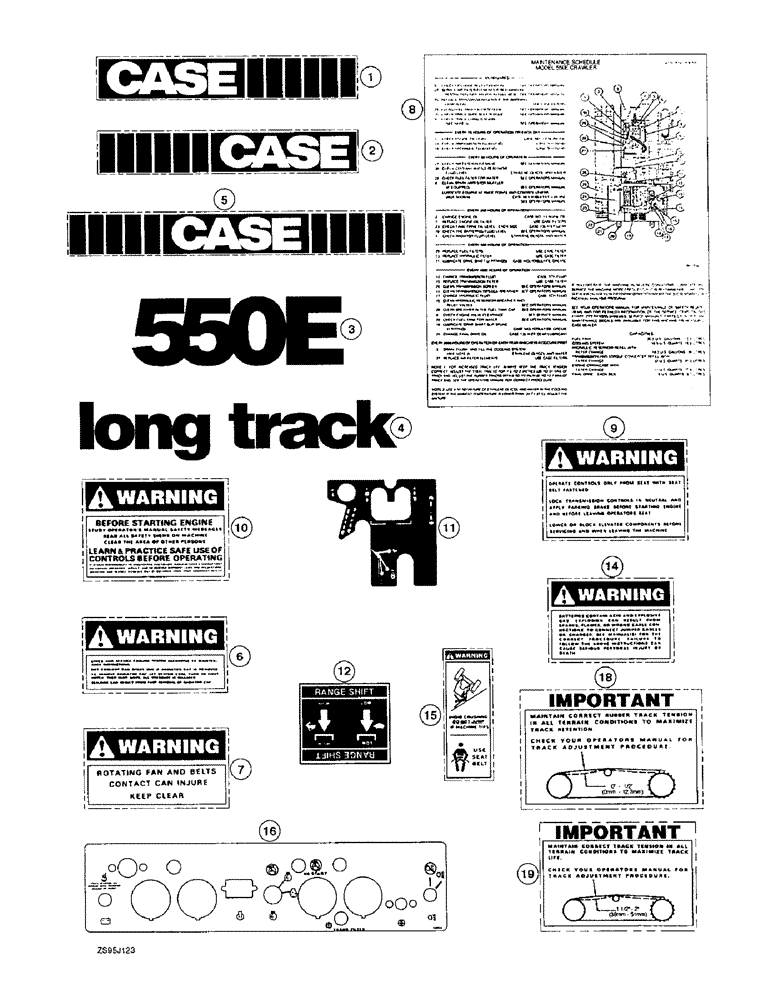

Запчасти Case 550E (9-38) - DECALS (09) - CHASSIS/ATTACHMENTS

102725A1

DECAL

KIT decals, Includes Ref. 1 through 12 on Figure 9-40.

1шт.

No longer available, order components

1шт.

1

R48483

DECAL

- Case, with seven treads to the right

1шт.

2

R48484

DECAL

- Case, with seven treads to the left

1шт.

3

R58126

DECAL

- 550E

2шт.

4

R56135

DECAL

- long track

2шт.

5

R48618

DECAL

- Case, with five treads on both sides, used on rear cover

1шт.

6

321-6672

DECAL

- Warning, check and service cooling system

1шт.

7

321-3596

DECAL

- Warning, rotating fan and belts

3шт.

8

8-80942

DECAL

- master maintenance schedule

1шт.

9

321-4188

DECAL

- Warning, operate controls only from seat

1шт.

10

321-3705

DECAL

- Warning, before starting engine

1шт.

11

R58572

DECAL

- crawler controls, forward-reverse, neutral start lock and engine speed

1шт.

12

R58391

DECAL

- range shift pattern, Range Shift

1шт.

13

H332536

PAD

STRIP - anti-skid, not shown

1шт.

14

321-6714

DECAL

- Warning, batteries contain acid and explosive gas

2шт.

15

321-7030

WARNING DECAL

DECAL, WARNING, Do Not Jump - Use Seat Belt

1шт.

16

R58270

DECAL

- instrument panel

1шт.

17

321-4192

DECAL

- warning, do not modify ROPS, not shown

1шт.

18

101313A1

DECAL

- Important, maintain correct rubber track tension, used with rubber track models only

1шт.

19

R57776

DECAL

- Important, maintain correct rubber track tension, used with steel track models only

1шт.
