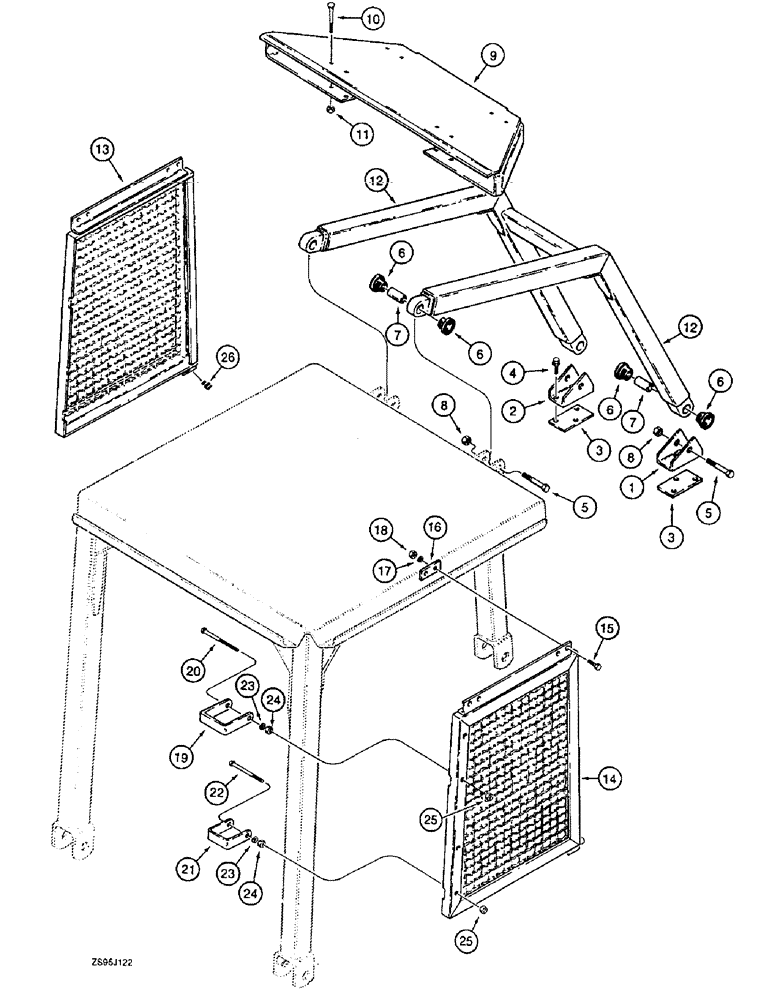

Запчасти Case 550E (9-36) - CANOPY SCREENS AND BRUSH GUARD (09) - CHASSIS/ATTACHMENTS

1

R40732

BRACKET

- right hand

1шт.

2

R40733

BRACKET

- left hand

1шт.

3

R41001

LARGE PLATE

PLATE - retaining, bracket

2шт.

4

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

6шт.

5

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch

4шт.

6

R40721

GROMMET

INSULATOR - rubber

8шт.

7

R40954

BUSHING

- brush guard mounting

4шт.

8

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

4шт.

9

R48972

DEFLECTOR

EXTENSION - canopy

1шт.

10

411-864

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 4", Gr 2

BOLT - carriage, 1/2 NC x 4 inch

8шт.

11

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

8шт.

12

R40743

GUARD

- brush

1шт.

13

101183A1

SCREEN

- side, left-hand

1шт.

14

101184A1

SCREEN

- side, right-hand

1шт.

15

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

8шт.

16

F44446

NOZZLE HOLDER

SPACER - upper, side screen

4шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

18

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

19

R50365

CLAMP

- side screen, rear, upper

2шт.

20

113-443

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

3-1/2 inch thread length Hex, 1/2"-13 x 6 1/2", G5

2шт.

21

F43788

CLAMP

- rear, lower

2шт.

22

113-2434

BOLT,Hex, 1/2" - 13 x 6", Gr 5

2-1/2 inch thread length Hex, 1/2"-13 x 6", G5

2шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

24

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

25

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

4шт.

26

R38089

CUSHION ASSY.

BUMPER - rubber, screen

4шт.
