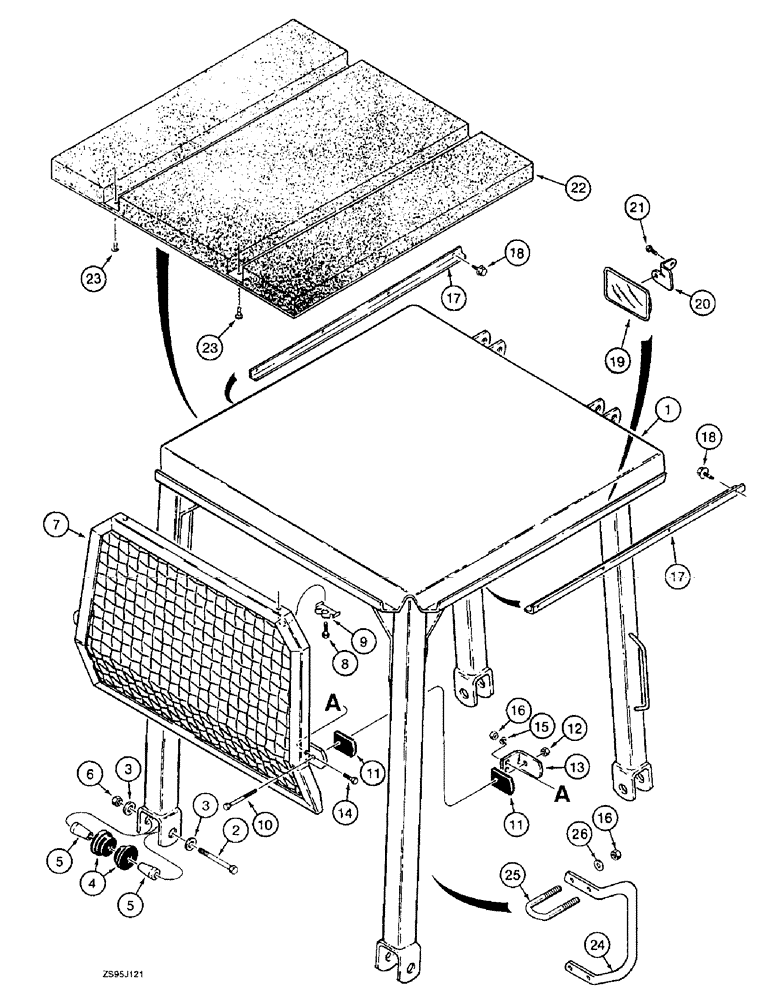

Запчасти Case 550E (9-34) - ROLLOVER PROTECTIVE STRUCTURE, CANOPY (09) - CHASSIS/ATTACHMENTS

1

R58392

ROPS

CANOPY - ROPS

1шт.

2

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

- hex, 3/4 NC x 6 inch

4шт.

3

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- flat, special

8шт.

4

F44212

MOUNTING PARTS

INSULATOR - rubber

8шт.

5

F44211

BUSHING,19.46mm ID x 38.1mm OD x 53.85mm L

- insert

8шт.

6

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

4шт.

7

R48279

GUARD

SCREEN - rear

1шт.

8

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

9

R38226

LOCK WASHER

- special tab locking

2шт.

10

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex, 1/2 NC x 5 inch

2шт.

11

R40074

CUSHION ASSY.

CUSHION - rubber, screen, mounting

4шт.

12

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

2шт.

13

R40921

CLAMP

- rear screen

2шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

15

492-11038

LOCK WASHER,3/8"

4шт.

16

425-106

NUT,3/8"-16, Cl 5

12шт.

17

R58402

ANGLE BAR

BRACKET - headliner retaining

2шт.

18

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch

8шт.

19

L74714

MIRROR

- rear view, includes mounting hardware

1шт.

20

101800A1

BRACKET

- mirror mounting

1шт.

21

160-100

BOLT,Hex, 3/8" - 16 x 5/8", Gr 8, Full Thd

Use with Loctite 242 Hex Flg, 3/8"-16 x 5/8", G8, Full Thd

1шт.

22

R48301

NOISE PROTECTION

HEADLINER - ROPS canopy roof, vinyl covered

1шт.

23

151-706

CLIP,Rd 7/8" Hd, 1/4" Hole

RETAINER - black, plastic, 1/4 hole size x 7/8 inch head dia, used as retainer for ROPS canopy headliner

8шт.

24

108453A1

HANDLE

- grab, wide track units only

2шт.

25

110435A1

U-BOLT

- 3/8 inch

4шт.

26

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

8шт.

345-44

ADHESIVE

- spray can, 3M No. 74, 23 ounce, buy locally

1шт.
