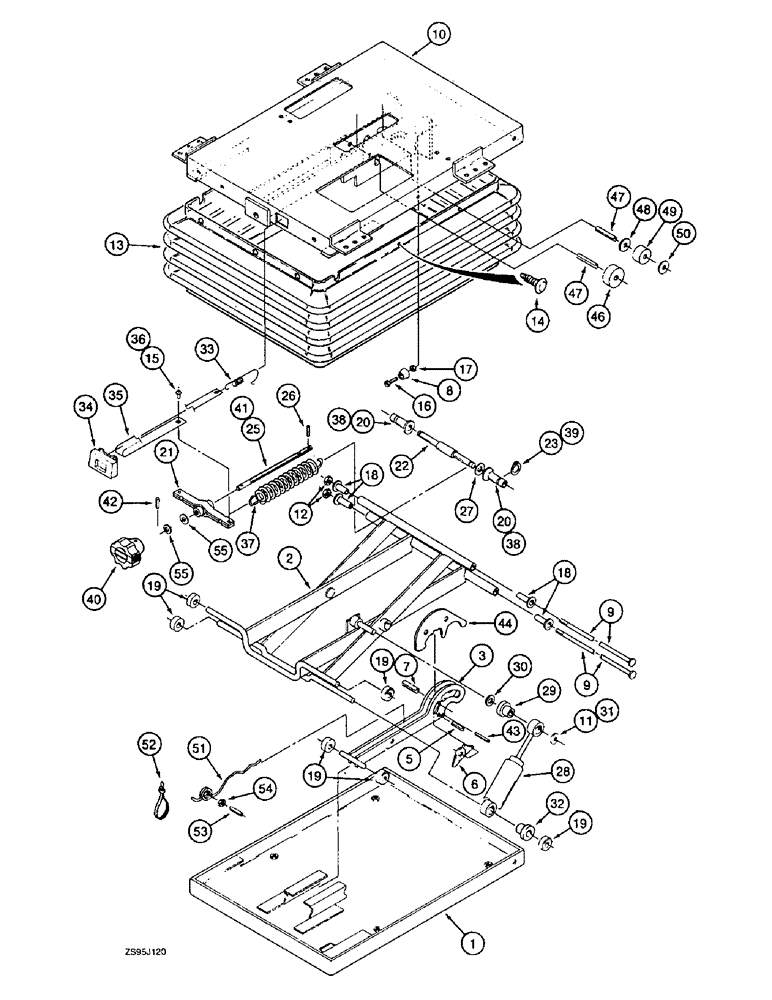

Запчасти Case 550E (9-30) - SEAT ASSEMBLY, WITH SUSPENSION (09) - CHASSIS/ATTACHMENTS

1340220C2

SEAT ASSY.

SEAT ASSEMBLY - suspension, brown, also includes parts on figures 9-28

1шт.

1981819C2

PACKAGE

KIT - seat suspension

1шт.

1

1981787C1

CASE

HOUSING - lower

1шт.

2

1981789C1

DIPPER

ARM - suspension

1шт.

119001A1

ARMREST ASSY.

ARM ASSEBLY - cam

1шт.

3

1981792C1

ARM

- mounting

1шт.

4

NSS

NOT SOLD SEPARAT

RIVET - solid, 5/32 x 7/8 inch, not shown

1шт.

5

NSS

NOT SOLD SEPARAT

PIN - grooved, 7/32 x 3/4 inch

1шт.

6

1981801C1

LATCH

- seat

1шт.

7

NSS

NOT SOLD SEPARAT

PIN - roll, 3/16 x 3/4 inch

1шт.

8

1981793C1

BUMPER

- seat

2шт.

9

A49529

SHAFT

- bushing tube

2шт.

10

1981821C1

HOUSING

- upper

1шт.

11

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

2шт.

12

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.

1981786C1

KIT

- boot, suspension

1шт.

13

NSS

NOT SOLD SEPARAT

BOOT - suspension

1шт.

14

700709502

FASTENER

PIN - retaining, package of 24

1шт.

15

151-537

RIVET,Pop, 1/8" x .650"

- break mandrel, 1/8 x 5/8 inch

1шт.

16

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

- machine, pan Phillips, No. 10 NC x 5/8 inch

2шт.

17

230-42409

NUT,#10-24, GA

NUT - hex, self-locking, No. 10 NC

2шт.

1344249C1

KIT

KIT - roller tube and bearing

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - roller, suspension

4шт.

19

NSS

NOT SOLD SEPARAT

BEARING - tube

6шт.

1987116C2

PACKAGE

KIT - weight adjustment

1шт.

20

NSS

NOT SOLD SEPARAT

BUSHING - spring

2шт.

21

NSS

NOT SOLD SEPARAT

BAR - weight adjustment

1шт.

22

128115A1

SHAFT

- spring

1шт.

23

NSS

NOT SOLD SEPARAT

RING - retaining

2шт.

24

NSS

NOT SOLD SEPARAT

NUT - adjusting

1шт.

25

NSS

NOT SOLD SEPARAT

SHAFT - weight adjusting

1шт.

26

NSS

NOT SOLD SEPARAT

PIN - roll

1шт.

27

NSS

NOT SOLD SEPARAT

SPACER - weight adjusting

1шт.

1344250C2

KIT

- shock absorber

1шт.

28

1343998C1

KIT

ABSORBER - shock, seat

1шт.

29

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

BEARING - shock absorber, upper

2шт.

30

A45519

WASHER

- flat, plastic, special, 33/64 x 1-1/8 x 1/16 inch

1шт.

31

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

2шт.

32

NSS

NOT SOLD SEPARAT

BEARING - suspension shock absorber, lower

1шт.

1999901C2

PACKAGE

KIT - weight adjusting guide

1шт.

33

NSS

NOT SOLD SEPARAT

SPRING - height adjustment

1шт.

34

NSS

NOT SOLD SEPARAT

GUIDE - weight adjustment

1шт.

35

NSS

NOT SOLD SEPARAT

TAPE - weight adjustment

1шт.

36

151-537

RIVET,Pop, 1/8" x .650"

- break mandrel, 1/8 x 5/8 inch

1шт.

123968A1

PACKAGE

KIT - weight adjustment

1шт.

37

NSS

NOT SOLD SEPARAT

SPRING - extension

1шт.

38

NSS

NOT SOLD SEPARAT

SPRING - bushing

2шт.

39

NSS

NOT SOLD SEPARAT

RING - retaining

2шт.

KIT - knob and shaft assembly

1шт.

40

118578C1

BUTTON

KNOB ASSEMBLY - weight adjusting, includes handle and decals, which are not serviced separately

1шт.

41

NSS

NOT SOLD SEPARAT

SHAFT - weight adjusting

1шт.

42

NSS

NOT SOLD SEPARAT

PIN - roll

1шт.

123967A1

PACKAGE

KIT - cam follower

1шт.

43

NSS

NOT SOLD SEPARAT

PIN - cam follower

1шт.

44

1981799C1

BEARING, NEEDLE

CAM - low profile

1шт.

45

NSS

NOT SOLD SEPARAT

RING - retaining, not shown

2шт.

46

1981796C1

BEARING, NEEDLE

BEARING - cam follower

1шт.

47

NSS

NOT SOLD SEPARAT

PIN - cam follower

2шт.

48

1981796C1

BEARING, NEEDLE

BEARING - cam follower

1шт.

49

700712454

SPACER

- cam

2шт.

50

NSS

NOT SOLD SEPARAT

RING - retaining

4шт.

123966A1

PACKAGE

KIT - height adjustment

1шт.

51

NSS

NOT SOLD SEPARAT

SPRING - height adjustment

1шт.

52

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

53

NSS

NOT SOLD SEPARAT

PIN - roll

1шт.

54

NSS

NOT SOLD SEPARAT

SPACER - spring

1шт.

55

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.
