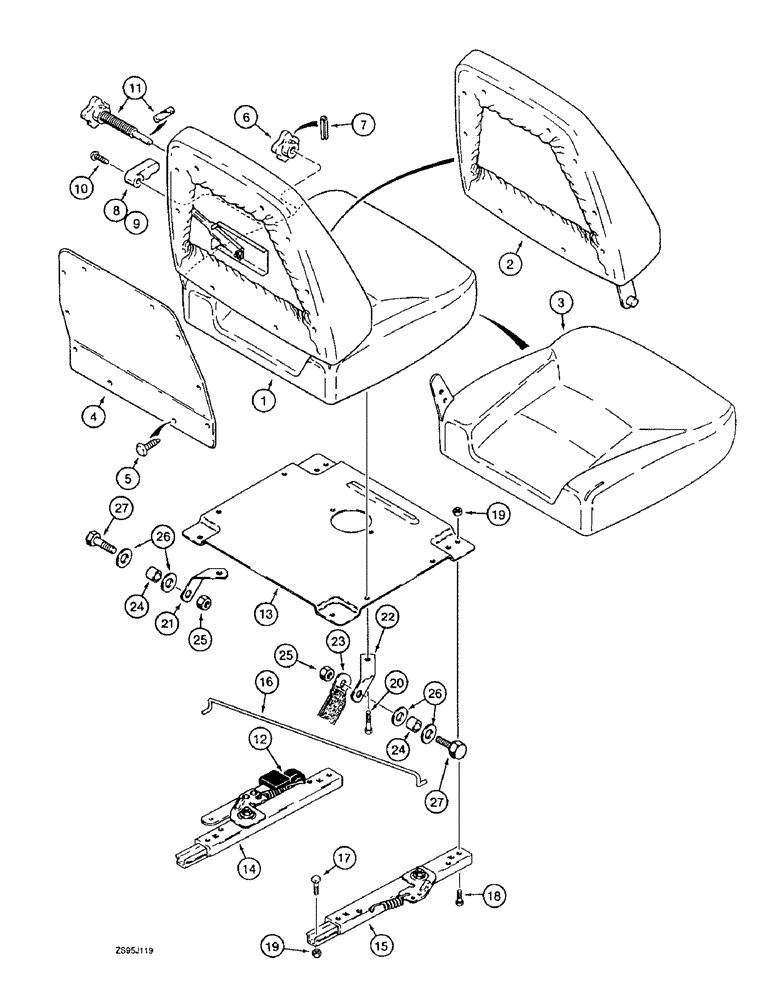

Запчасти Case 550E (9-26) - SEAT ASSEMBLY, WITHOUT SUSPENSION (09) - CHASSIS/ATTACHMENTS

*

All Brown Seats Sub to Gray

1шт.

1990984C1

SEAT

ASSEMBLY - non-suspension, brown, service replacement, contains additional parts not included in production seat

1шт.

1

1999727C3

SEAT ASSY.

CUSHION ASSEMBLY - seat backrest, with frame, brown

1шт.

2

138365A1

FRAME ASSY

CUSHION - backrest, with frame, brown

1шт.

2a

1999729C1

BACKREST COVER

PAD - backrest, with vinyl cover, not shown

1шт.

3

138366A1

FRAME ASSY

CUSHION - seat, with frame, brown

1шт.

3a

1999728C1

CUSHION

PAD - seat cushion, with vinyl cover, not shown

1шт.

3b

141566A1

LARGE PLATE

PLATE - reinforcement, seat frame to backrest frame, left hand, if used, not shown

1шт.

4

1981820C2

PACKAGE, REPAIR

KIT - backrest cover

1шт.

5

1999693C1

KIT

CLIP - christmas tree, package of 14

1шт.

1999691C1

PACKAGE,SERVICE

KIT - seat knob

1шт.

6

NSS

NOT SOLD SEPARAT

KNOB - lumbar adjustment

1шт.

7

38-31016

PIN,5/32" x 1", Coiled

2шт.

8

NSS

NOT SOLD SEPARAT

KNOB - back tilt cover

1шт.

9

NSS

NOT SOLD SEPARAT

HANDLE - recline

1шт.

10

NSS

NOT SOLD SEPARAT

SCREW - special

1шт.

11

NSS

NOT SOLD SEPARAT

KNOB - seat cushion tilt

1шт.

12

NSS

NOT SOLD SEPARAT

KNOB - fore / aft

1шт.

13

182991A1

LARGE PLATE

PLATE - adapter, replaces 136316A1

1шт.

1344248C1

SLIDE

KIT - double locking slide

1шт.

14

NSS

NOT SOLD SEPARAT

SLIDE - locking seat, with handle

1шт.

15

NSS

NOT SOLD SEPARAT

SLIDE - locking

1шт.

16

NSS

NOT SOLD SEPARAT

WIRE - slide latch

1шт.

17

417-512

BOLT,Sq Hd, 5/16" - 18 x 3/4", Gr 2

- square head, 5/16 NC x 3/4 inch, grade 2

4шт.

18

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

19

230-4225

LOCK NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

8шт.

20

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

1999806C1

KIT

- tether

1шт.

21

NSS

NOT SOLD SEPARAT

BRACKET - mounting, left-hand

1шт.

22

NSS

NOT SOLD SEPARAT

BRACKET - mounting, right-hand

1шт.

23

R57317

SAFETY BELT ,1.80" W x 10.50" L

Strap 1.80" W x 10.50" L

2шт.

24

NSS

NOT SOLD SEPARAT

SPACER - tether

2шт.

25

232-4117

LOCK NUT,7/16"-14, GC

NUT, LOCK, 7/16"-14, GC

2шт.

26

495-21063

WASHER,9/16"

- flat, 5/8 x 1-15/32 x 7/64 inch

4шт.

27

328-732

BOLT,Hex, 7/16" - 20 x 2", Gr 8

2шт.
