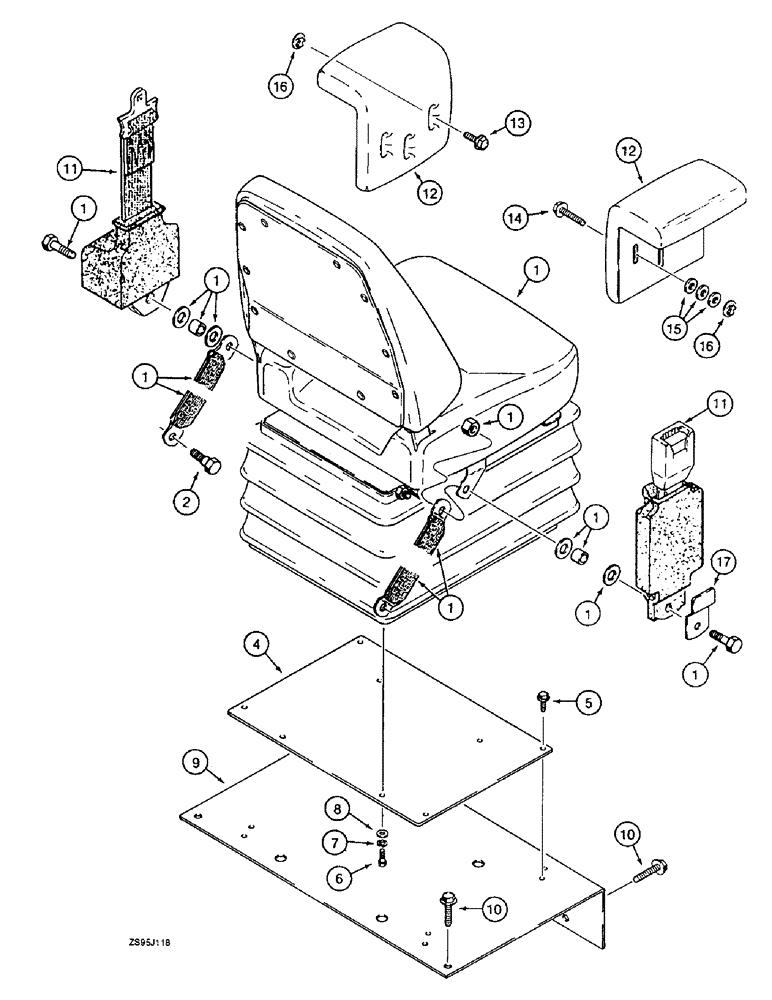

Запчасти Case 550E (9-24) - SUSPENSION SEAT MOUNTING, ARMRESTS, AND SEAT BELT (09) - CHASSIS/ATTACHMENTS

1

1340220C2

SEAT ASSY.

SEAT ASSEMBLY - suspension, brown, parts list figures 9-28 - 9-32

1шт.

2

F42236

STEP BOLT

BOLT - shoulder, 7/16 NF x 1-1/4 inch

2шт.

4

R58675

LARGE PLATE

PLATE - seat mounting

1шт.

5

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

4шт.

6

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

4шт.

7

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

4шт.

9

R58717

PLATE

SUPPORT - seat mounting plate, at seat and tank frame

1шт.

10

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

- hex flange, 1/2 NC x 1-1/4 inch, grade 8

6шт.

11

D150377

SAFETY BELT ,2.00" W

Retractable, If used 2.00" W

1шт.

11

R58418

SAFETY BELT ,3.00" W

Retractable, If used 3.00" W

1шт.

12

R58336

ARMREST

- cushion - Brown NLA

2шт.

13

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

3шт.

14

160-103

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

3шт.

15

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened, Used with item 14 bolt only, right-hand side, 3 used between armrest and each mounting location on hydraulic tank

9шт.

16

131-415

JAM NUT,Push, Bolt Retainer, 3/8" x 25/32"

6шт.

17

D150393

BRACKET

- inner support, used with D150377

1шт.
