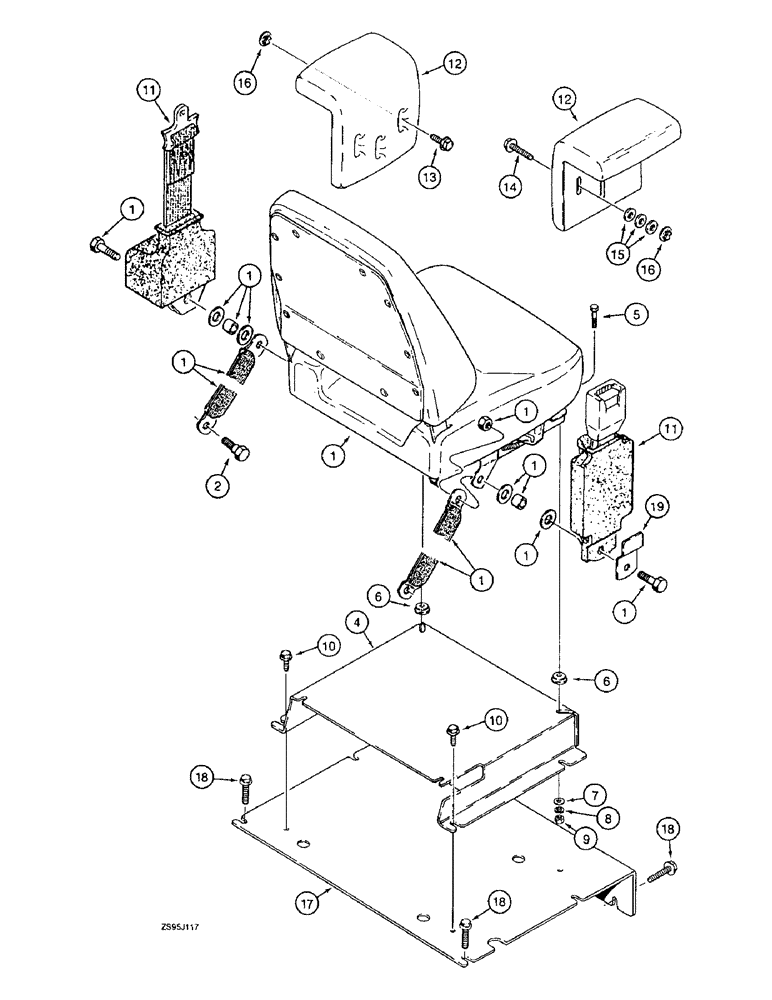

Запчасти Case 550E (9-22) - STANDARD SEAT MOUNTING, ARMRESTS, AND SEAT BELT (09) - CHASSIS/ATTACHMENTS

1

1990984C1

SEAT

ASSEMBLY - non-suspension, service replacement, contains additional parts not included in production seat, brown vinyl, parts list figure 9-26

1шт.

2

F42236

STEP BOLT

BOLT - shoulder, 7/16 NF x 1-1/4 inch

2шт.

4

R58831

SUPPORT

- seat mounting

1шт.

5

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

4шт.

6

A45111

SPACER

- cupped, front only

2шт.

7

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9

425-105

NUT,5/16"-18, G5

4шт.

10

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

4шт.

11

D150377

SAFETY BELT ,2.00" W

Retractable, If used 2.00" W

1шт.

11

R58418

SAFETY BELT ,3.00" W

Retractable, If used 3.00" W

1шт.

12

R58336

ARMREST

- cushion - Brown NLA

2шт.

13

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

3шт.

14

160-103

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

3шт.

15

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened, Used with item 14 bolt only, right-hand side, 3 used between armrest and each mounting location on hydraulic tank

9шт.

16

131-415

JAM NUT,Push, Bolt Retainer, 3/8" x 25/32"

6шт.

17

R58717

PLATE

SUPPORT - seat mounting, at seat and tank frame

1шт.

18

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

6шт.

19

D150393

BRACKET

- inner support used with D150377

1шт.
