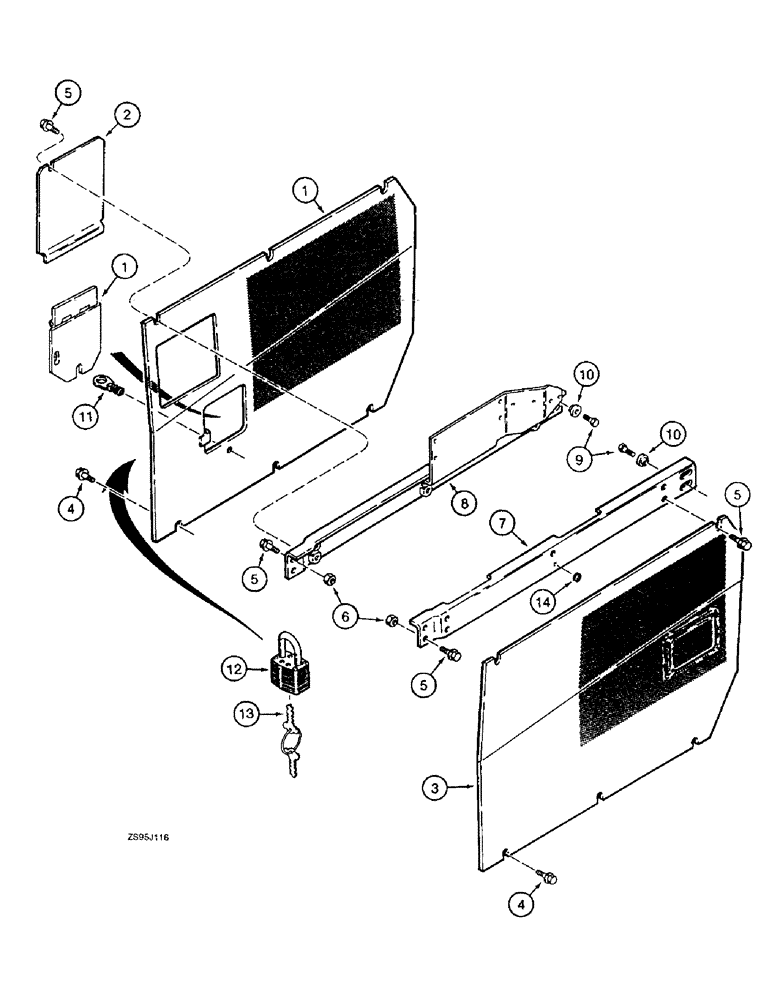

Запчасти Case 550E (9-20) - SIDE SHIELDS (09) - CHASSIS/ATTACHMENTS

1

R48058

PANEL

SHIELD - engine side, left-hand

1шт.

2

R48060

COVER

- left-hand side shield, air cleaner access

1шт.

3

R48061

PANEL

SHIELD - engine side, right-hand

1шт.

4

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

6шт.

5

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

9шт.

6

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

4шт.

7

R51790

SUPPORT

- side shield, right-hand

1шт.

8

R53116

SUPPORT

- side shield, left-hand

1шт.

9

413-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

- hex, 1/2 NC x 7/8 inch

4шт.

10

R54996

SPACER

- front mounting holes

4шт.

11

188029C1

LATCH

FASTENER - access door

1шт.

12

D93753

PADLOCK

- includes keys

1шт.

13

R29555

KEY

- for Master padlock only

2шт.

13

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

14

A161780

BUMPER

- rubber, right-hand support only

1шт.
