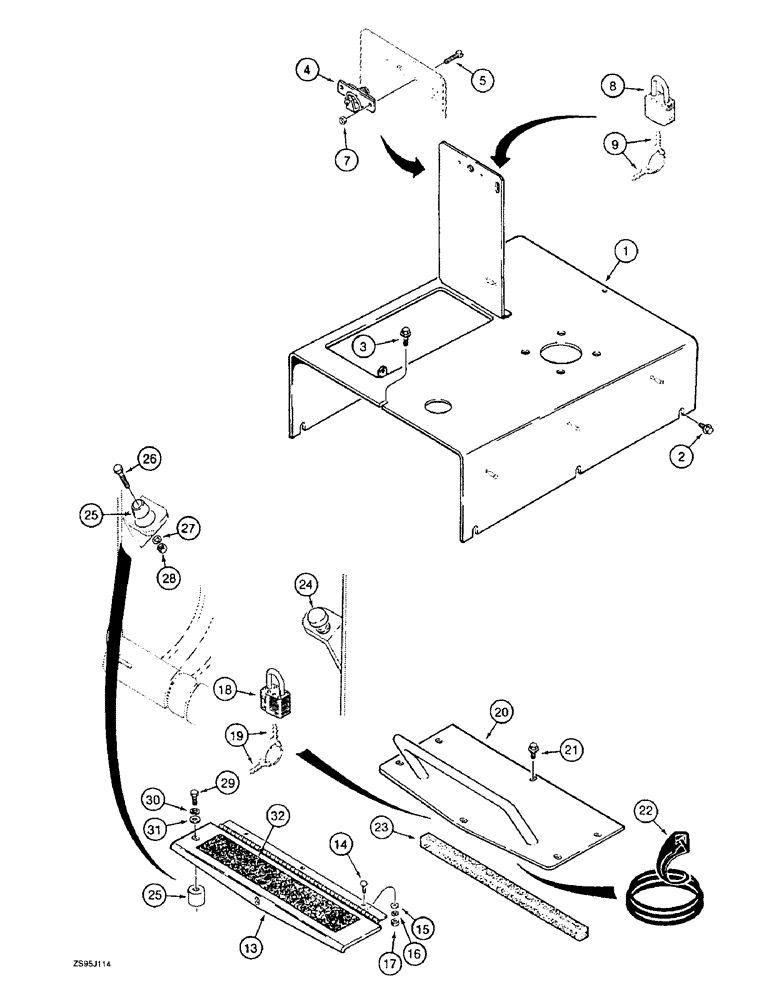

Запчасти Case 550E (9-16) - HOOD AND INSTRUMENT PANEL COVER (09) - CHASSIS/ATTACHMENTS

1

R46906

HOOD

- engine

1шт.

2

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

6шт.

3

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

1шт.

4

L102515

LATCH

FASTENER - air cleaner access door

1шт.

5

70-1108

SCREW,Pan HD, #10 - 24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch

2шт.

7

F45165

SPECIAL NUT,#10-24

NUT - lock, hex, No. 10 NC

2шт.

8

D93753

PADLOCK

- includes keys

1шт.

9

R29555

KEY

- for Master padlock only

2шт.

9

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

13

R58731

COVER

- instrument panel

1шт.

14

A42923

CARRIAGE BOLT

BOLT - carriage, special, 5/16 NC x 27/32 inch

3шт.

15

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

3шт.

16

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

17

425-105

NUT,5/16"-18, G5

3шт.

18

D93753

PADLOCK

- includes keys

1шт.

19

R29555

KEY

- for Master padlock only

2шт.

19

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

20

R58736

COVER

PLATE - hood extension, with grab handle

1шт.

21

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- hex flange, 3/8 NC x 3/4 inch, grade 8

5шт.

22

R58738

RUBBER

TRIM - edge, 23-1/4 inch (590 mm) long, hood extension plate

1шт.

23

R40035

PAD

- 21-1/2 (546) x 1 (25) x 1 inch (25 mm), cut from R30870 bulk pad, plate (546) x 1 (25) x 1 inch (25 mm), cut from R30870, see below

1шт.

24

R38089

CUSHION ASSY.

BUMPER - rubber, instrument panel cover

1шт.

25

R58735

HOLDER

RETAINER - hold open, instrument panel cover, includes socket and plunger

1шт.

27

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

28

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

29

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

1шт.

30

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

31

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

32

H332536

PAD

STRIP - anti-skid, on backside of instrument panel cover, see item 13

1шт.

R30870

PAD

- bulk, 54 (1372) x 72 (1829) x 1 inch (25 mm) thick

1шт.

345-44

ADHESIVE

- spray can, 3M No. 74, 23 ounce

1шт.

26

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.
