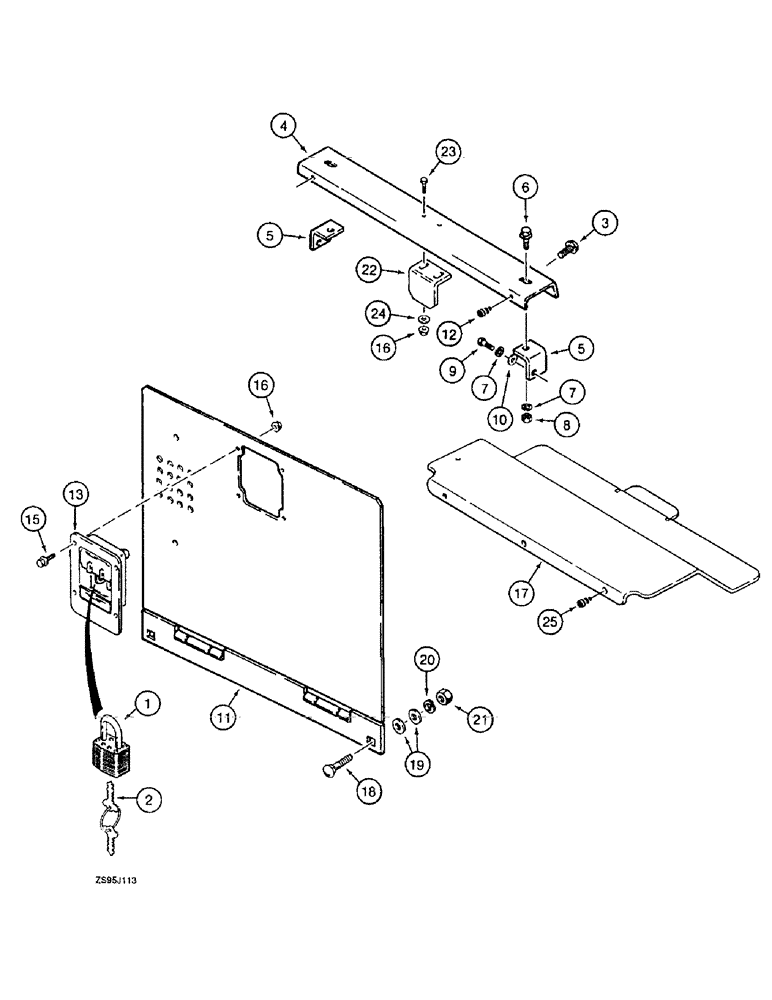

Запчасти Case 550E (9-14) - BATTERY COMPARTMENT AND REAR COVER (09) - CHASSIS/ATTACHMENTS

1

D93753

PADLOCK

- rear cover latch, includes keys, if used

1шт.

2

R29555

KEY

- for Master padlock only

2шт.

2

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

3

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

2шт.

4

R57059

COVER

BRACKET - cover mounting

1шт.

5

R48725

SUPPORT

BRACKET - mounting

2шт.

6

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

2шт.

7

492-11038

LOCK WASHER,3/8"

4шт.

8

425-106

NUT,3/8"-16, Cl 5

2шт.

9

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

10

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

11

R55501

COVER

- rear, hinged, see figure 9-38 items 5 and 14 for decals

1шт.

12

A161780

BUMPER

- rubber (item 4)

2шт.

13

R56221

LATCH

- rear cover

1шт.

15

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex flange, 1/4 NC x 3/4 inch

4шт.

16

231-5344

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

6шт.

17

R58789

COVER

- battery

1шт.

18

411-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 2

BOLT - carriage, 1/2 NC x 1-1/4 inch, grade 2

2шт.

19

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

4шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

21

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

22

R57058

SUPPORT

STRIKER - latch, rear cover latch

1шт.

23

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

24

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

2шт.

25

F22426

STOP

BUMPER - rubber, battery cover

3шт.
