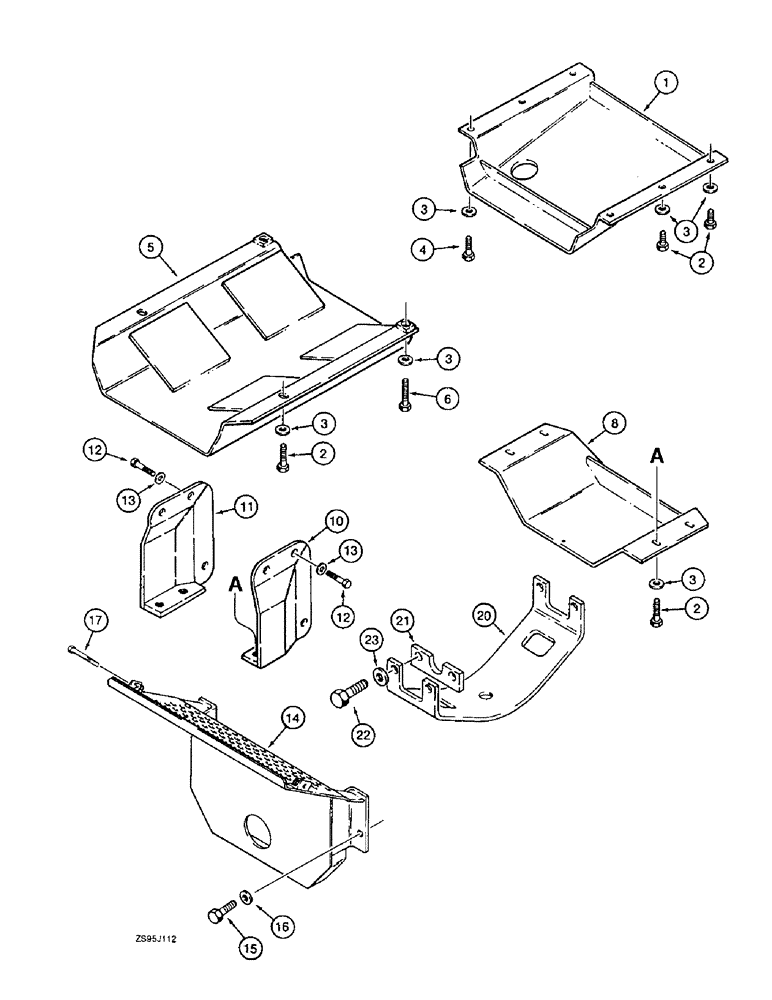

Запчасти Case 550E (9-12) - UNDERCARRIAGE GUARDS AND REAR TRANSMISSION GUARDS (09) - CHASSIS/ATTACHMENTS

1

R46842

GUARD

- front, engine

1шт.

2

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

8шт.

3

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, special, hardened

14шт.

4

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

4шт.

5

125071A1

SHIELD

GUARD - center, torque converter and transmission

1шт.

6

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch

2шт.

8

R52242

GUARD

- rear, transmission

1шт.

10

R58652

COVER

- side, transmission, right-hand

1шт.

11

R58653

COVER

- side, transmission, left-hand

1шт.

12

326-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

6шт.

13

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

6шт.

14

R47231

GUARD

- upper rear, transmission, used on models with no rear equipment, if used

1шт.

15

413-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

- hex, 3/4 NC x 1-1/4 inch

2шт.

16

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, special, hardened

2шт.

17

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

2шт.

20

R57675

GUARD

- final drive, do not use with rubber track

2шт.

21

R57676

SPACER

- to final drive

2шт.

22

326-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

Use with Loctite 242 Hex, 3/4"-10 x 2 3/4", G8

8шт.

23

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- flat, special, hardened

4шт.
